NEW 3,4
GHz EME setup
|
|
|
|
|
|
|
|

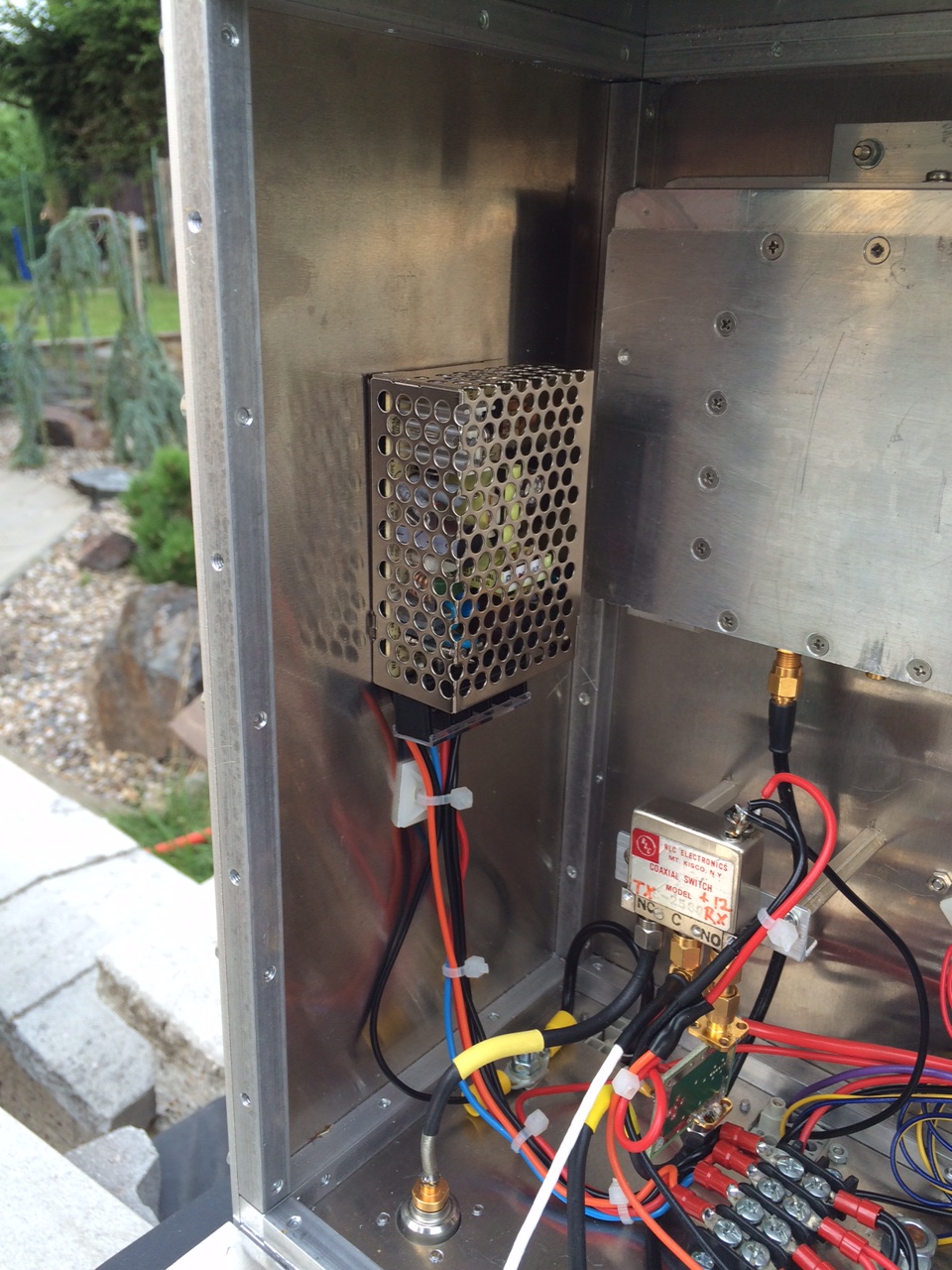

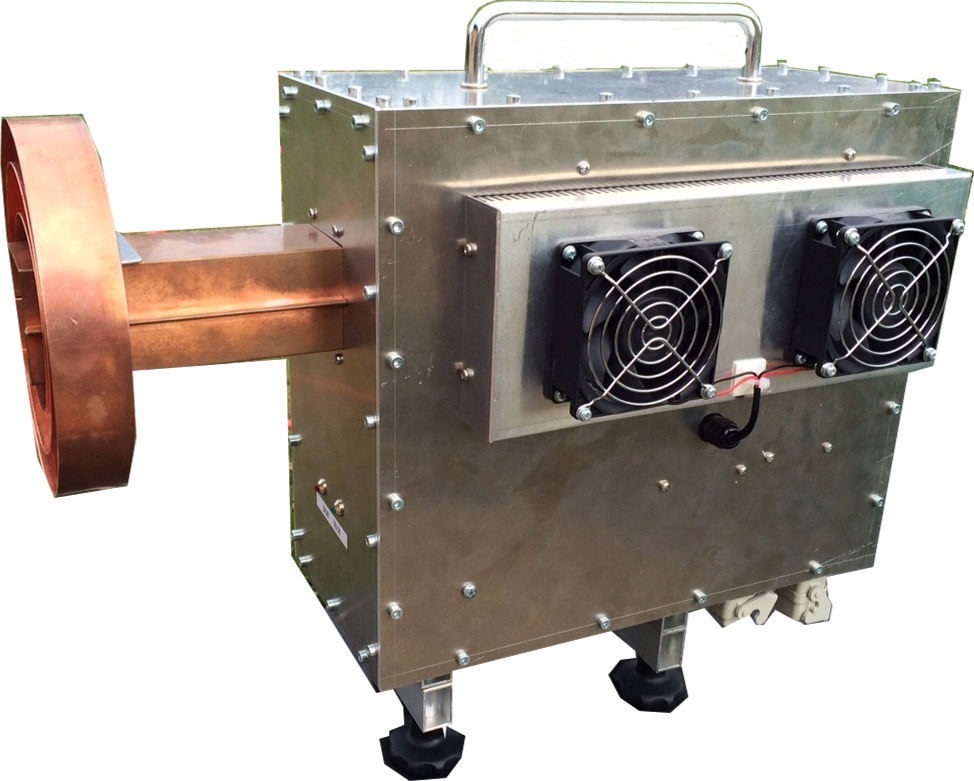

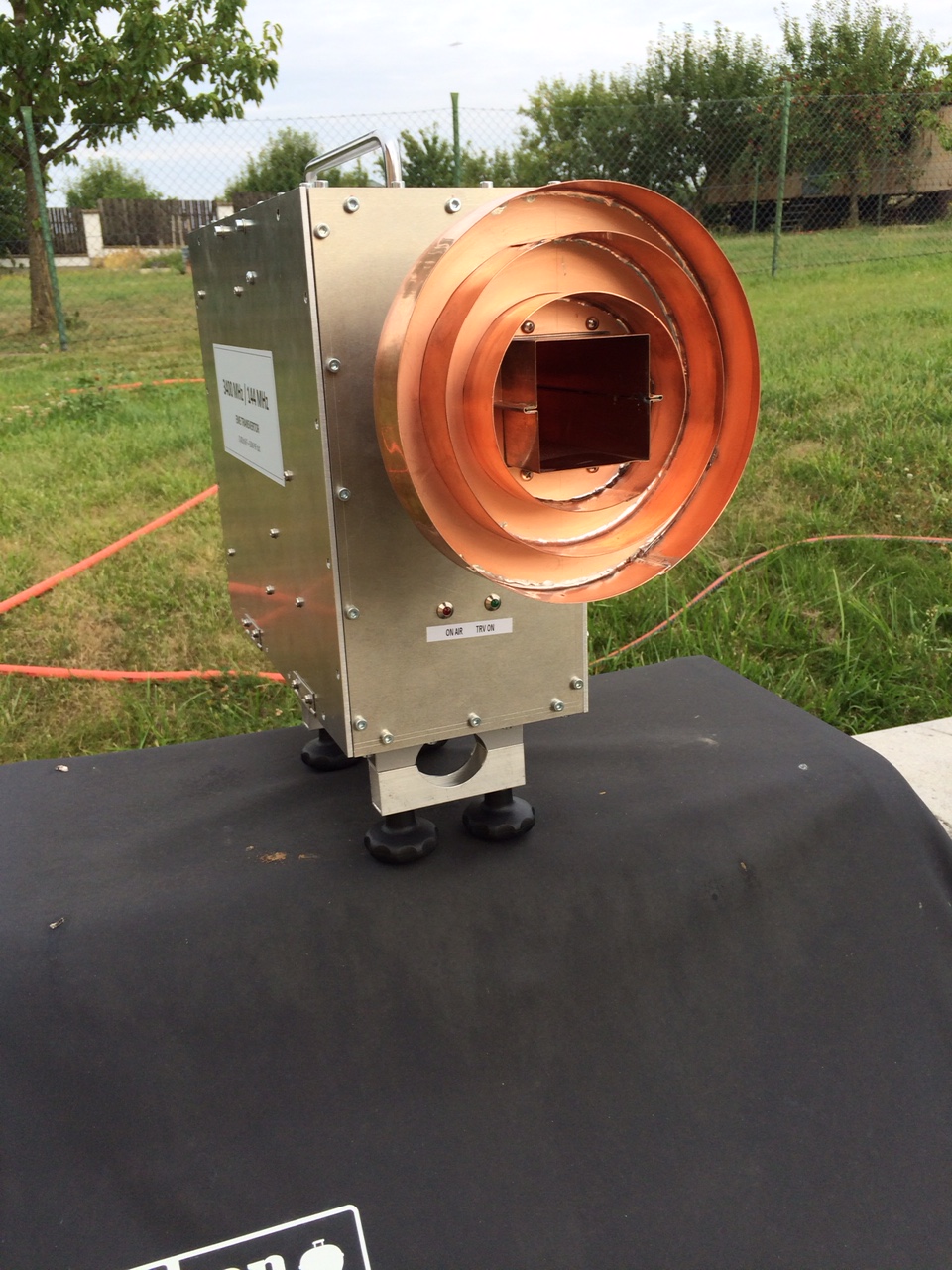

| TRV with septum feed and Chaparral ring | Inside of TRV, 28V DC / 12V DC power supply |
 |
|

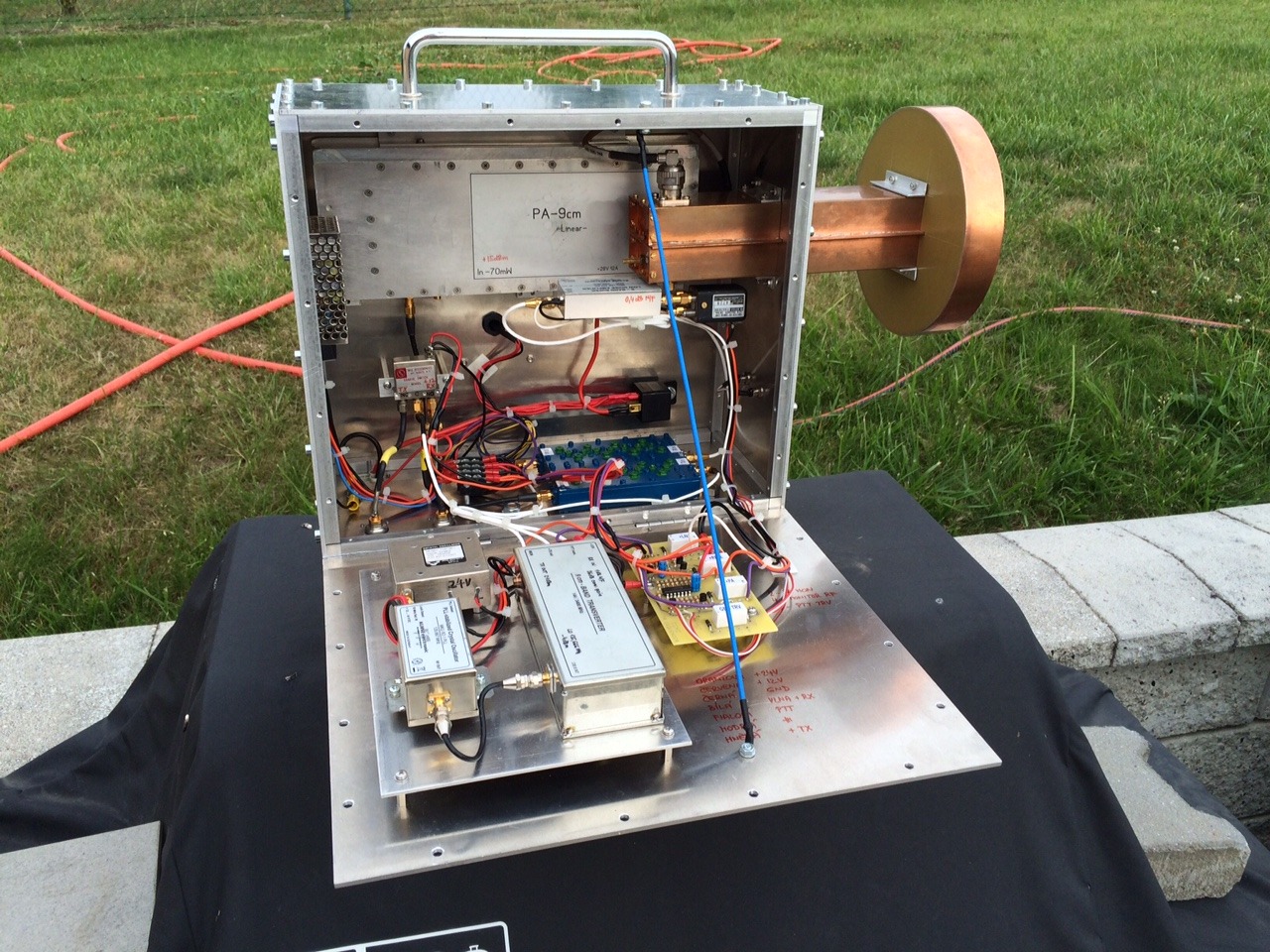

| TRV inside construction, TRV DB6NT 250 mW out, PLL LO and 10 MHz reference oscillator possible to switch in GPS normal. DB6NT VLNA 0,4dB N/F and isolation relay. SSPA and septum feed | |
 |
|
|

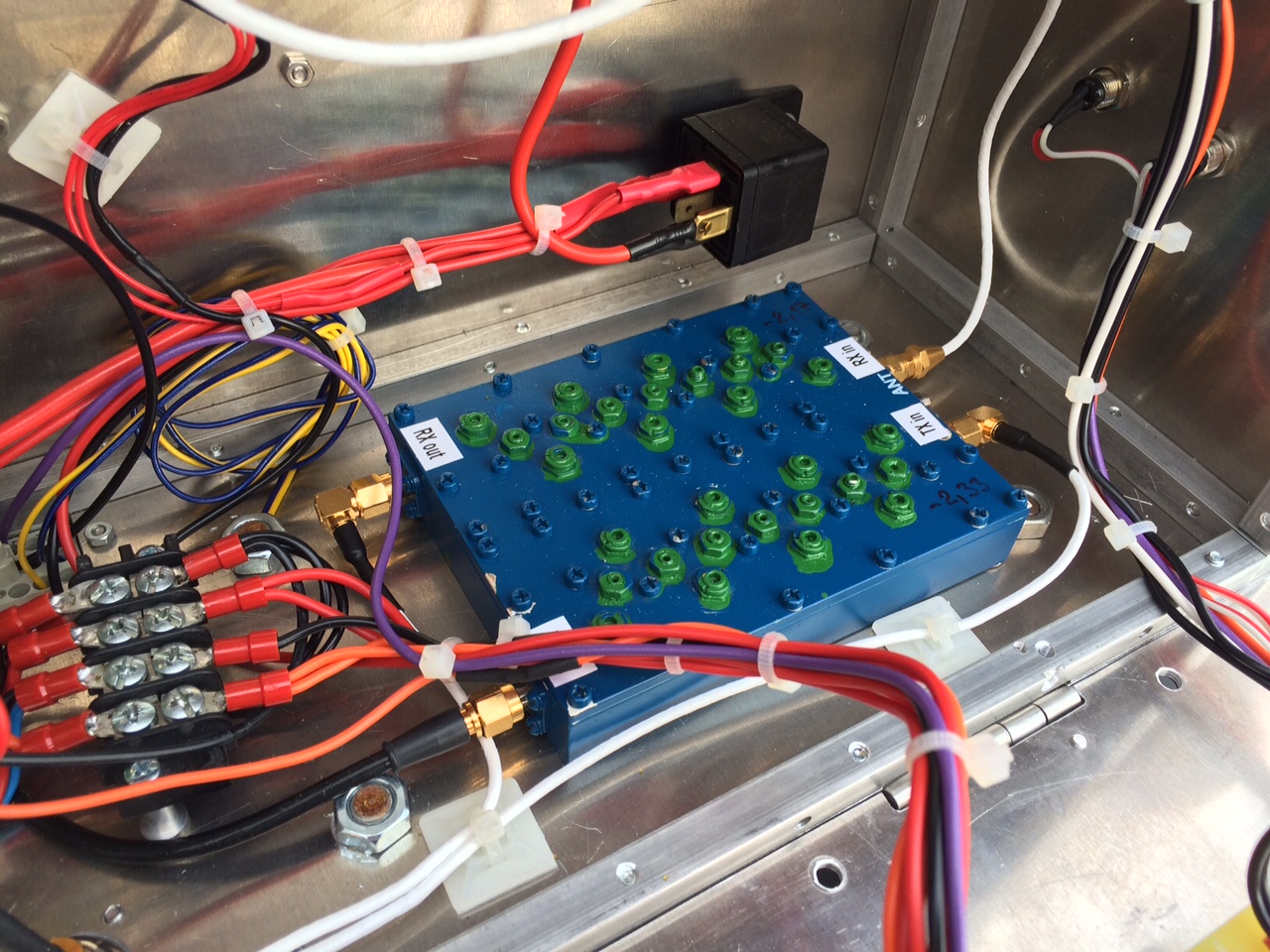

Dual cavity filter RX and TX |
|
 |
 |

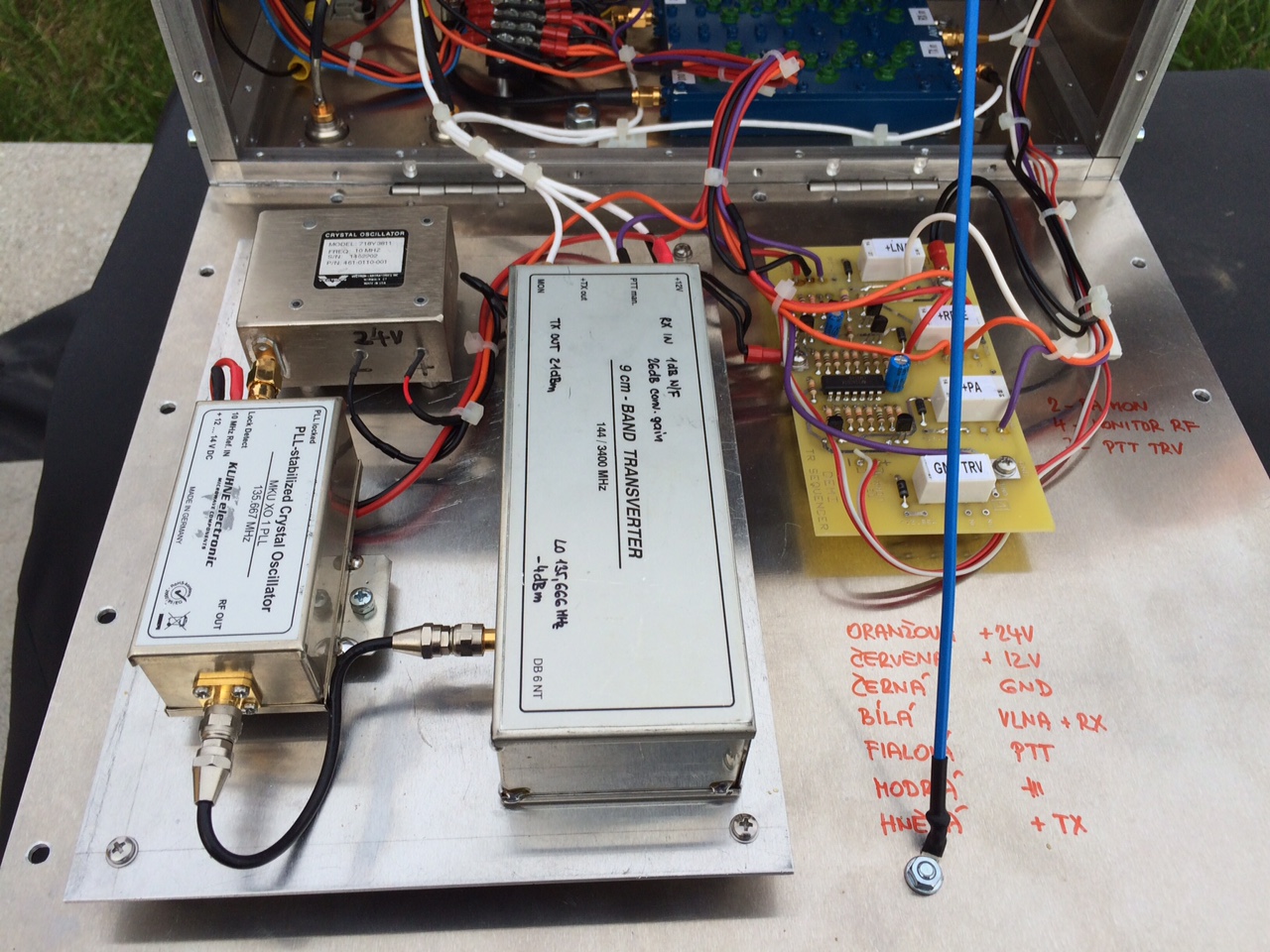

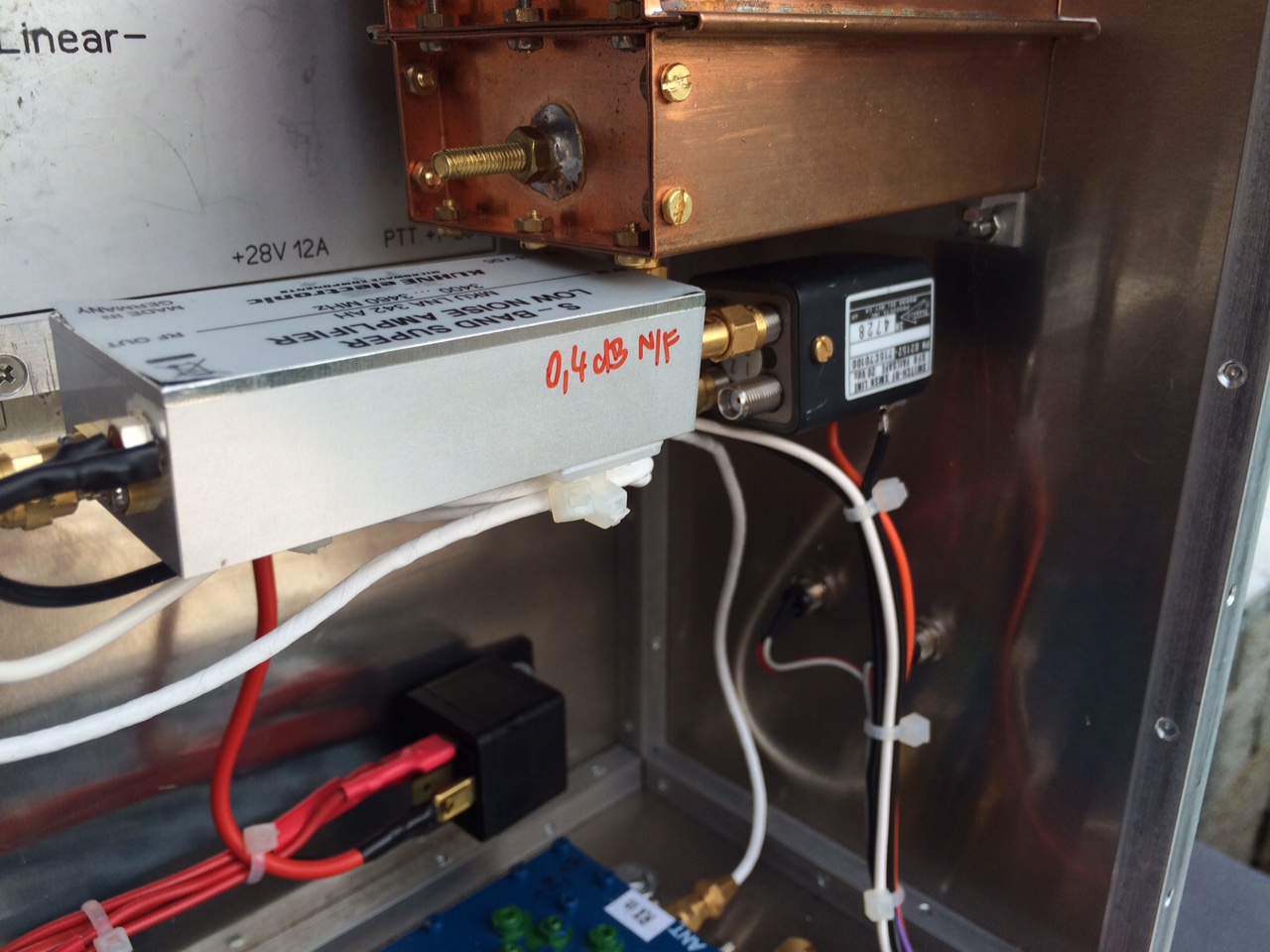

| TRV - PLL LO - 10 MHz normal and Sequencer | VLNA and isolation relay -60dB for RX way during TX period |
