OK1DFC
– 8m offset -
HUB
|
|
24/07/2021 |
 |
 |
|

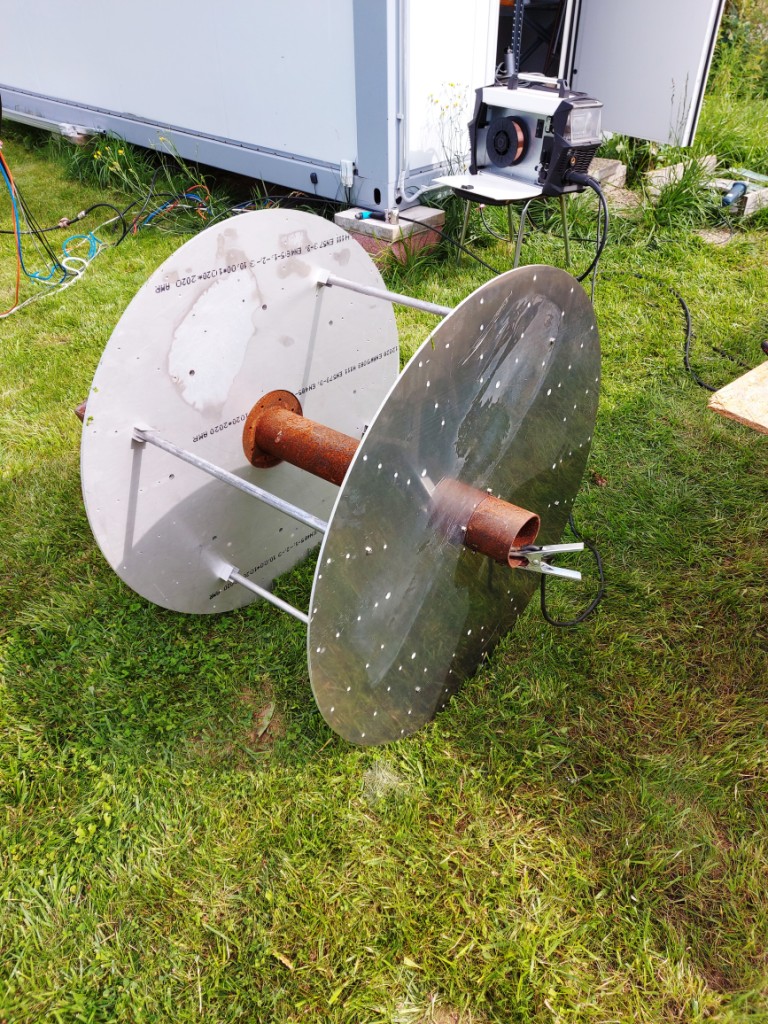

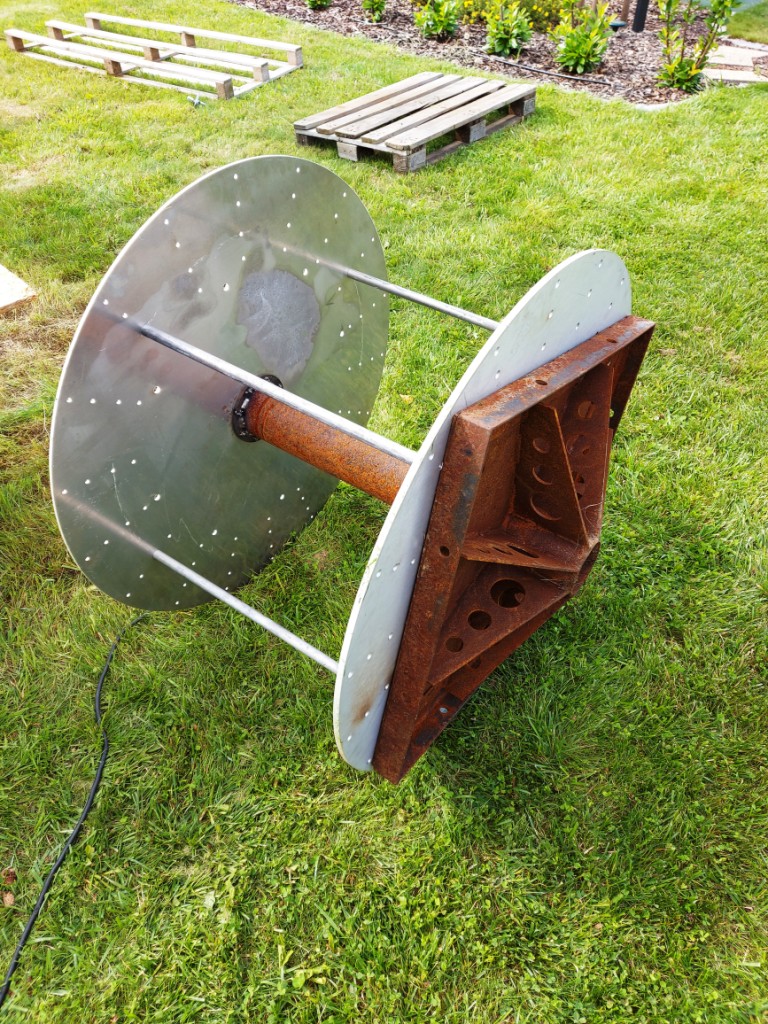

I test fitted the discs to the HUB and made the final
finishing touches to all the welds. I have taken the HUB for hot dip galvanizing
and next week the installation of the ribs and assembly of the 4m diameter inner
dish can begin. |
 |
 |
|

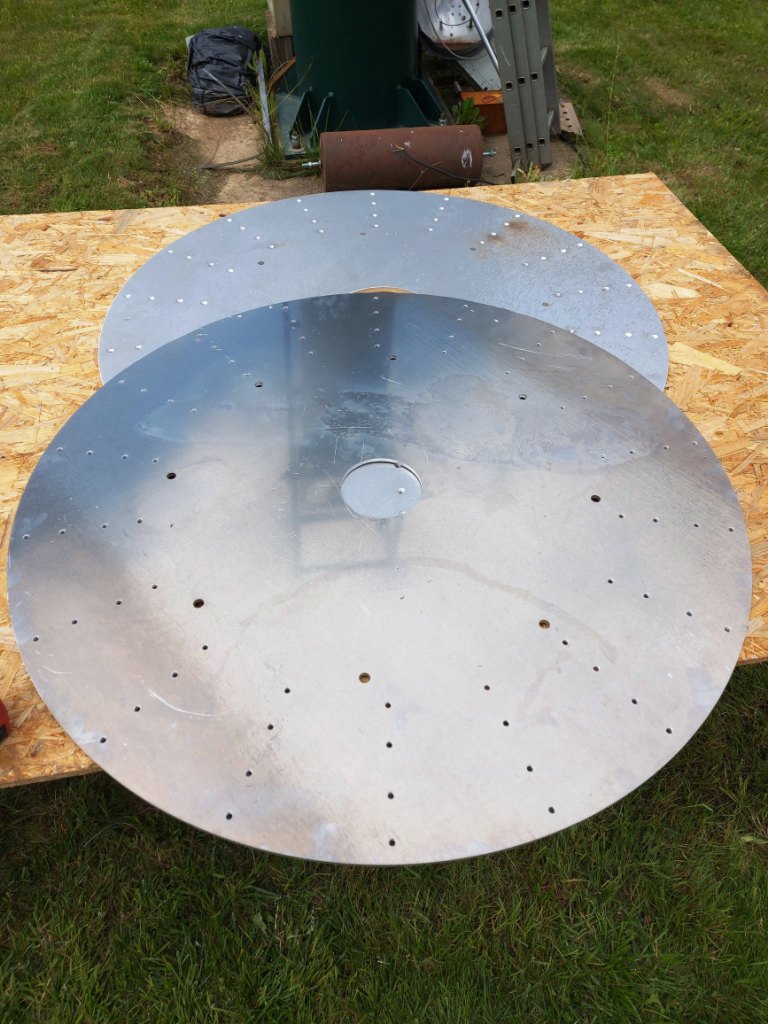

The production of the centre discs on the laser has been
secured. After the COVID pandemic, all materials are much more expensive and so
there has been a change in the production of the dish ribs. So the discs are

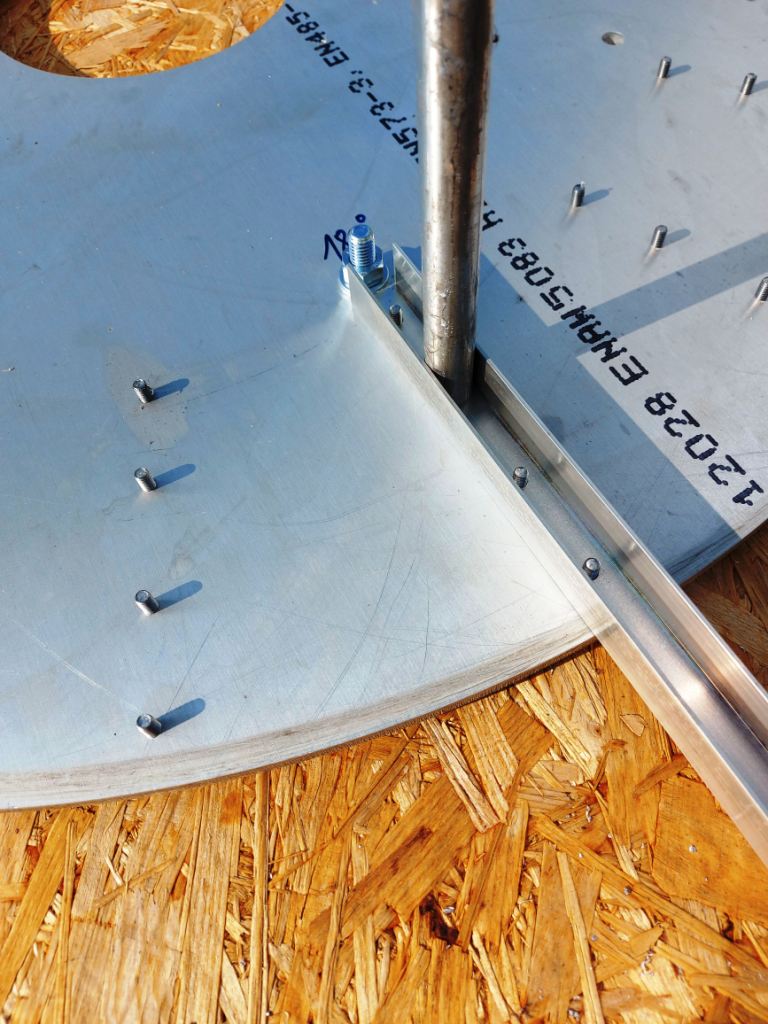

finished and I have already cut the threads and fitted the screws for the ribs
in the bottom plate. The top plate is also ready and the fabrication of the dish
ribs can begin. |
|
20/08/2020 |
 |
|

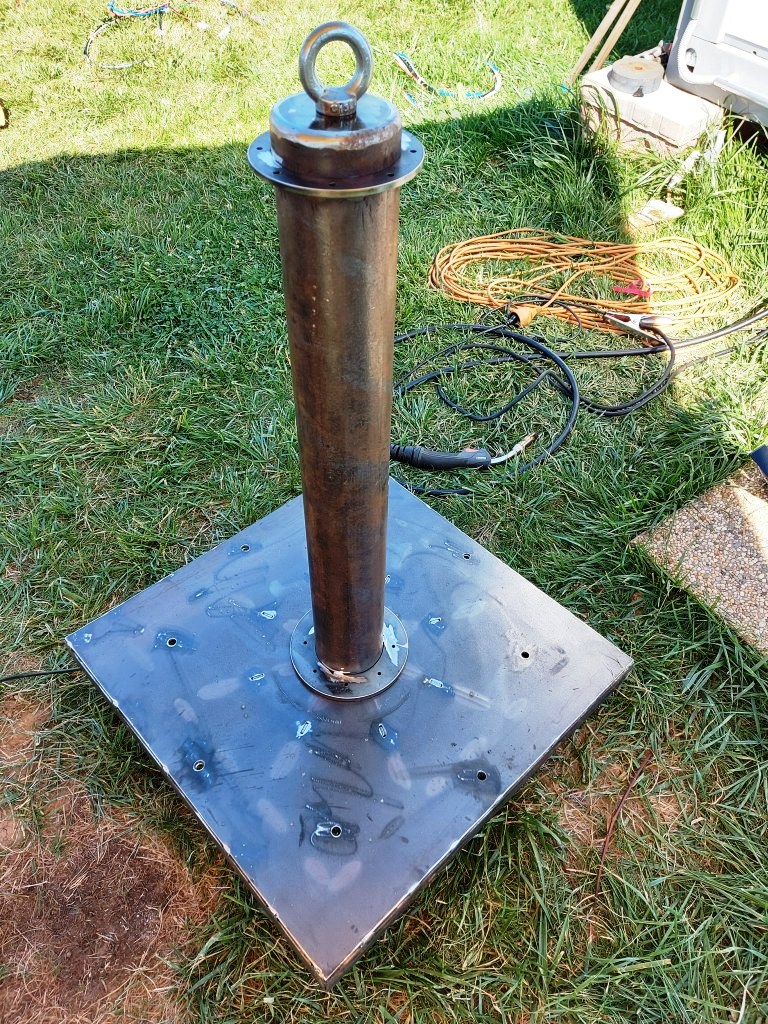

Central HUB pipe 116mm diameter |
 |
 |
|

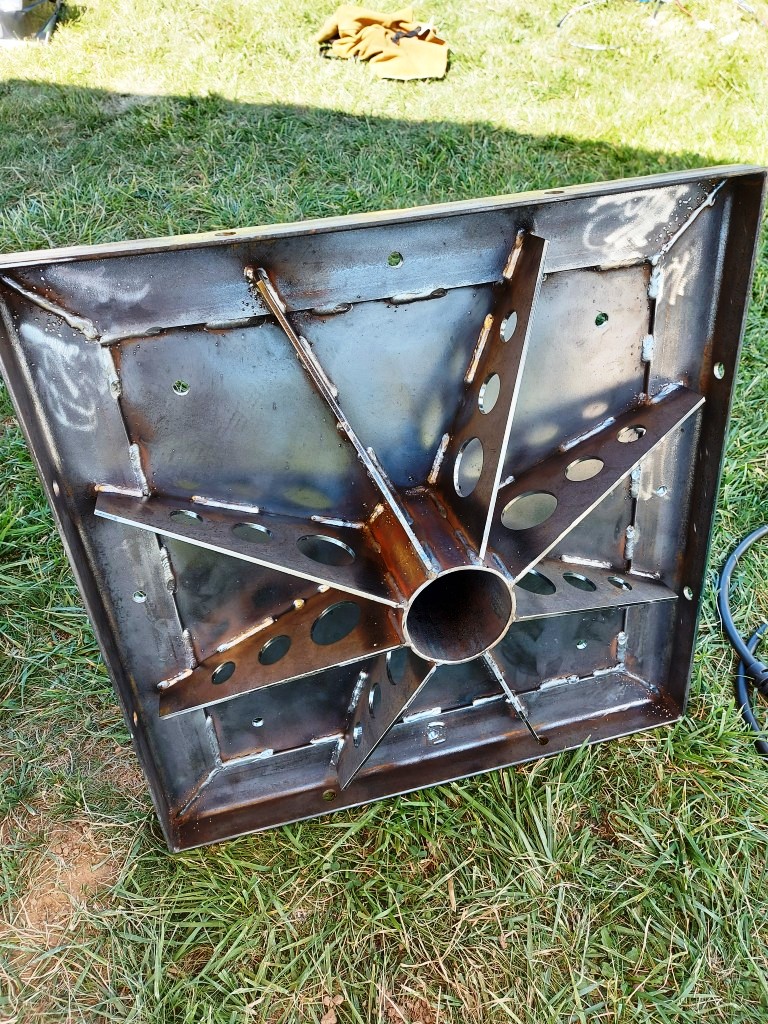

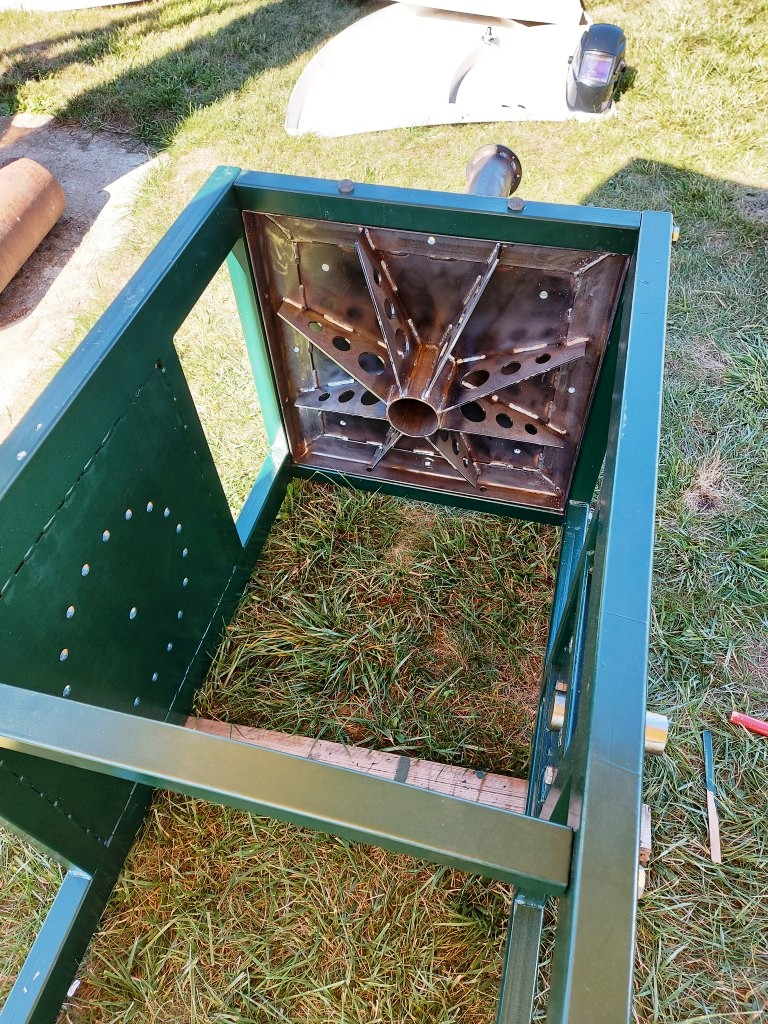

Central HUB of dish is welded and ready, just need hot zinc
surface protection and follow with ribs |
 |
|
Build of central HUB |
|
