Signal comparison
PE1HNG
|
Signal comparison |
|
| VE7BBG | |
|
|
|
|
|
|

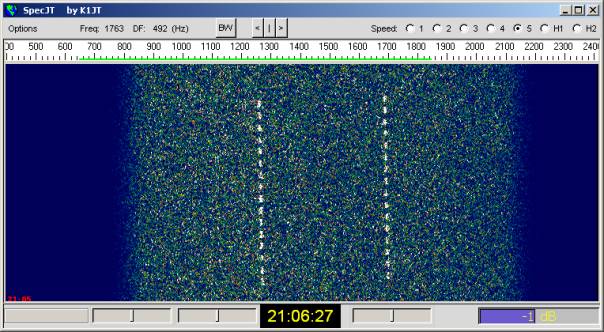

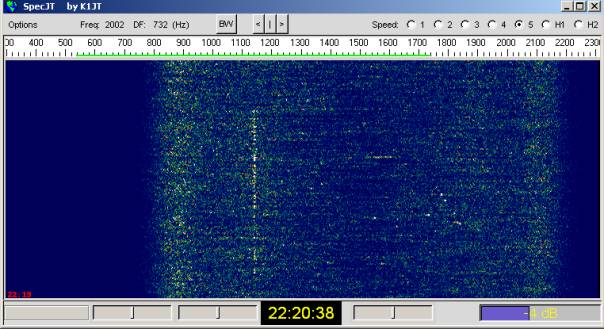

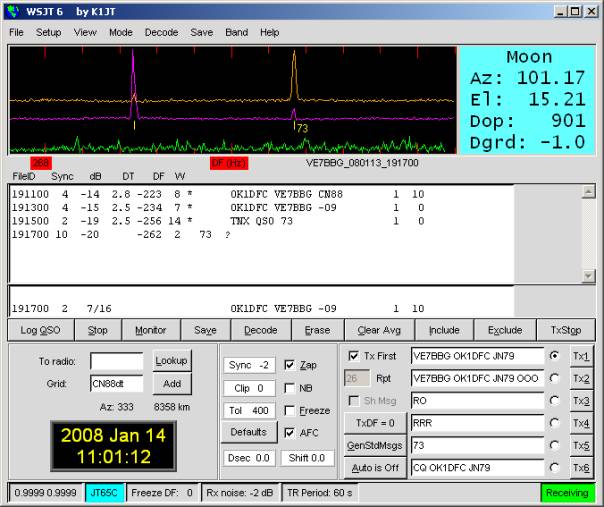

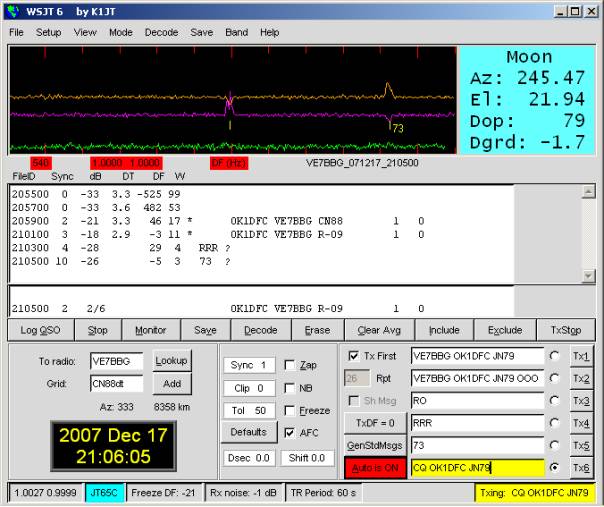

| Pictures in left column showing how looks received signal with old fashion LNA, old N-relay and used no-name connector reductions. Also control voltage of relay was close value when relay was not properly switch to RX position. Measured Sun noise around 14dB. | Pictures in right column showing how looks received signal with new VLNA-G4DDK design, new HP SMA relay and no using any connector reductions. Also control voltage of relay is coming now from new EME sequencer which is giving 15V-DC/5A. Measured Sun noise 19,8dB now. |
|
PE1HNG |
|
|
|
|

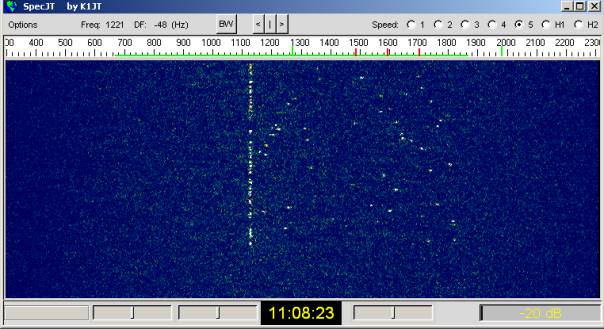

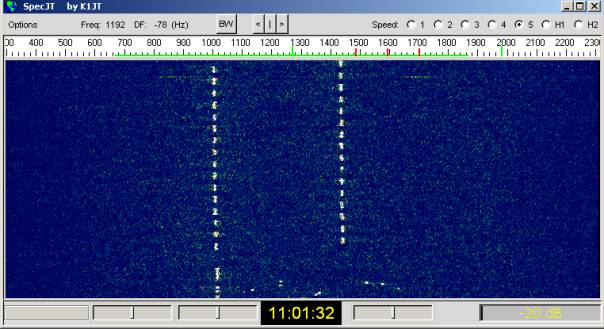

| This is signal from PE1HNG. -23db | This is signal from PE1HNG -17dB |
