SSPA 2320 MHz - 500W RF

01/05/2020

SSPA under test, 28V / 46A DC - 15dB gain - 57dBm output power

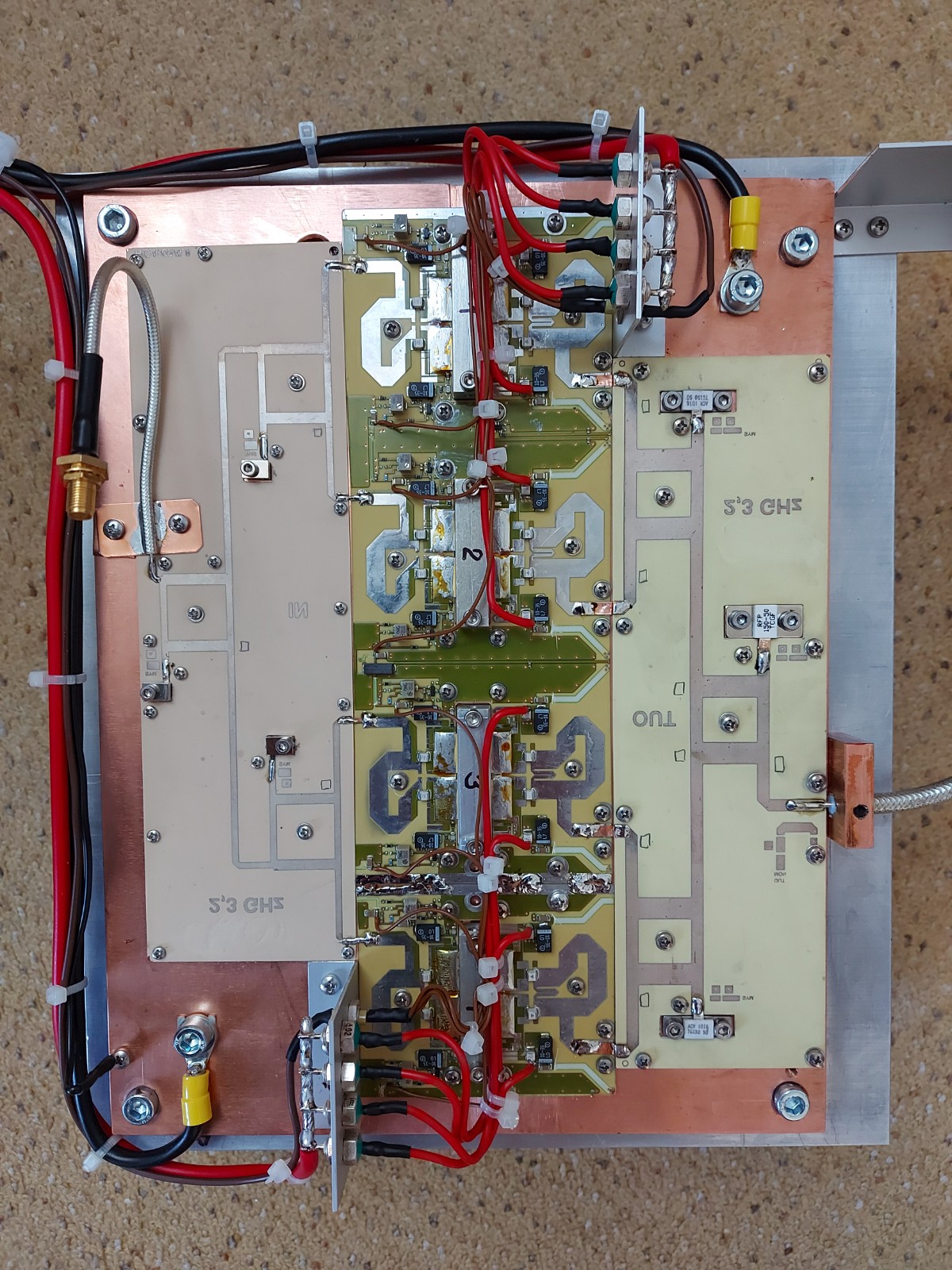

Combine PCB of SSPA tuned up to 2,3 GHz

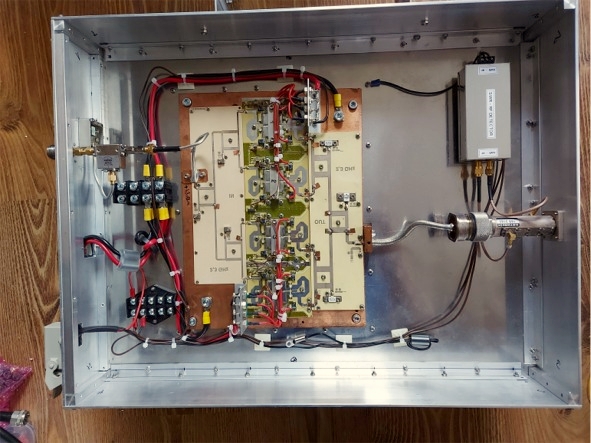

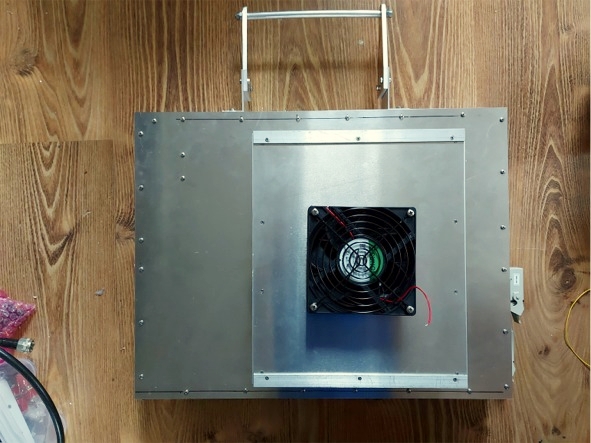

SSPA ready to use, building box to integrate feedhorn and LNA inside.

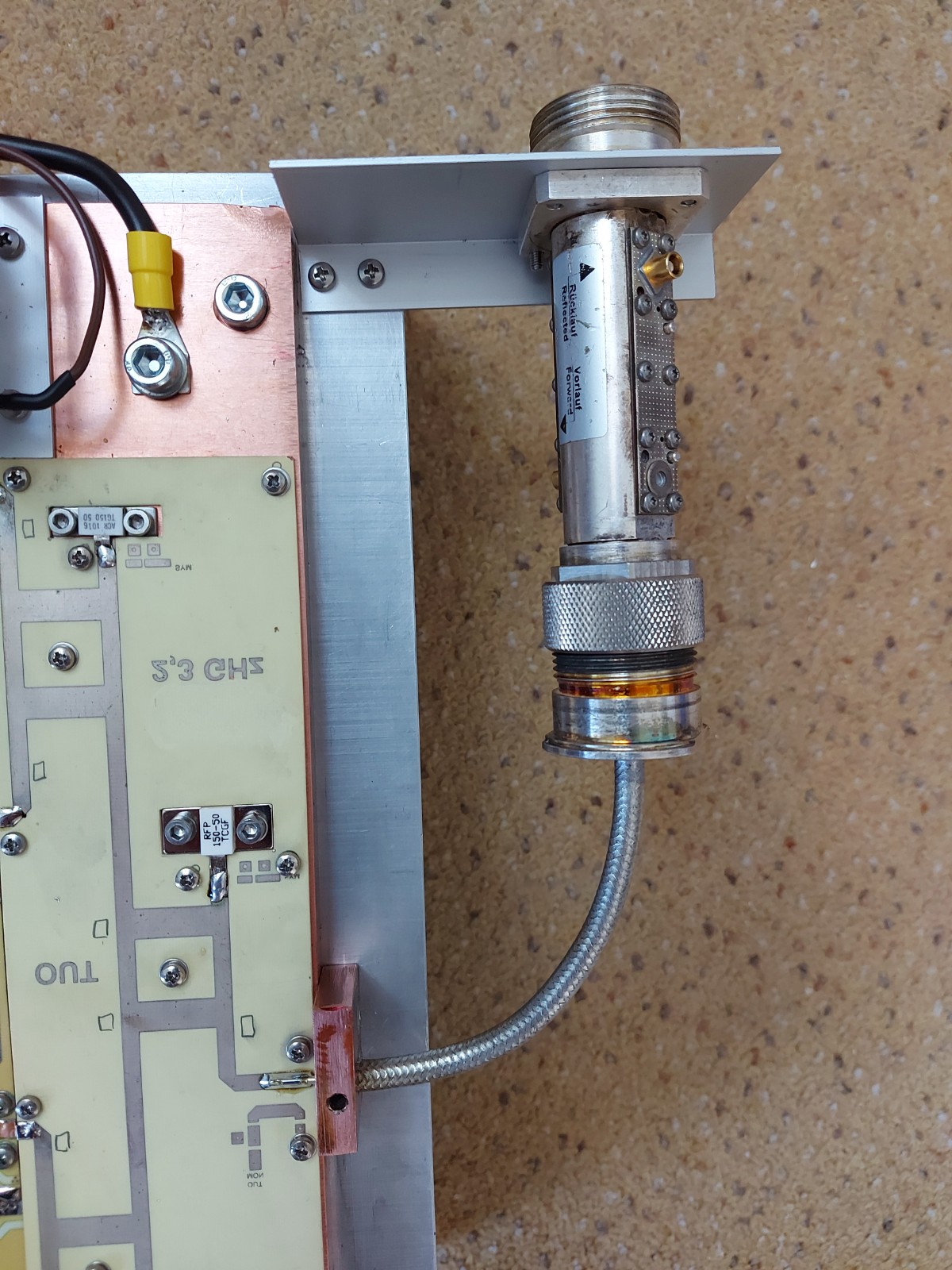

Directional coupler Kathrein for SWR  and RF output power measuring and protection control

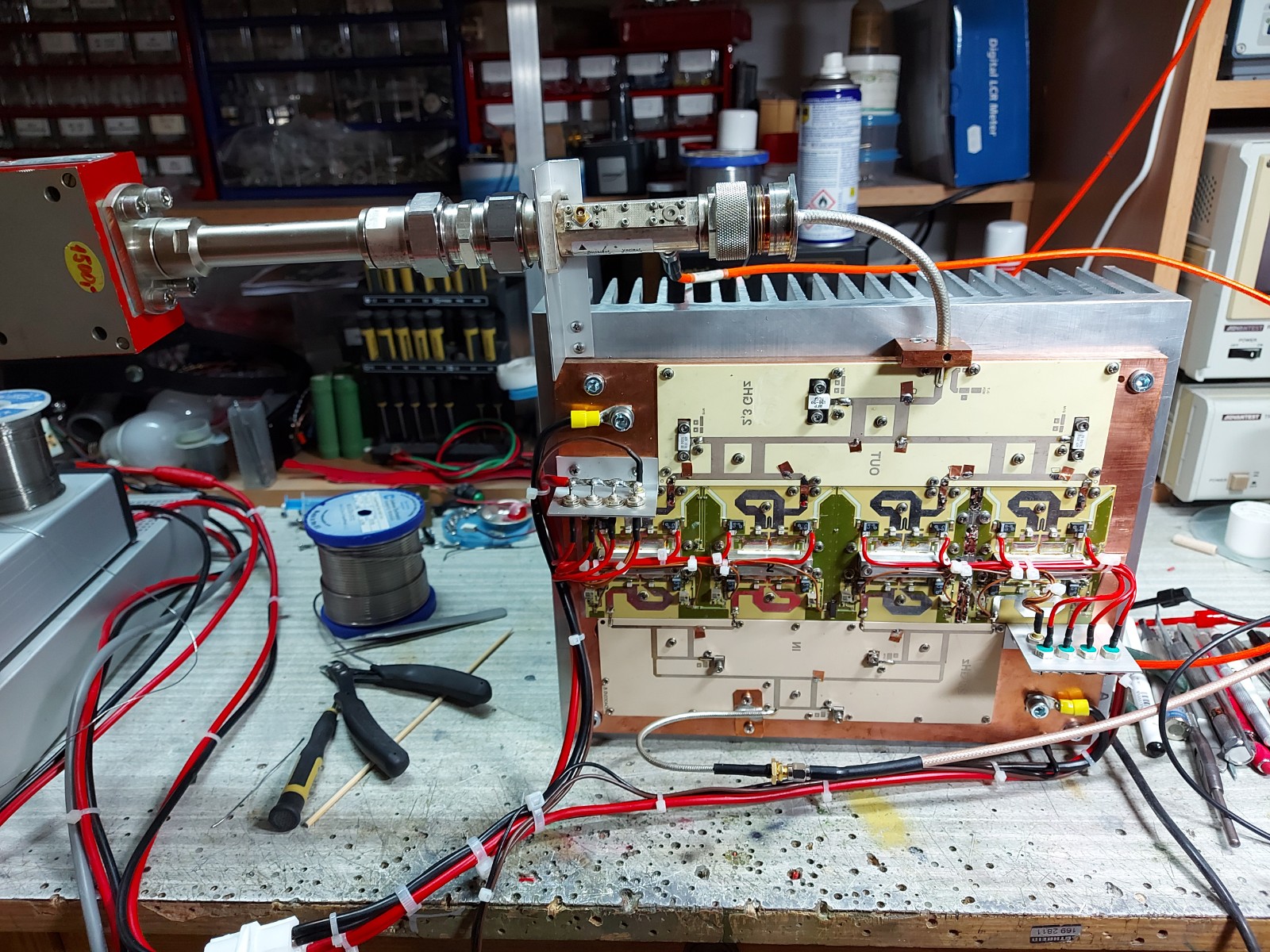

SSPA assembled

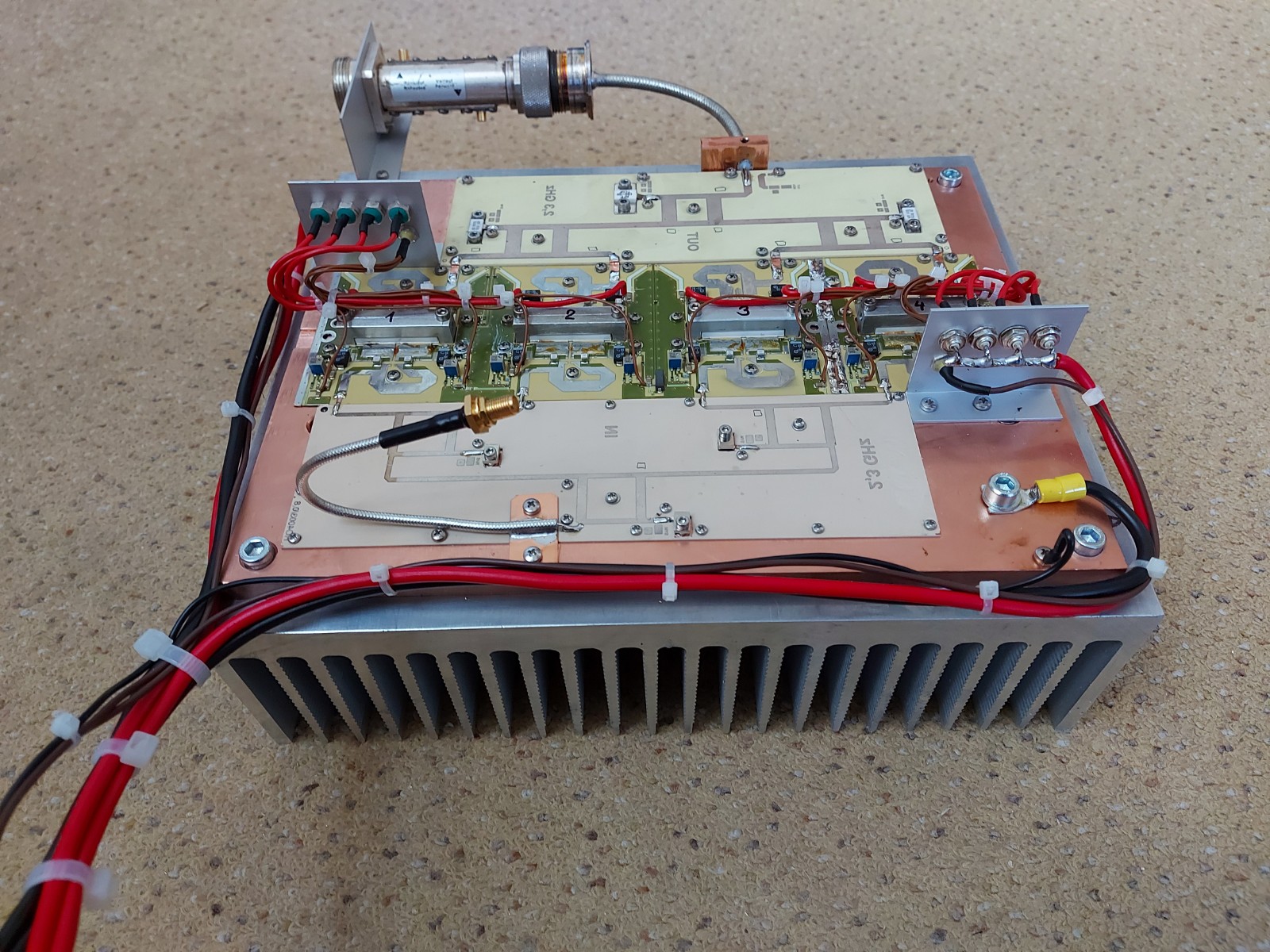

Wired final version of SSPA, need tune with taps combiner

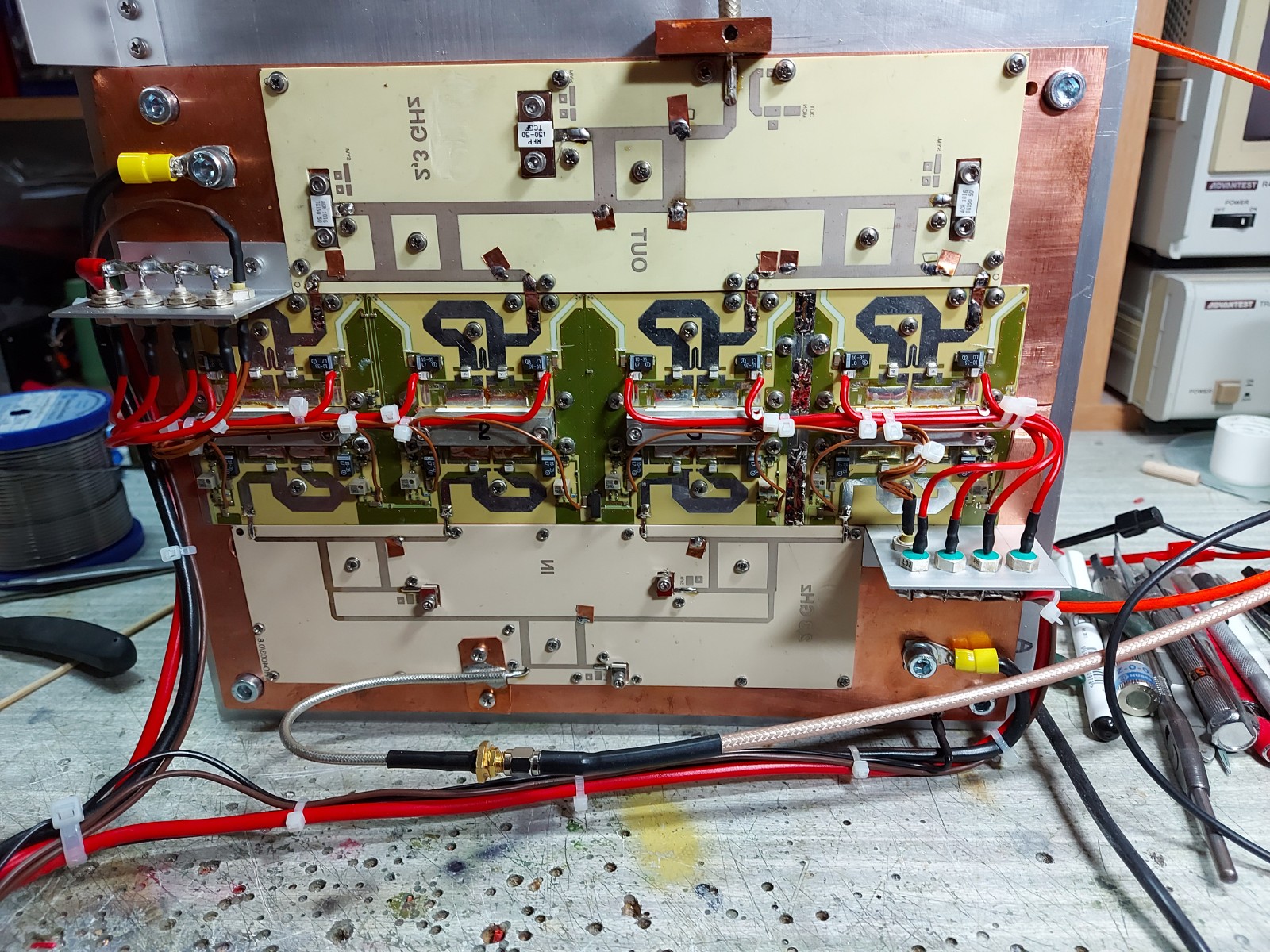

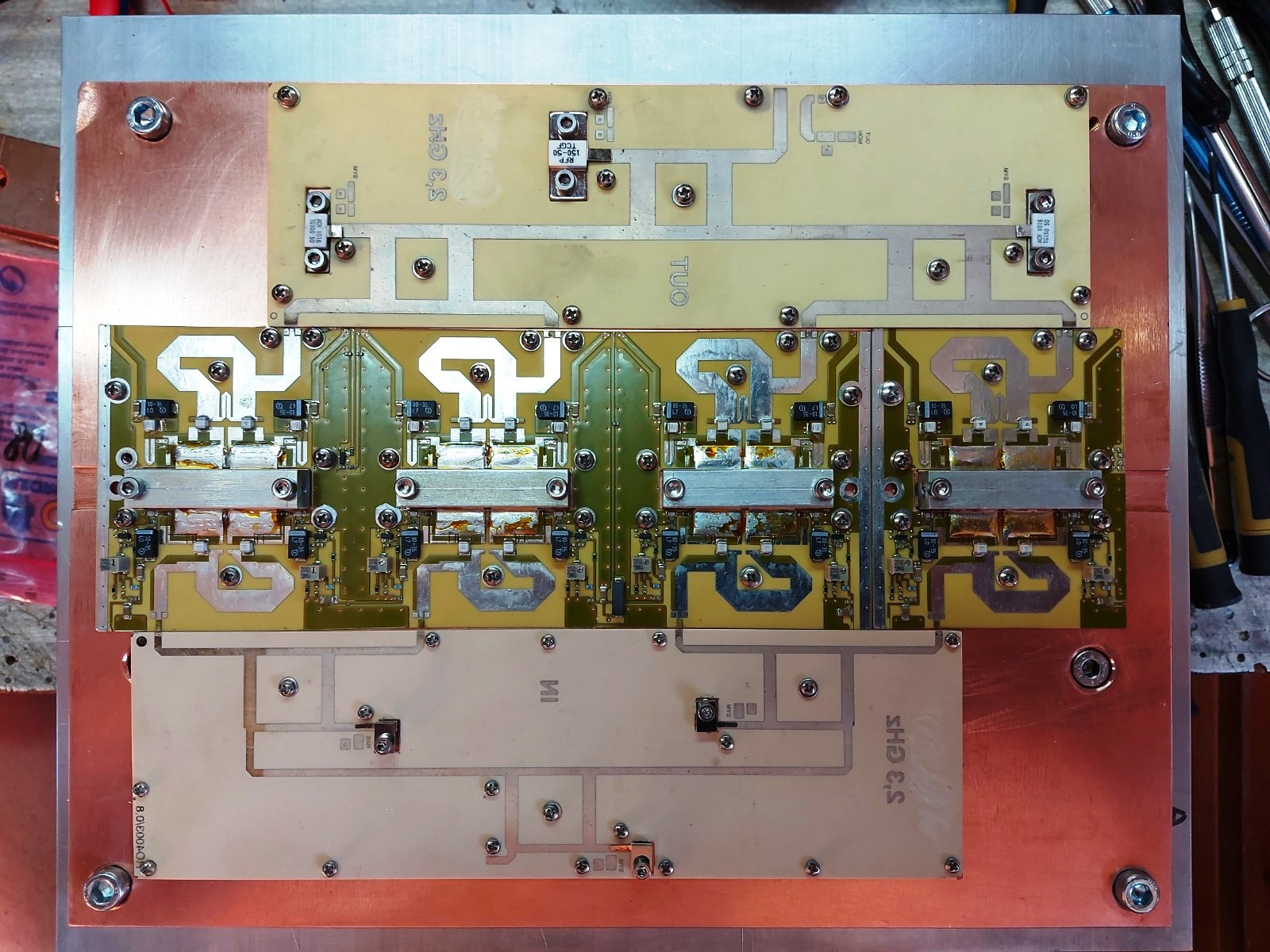

Primer heat sing barr copper plate 10mm and PCBs of SSPA - 4xSRF21120 (military equivalent of MRF21120)

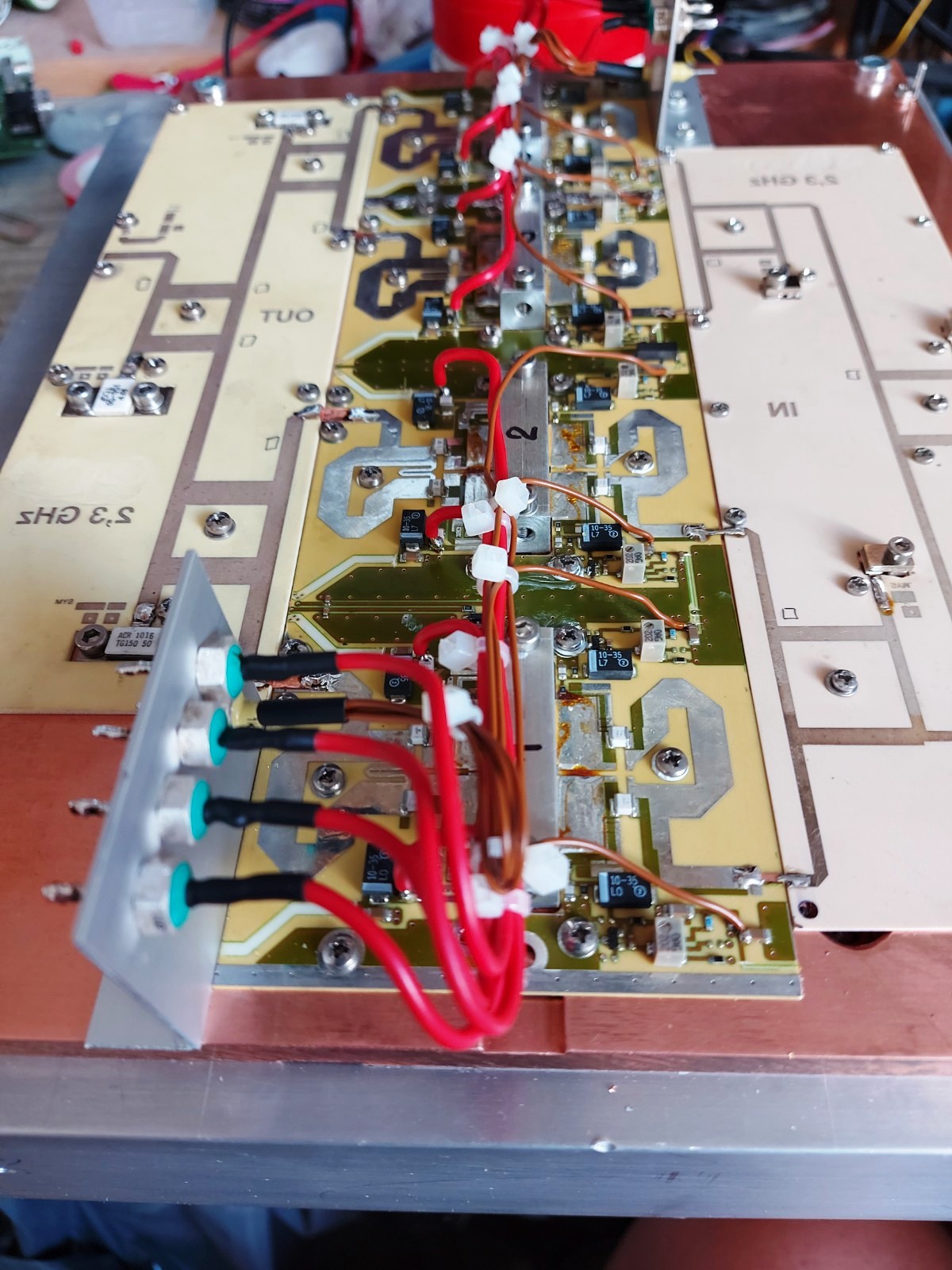

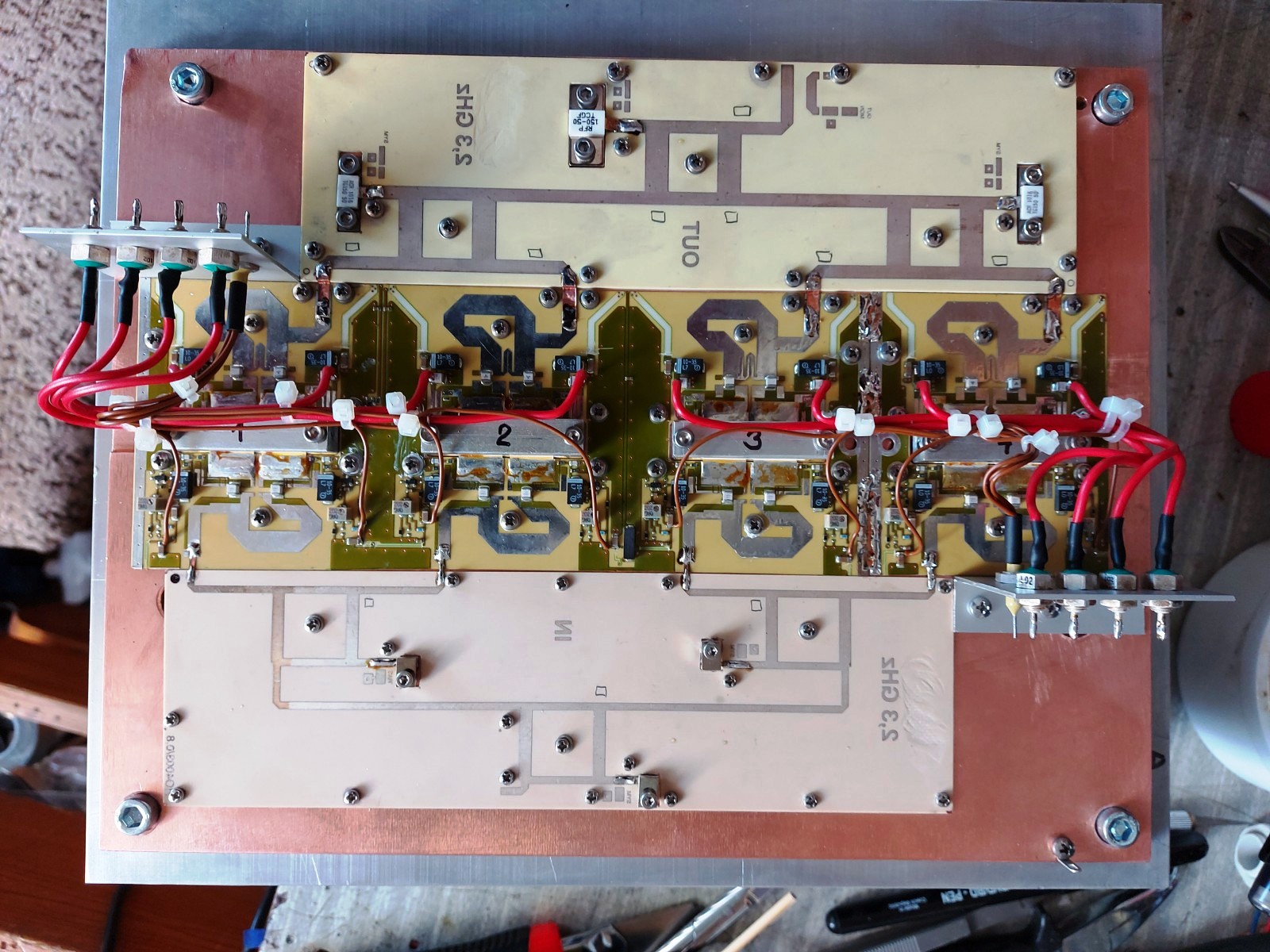

Details of wiring Vd and Vg Vd=28V/46A DC
