24 GHz EME TRV v2.0

24 GHz - transverter 2nd generation



TRV v2.0  - IC9100 + TRV DB6NT 24.048 GHz 1,6dB N/F - 2,6W RF out



VLNA v2.0 - DB6NT input waveguide WR42 design 1,6 dB N/F



SSPA - 2xTGA4915CP - 8W RF out each



Feed horn: PF dish Design linear feed + Kumar ring

Portable antenna: Andrew Prime focus 1,8 m portable setup

RX performance:

CS/G = 2,8dB

Moon noise = 1,6dB

Sun noise = 9,6dB (13/08/2018 - morning at 07:00 UTC, clear sky)





Home antenna: 2,5m offset dish Prodelin - F/D 0,8

Feed horn: W1GHZ design of W2IMU for F/D 0,8





Measuring Sun noise, Moon noise and CS/G on 12-13/08/2018

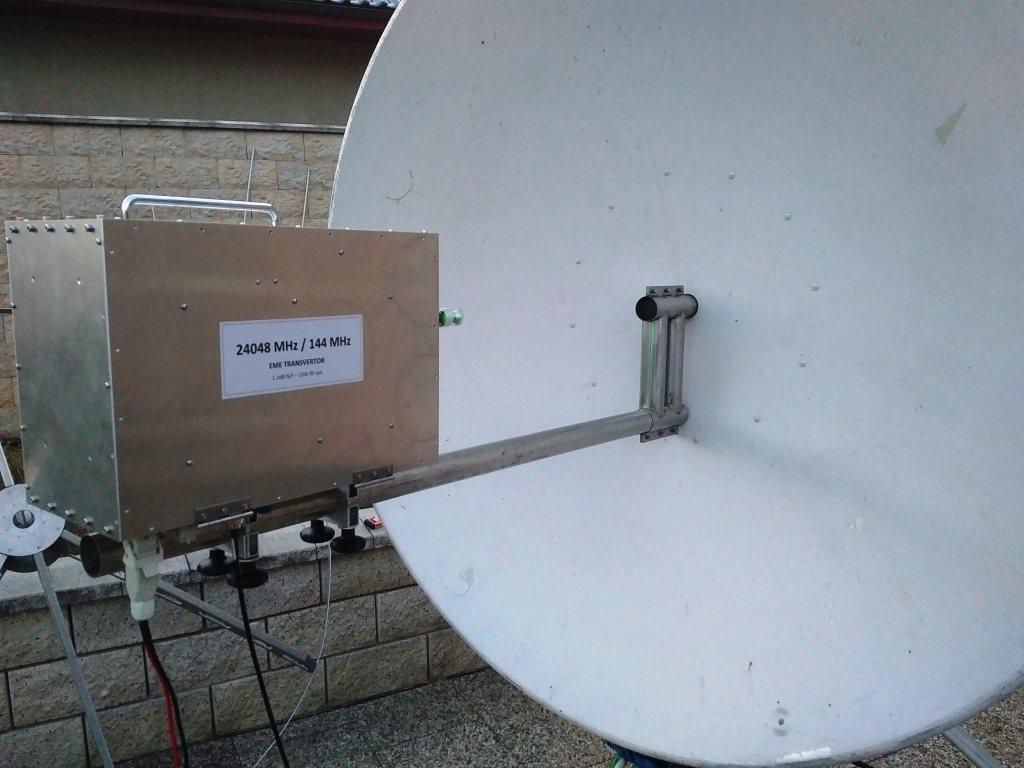

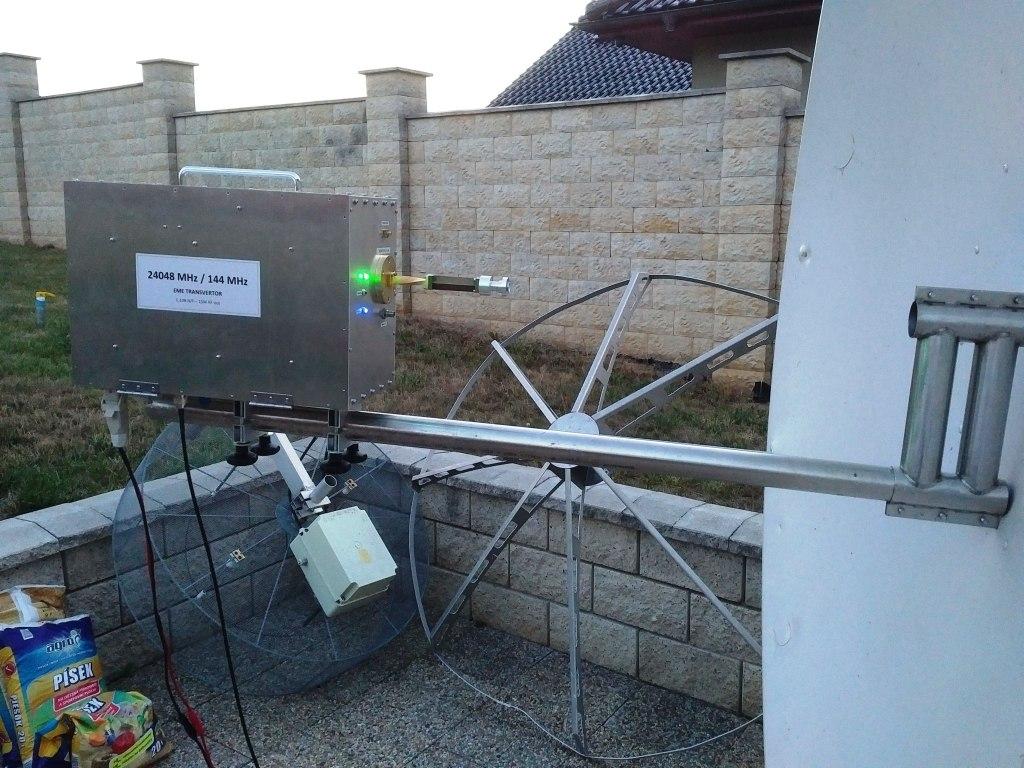

TRV 2nd generation in the feed point of 180cm Andrew solid dish
New contra weight arm and 15 kg weight on the end, two independent zero back slash gears for pointing system to the Moon.

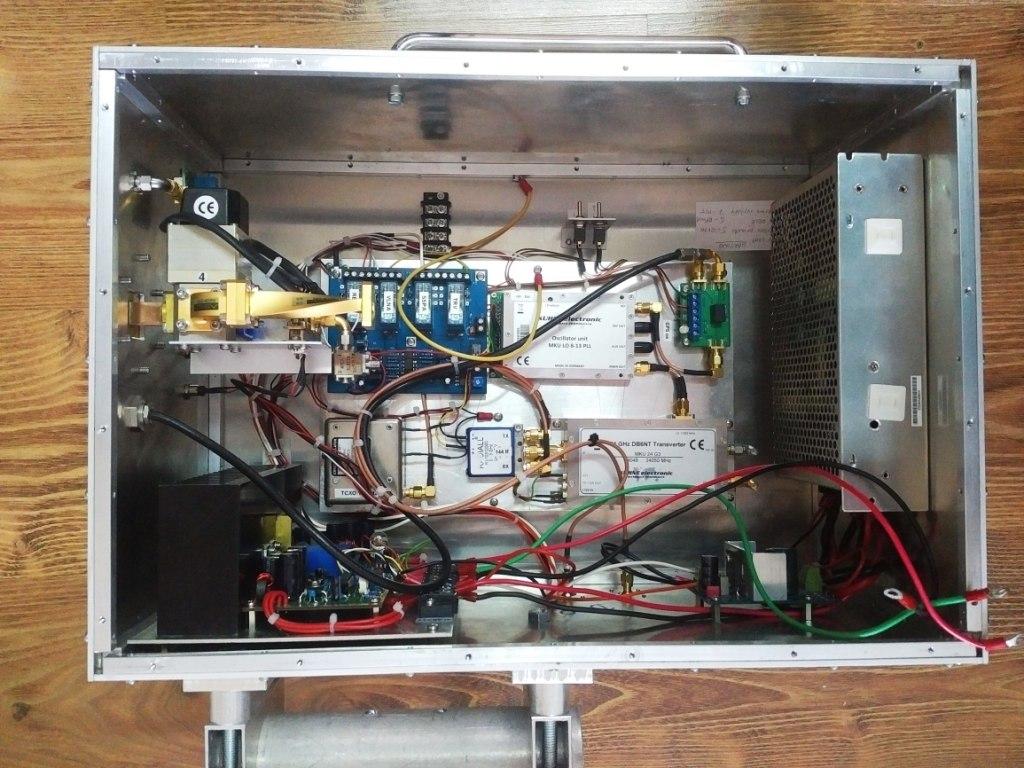

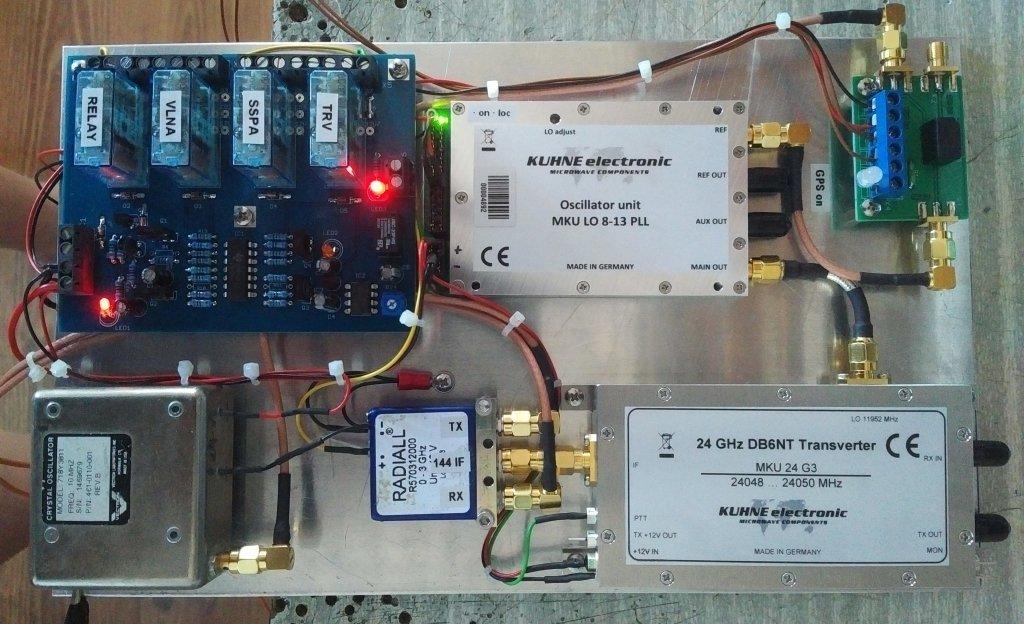

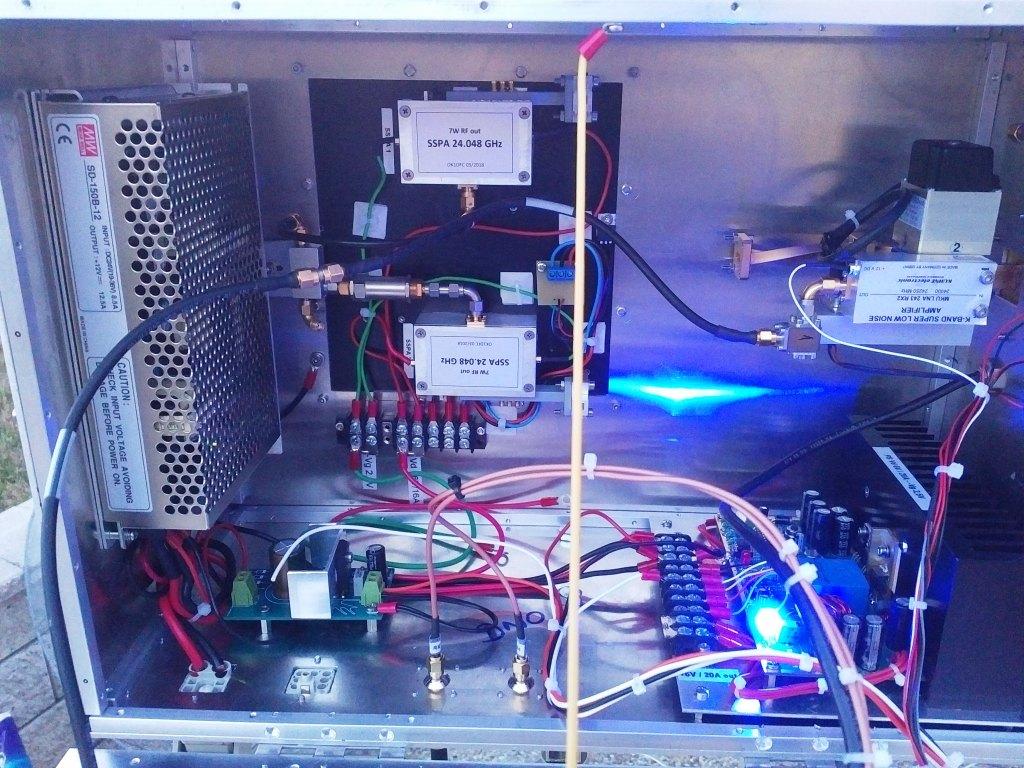

Inside of TRV 24 GHz left, plate with TRV, LO and sequencer on right

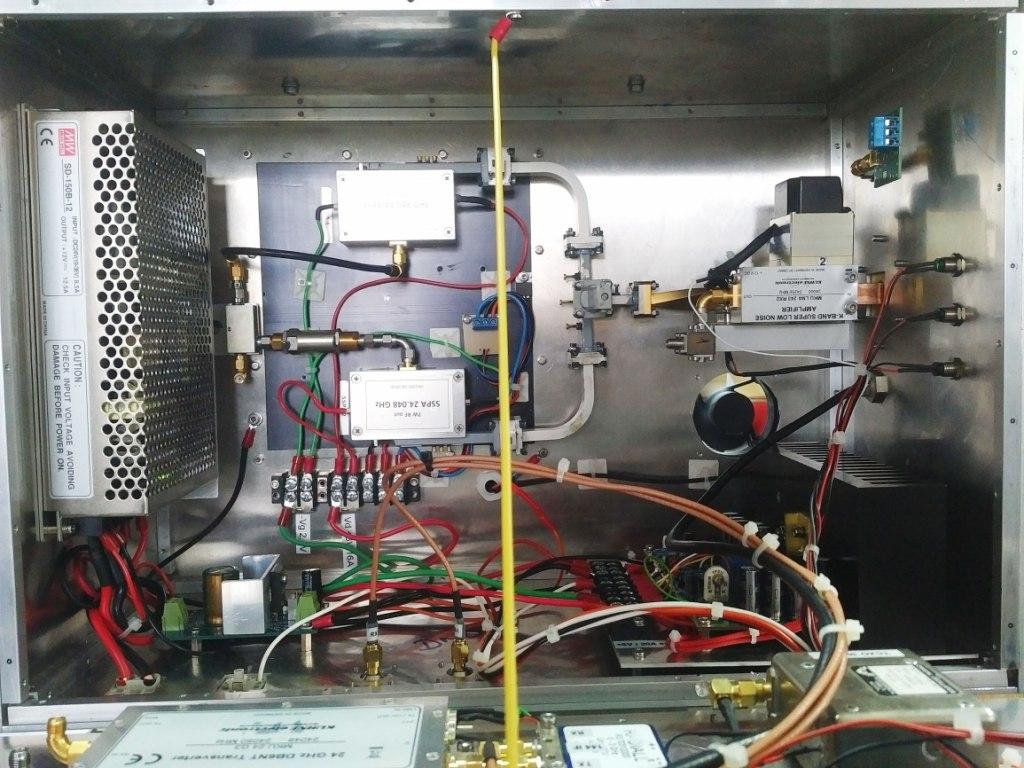

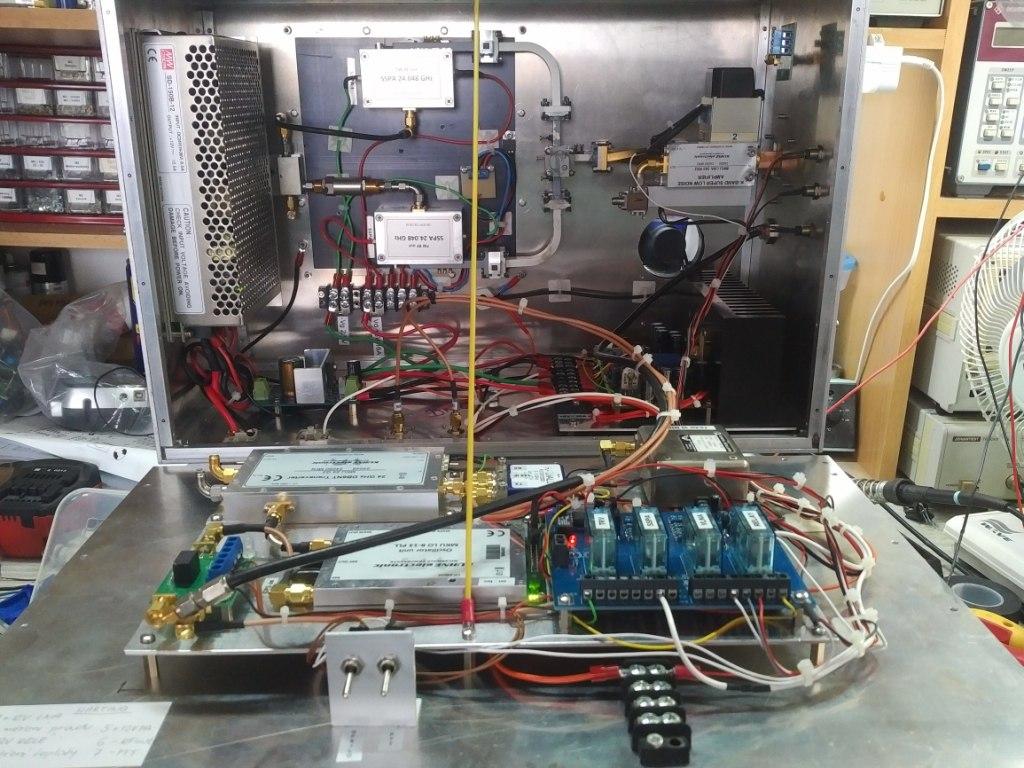

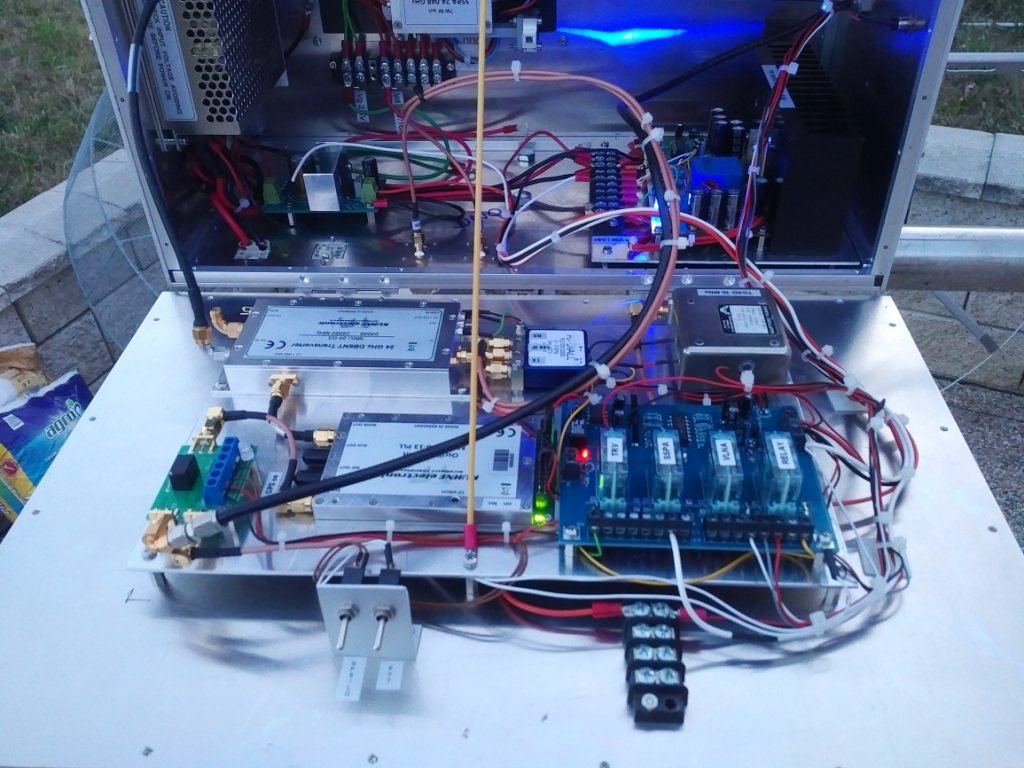

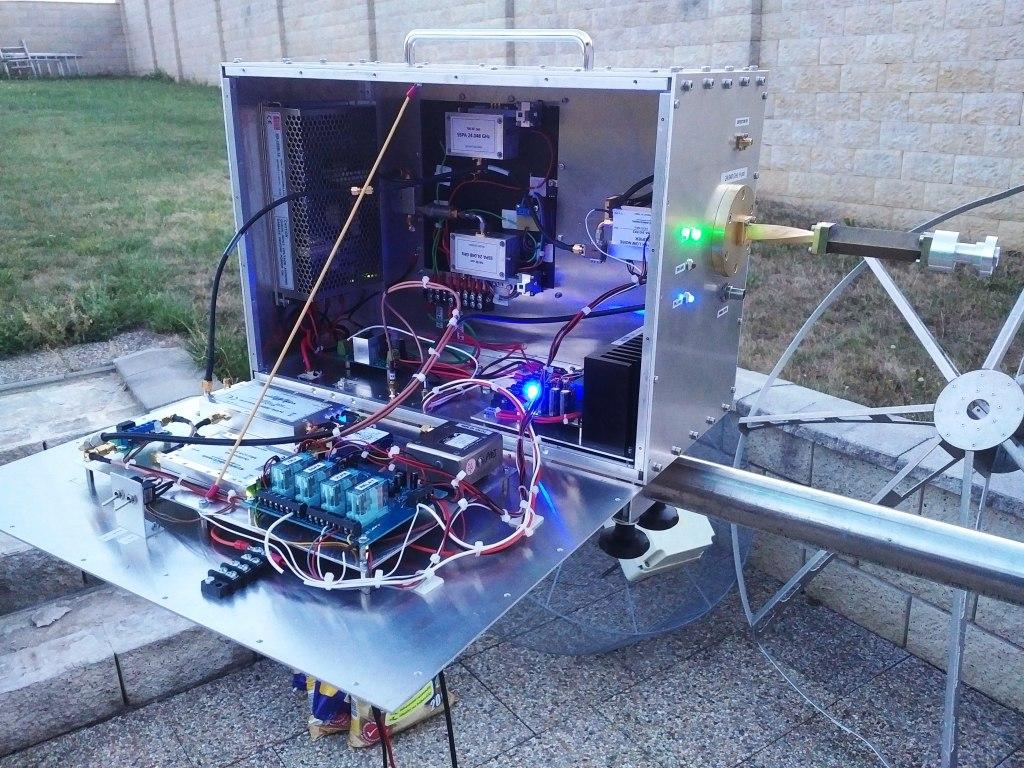

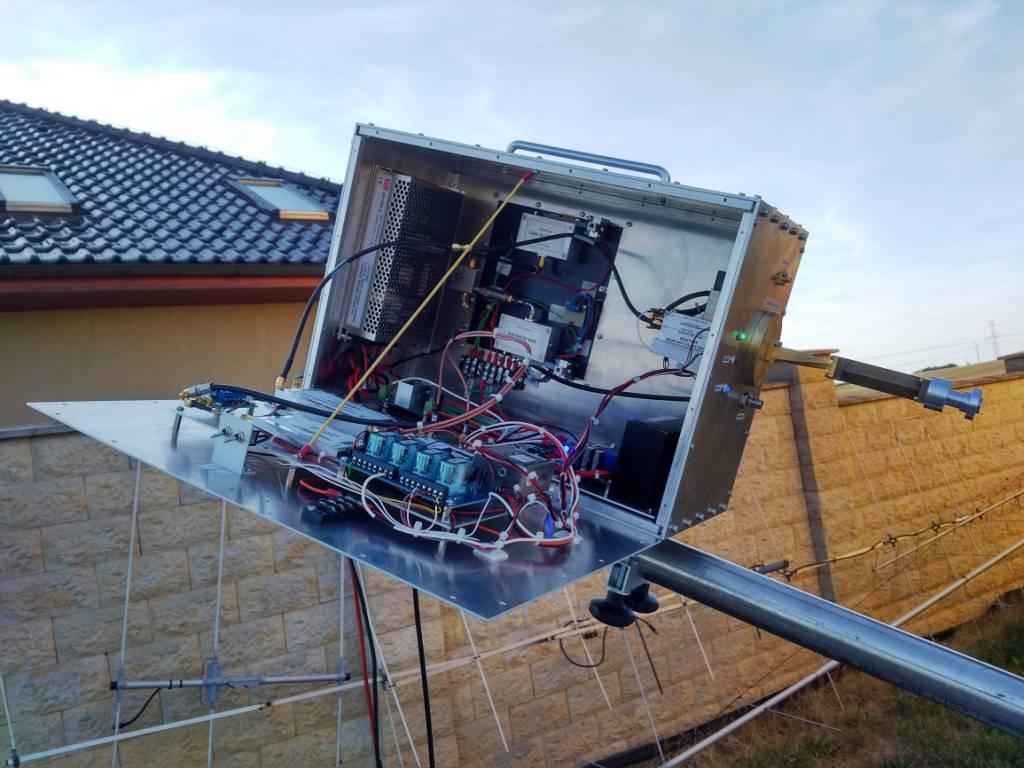

Some details of opened TRV in the dish feed point
CS/G measuring -15,2dB to -18dB = 2,8dB ground noise
Sun measuring -8,6dB to -18,2dB = 9,6dB Sun noise

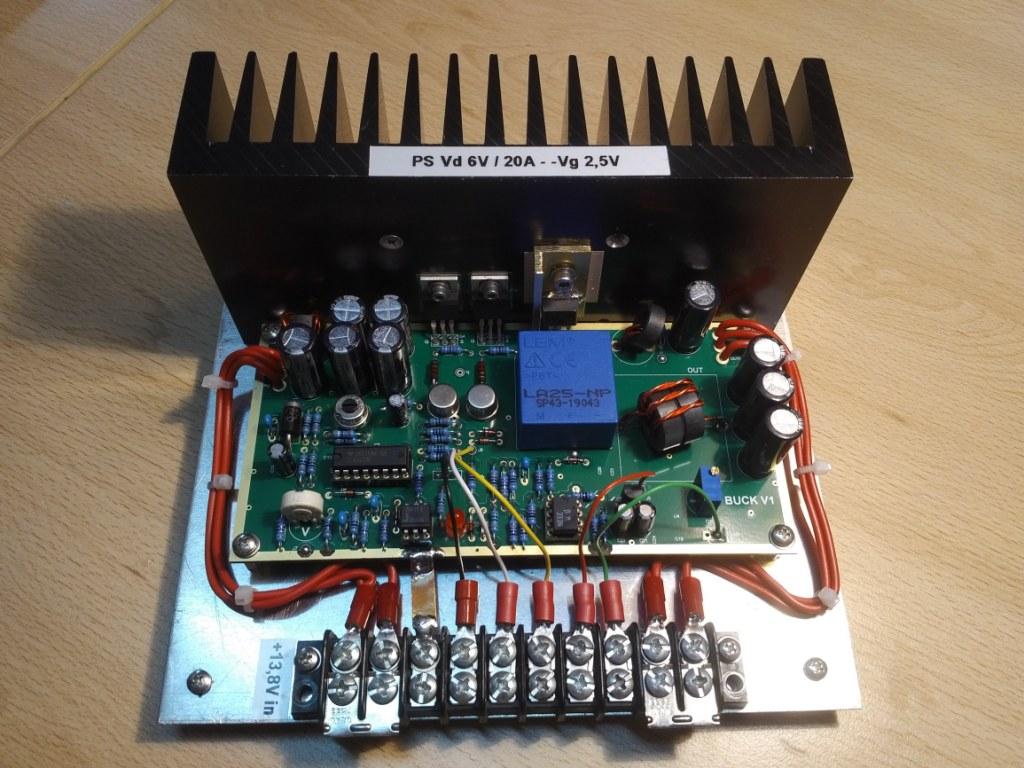

Power supply +6V / 20A - +Vd and -2,5V -Ug



PS designed by F6CSX - here is link for original version

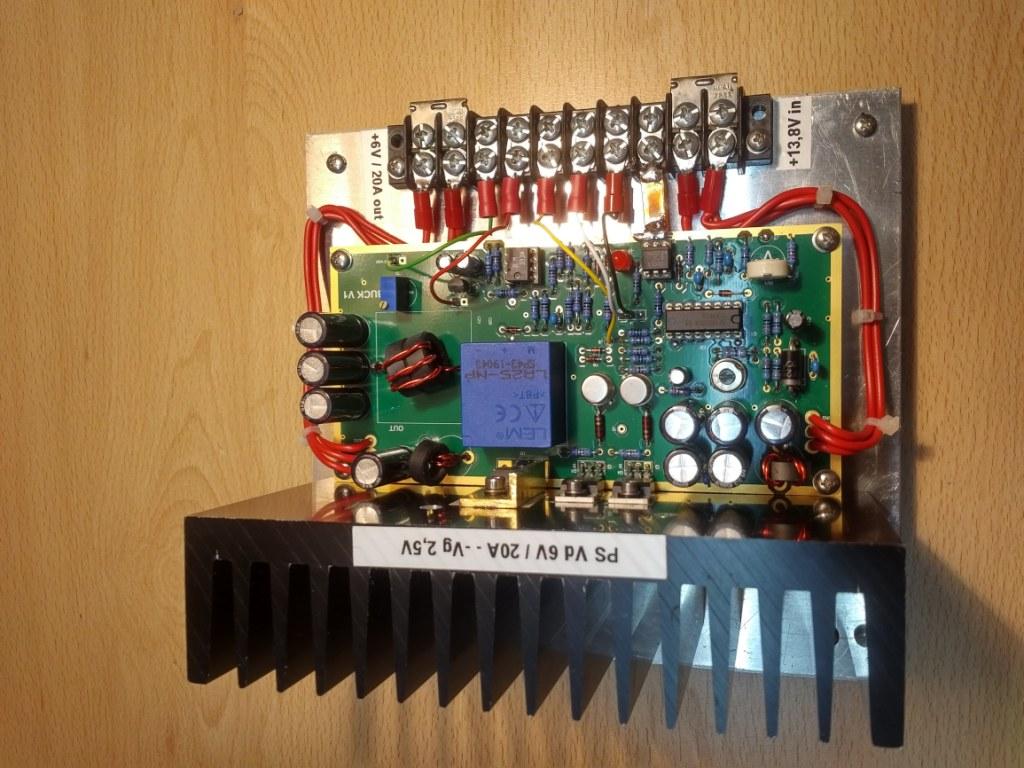

PS another view

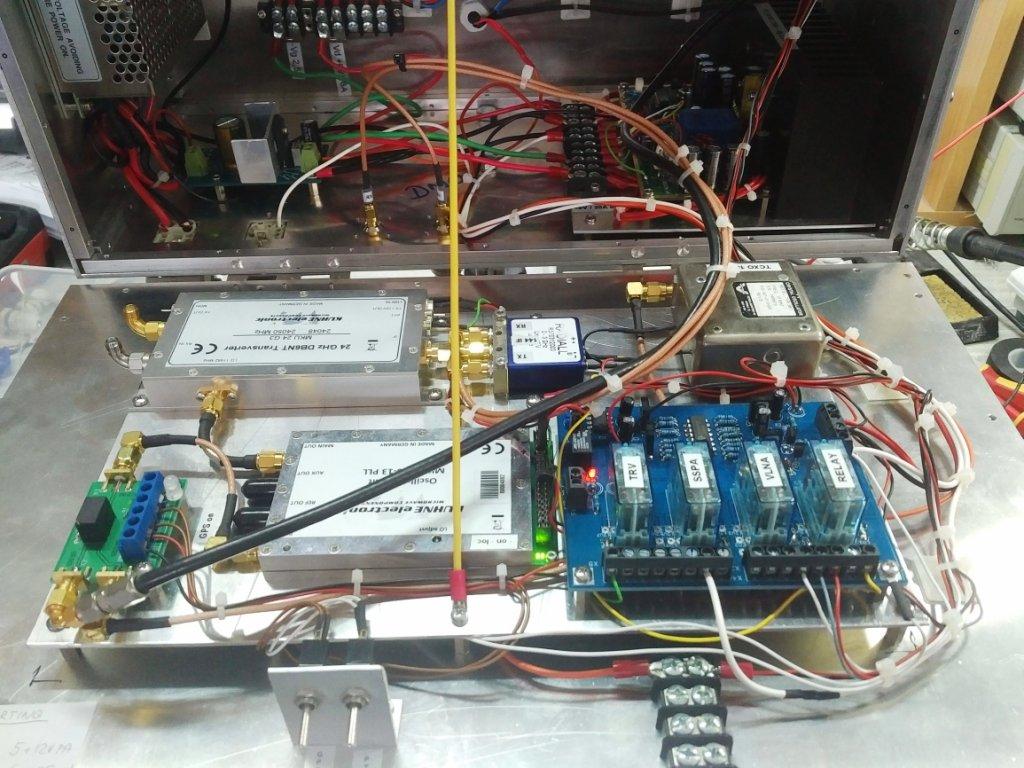

Top from left sequencer - MKU LO Oscillator 11.925 GHz - GPS-TCXO 10MHz switch

Down left TCXO - Relay IF RX - TX way - TRV 24.048 GHz 2,6W RF

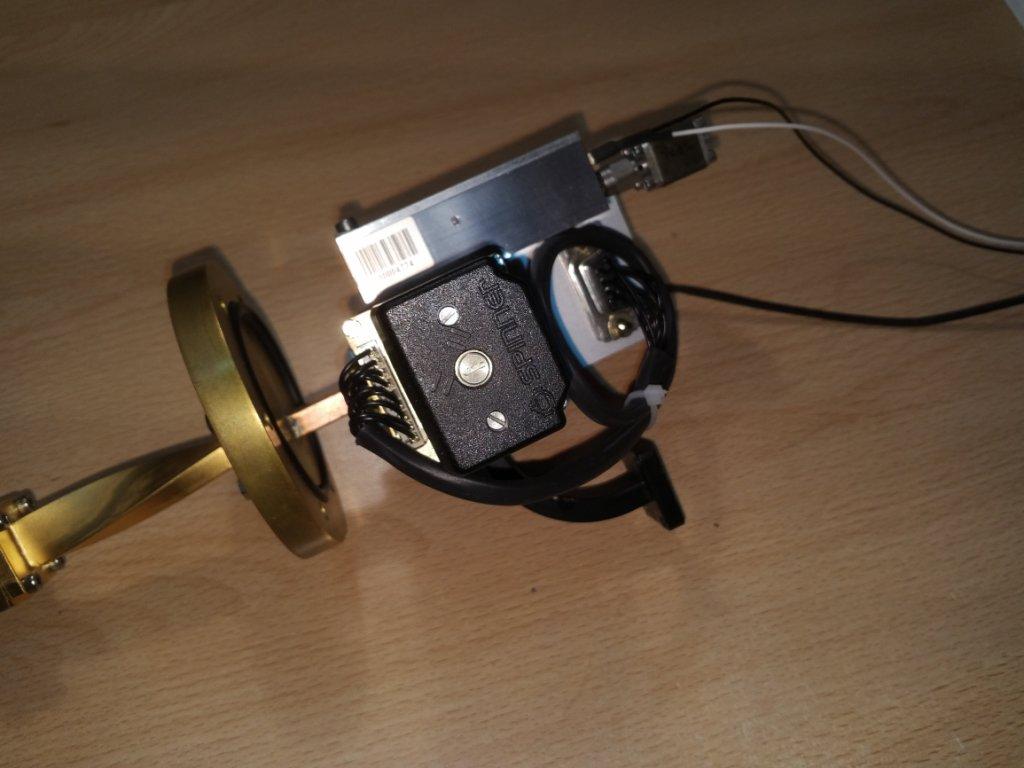

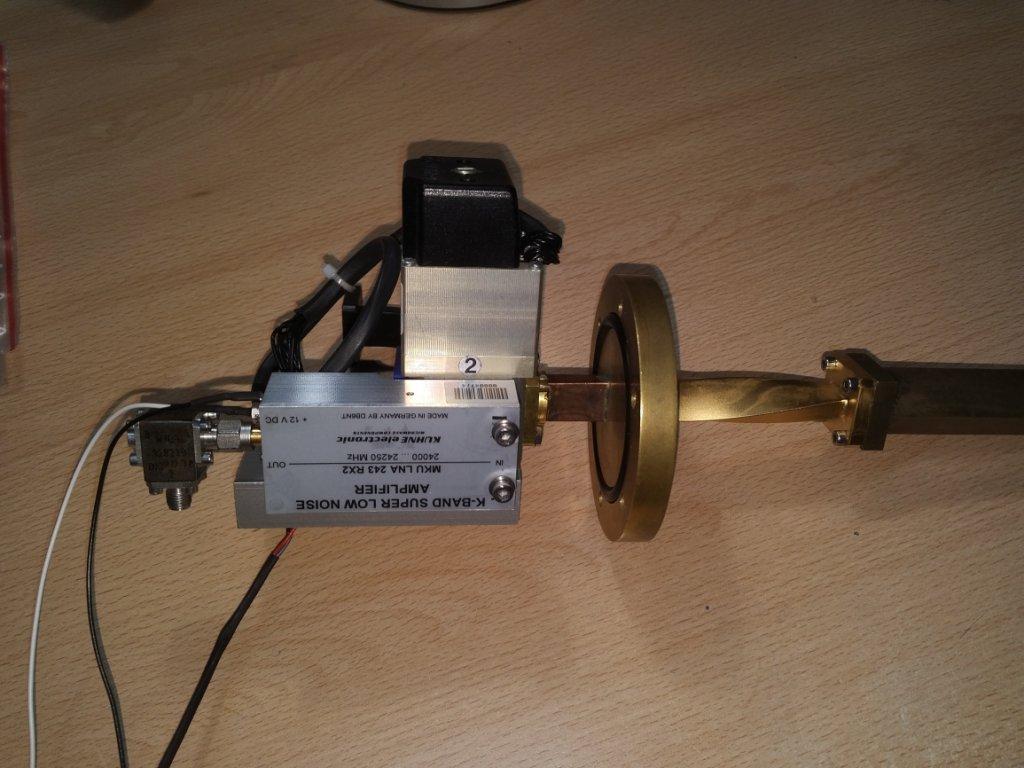

WR42 wave guide switch SPINNER - LNA 1,6dB N/F DB6NT - isolator on the LNA output
other view - WR42 wave guide switch SPINNER - LNA 1,6dB N/F DB6NT - isolator on the LNA output

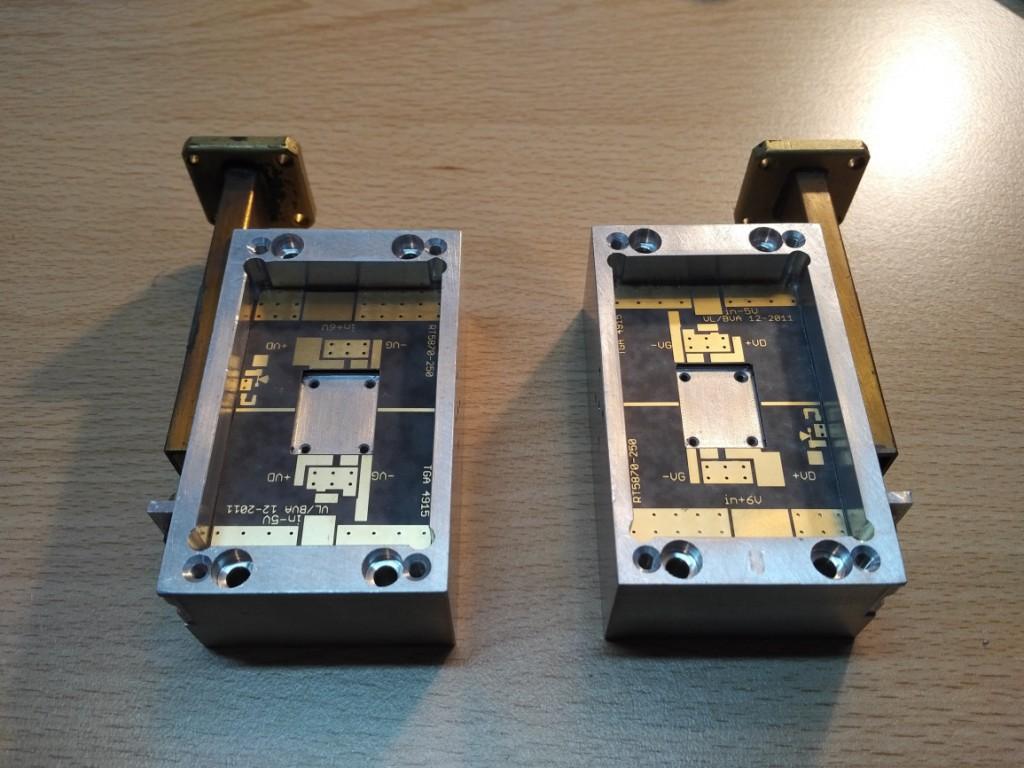

Alu box with PCCB for SSPA with TGA4915CP

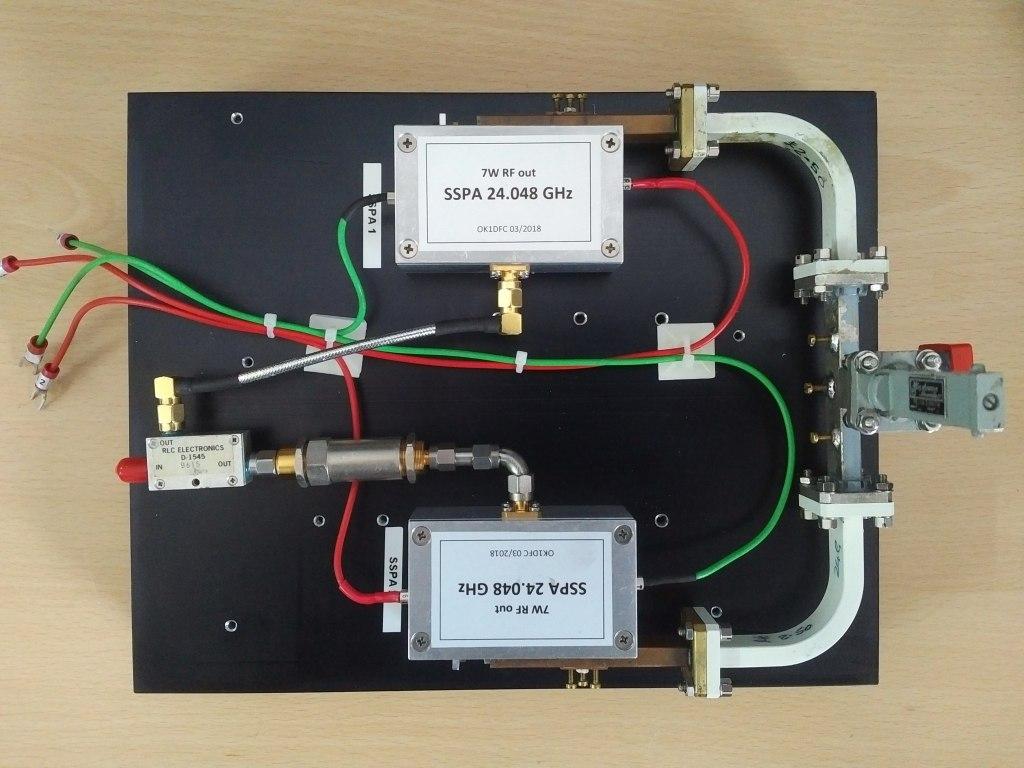

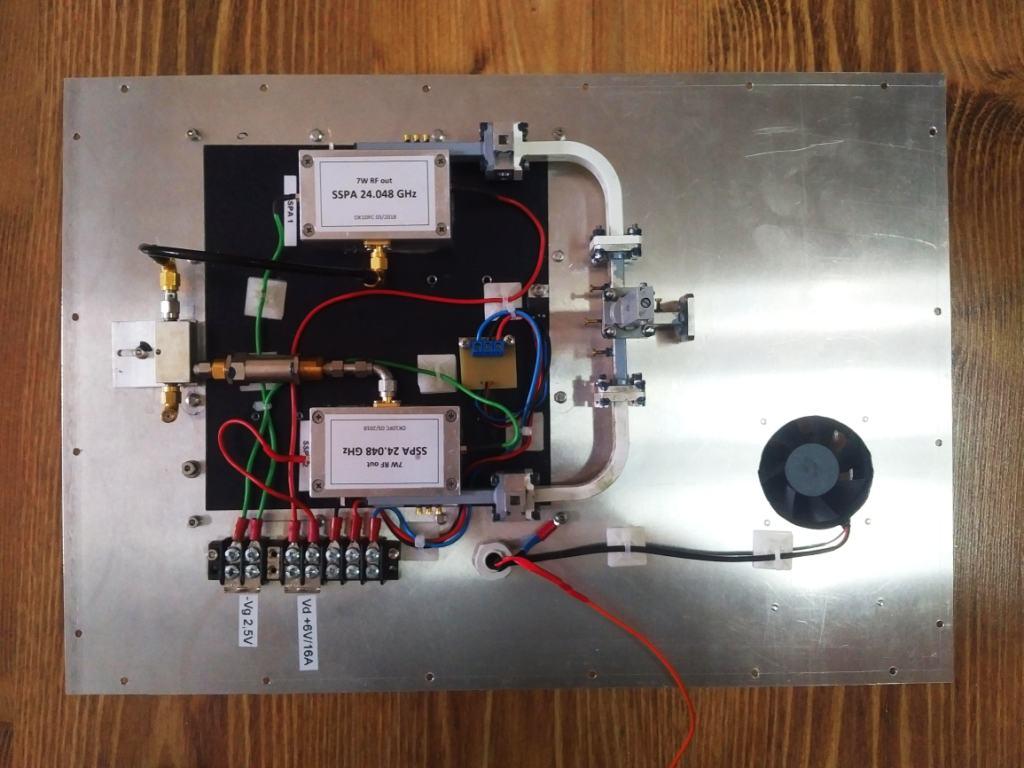

SSPAs box, phase shifter, "magic T" and WR42 SPINNER switch
