OK1DFC – 8m offset - AZ-EL mount

27/04/2020

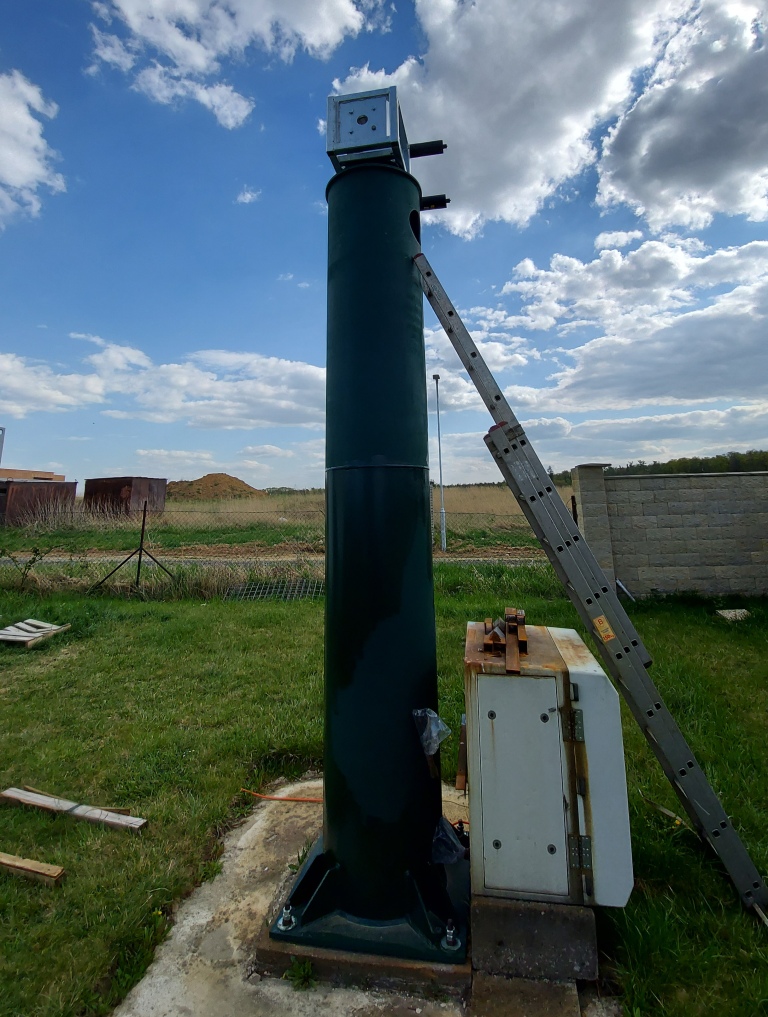

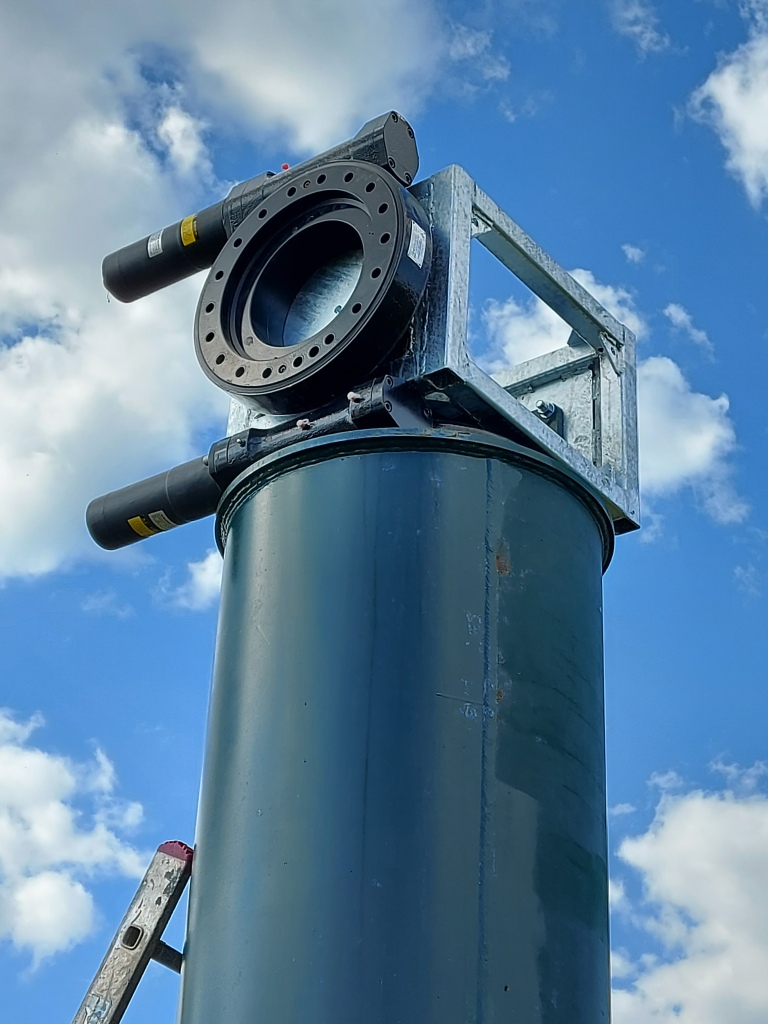

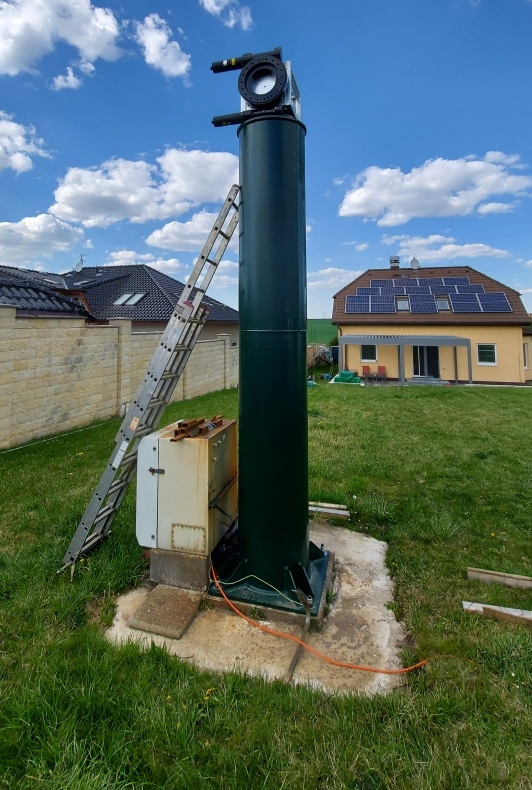

finally installed AZ/EL gear box on top of mast

Ready to start build dish

01/04/2020

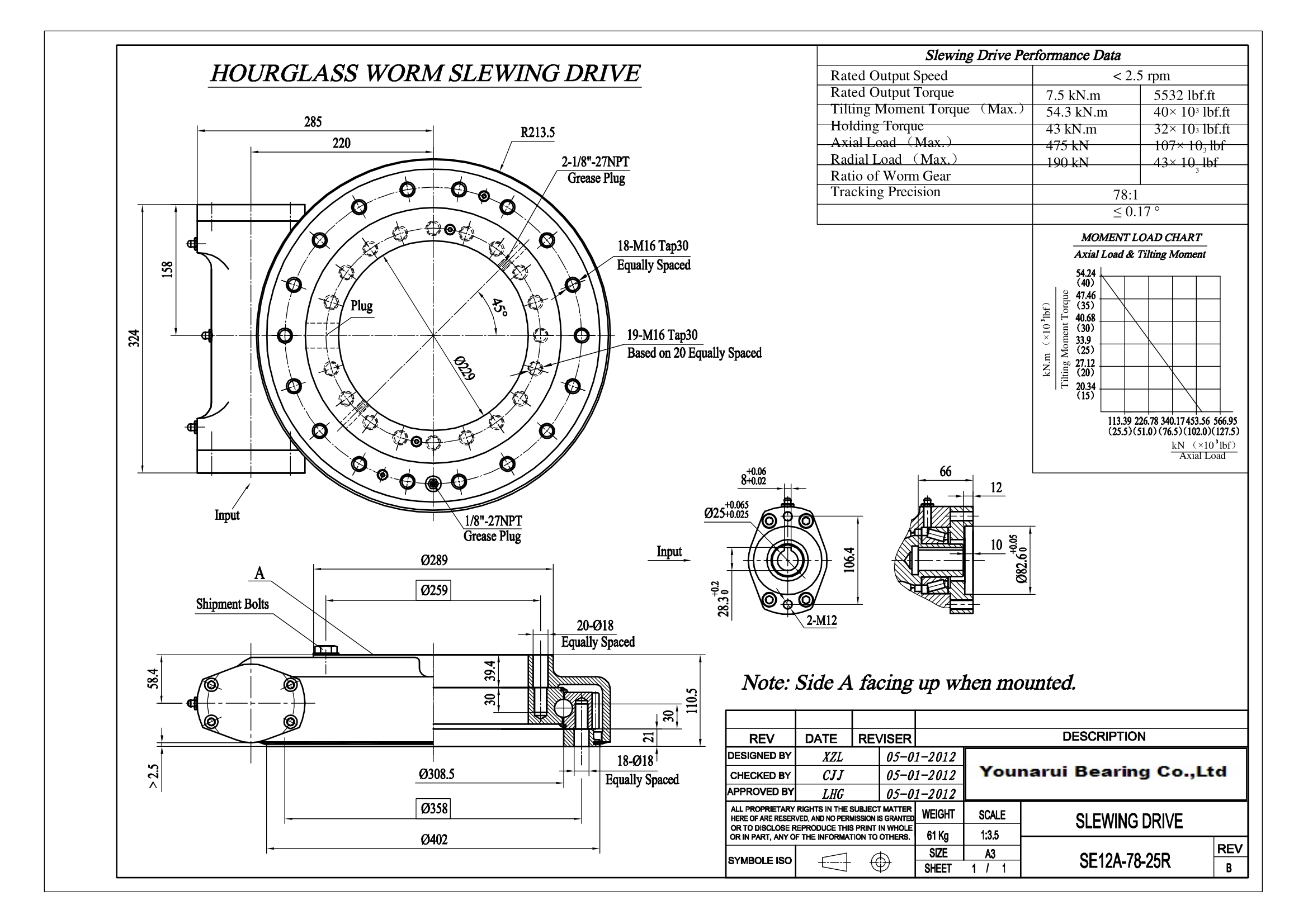

Elevation snail gear SE12A

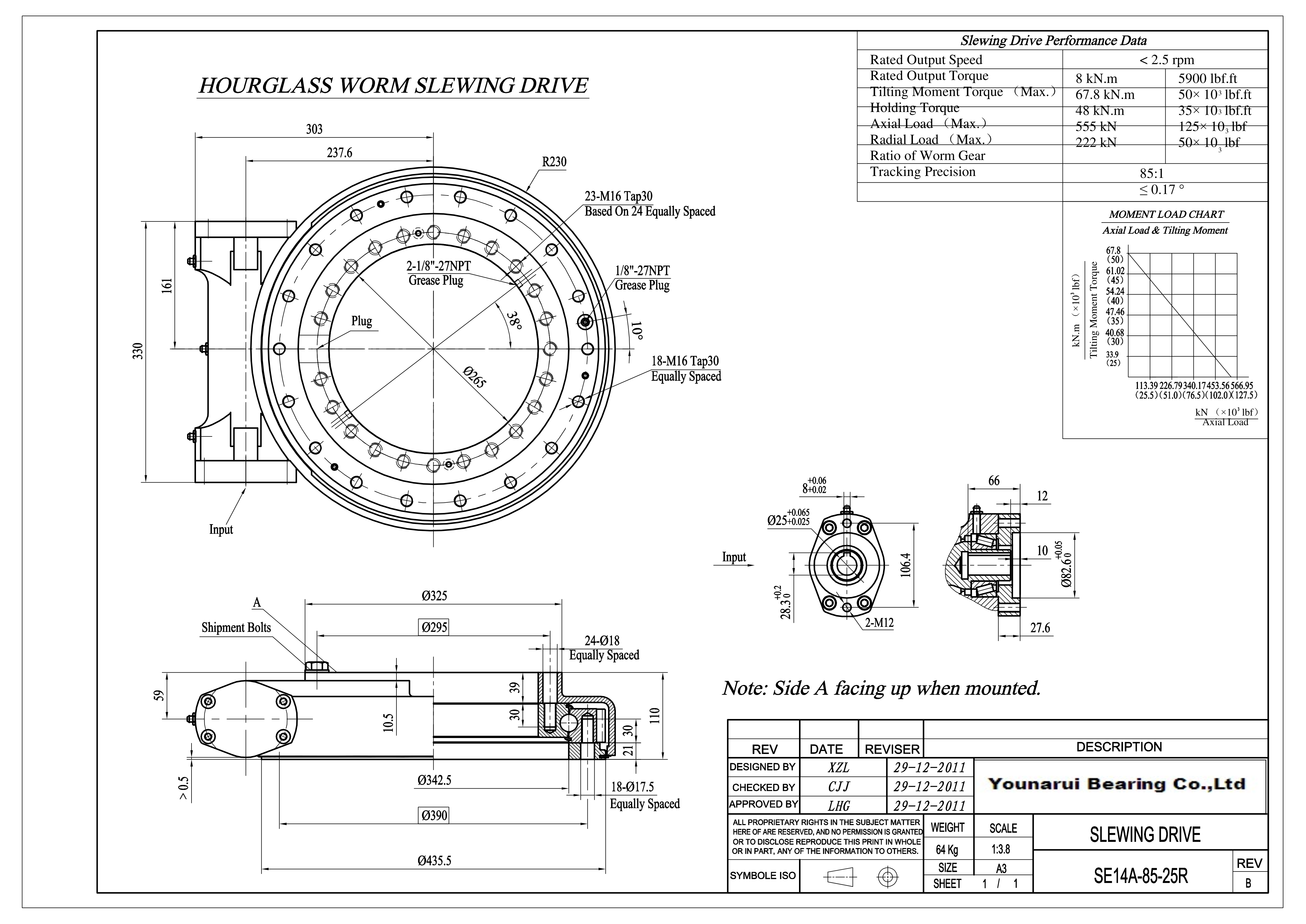

Azimuth snail gear SE14A

07/12/2019

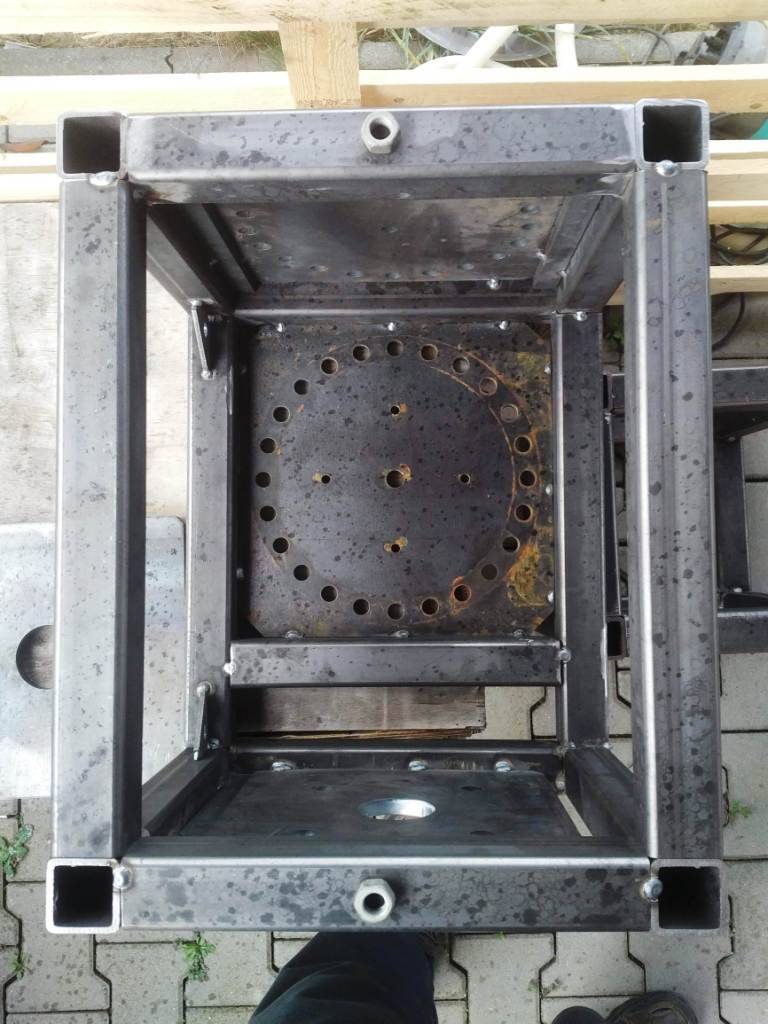

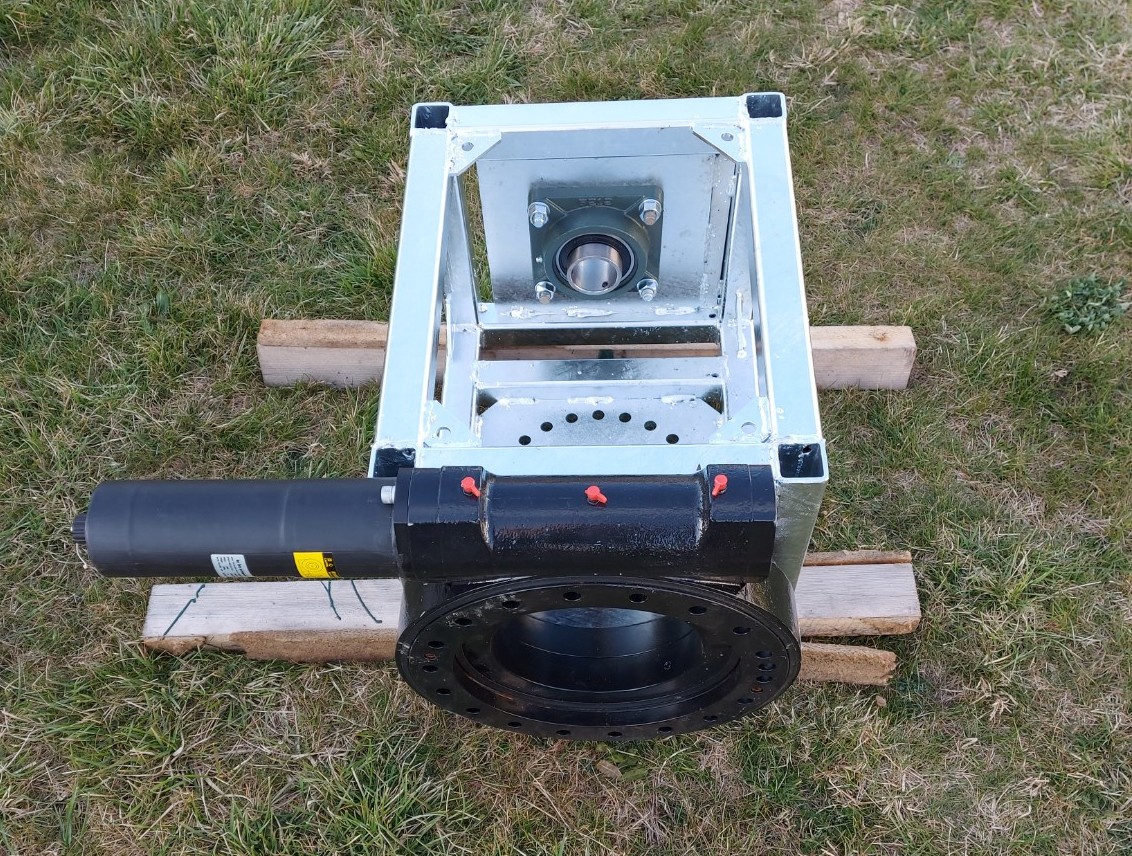

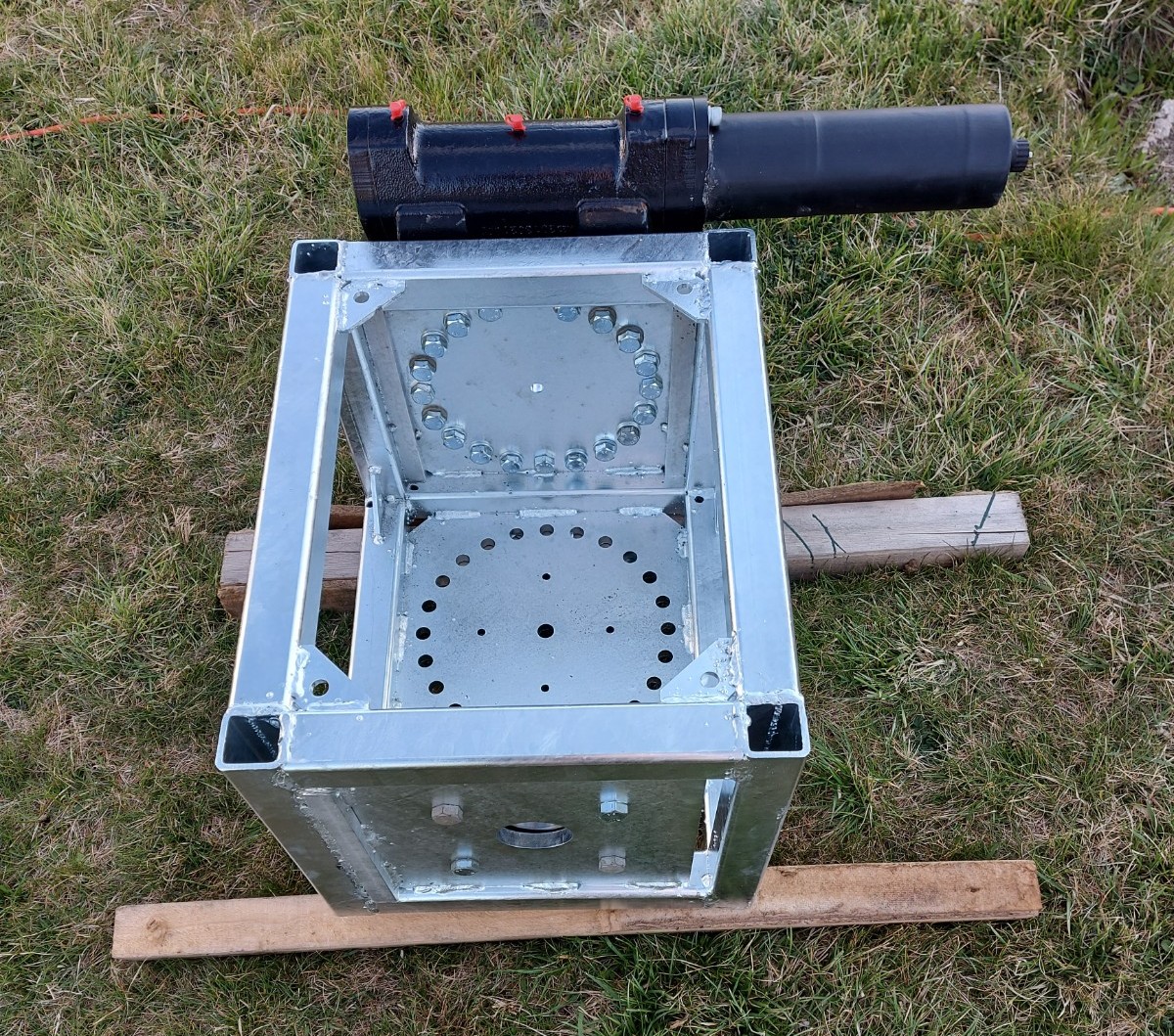

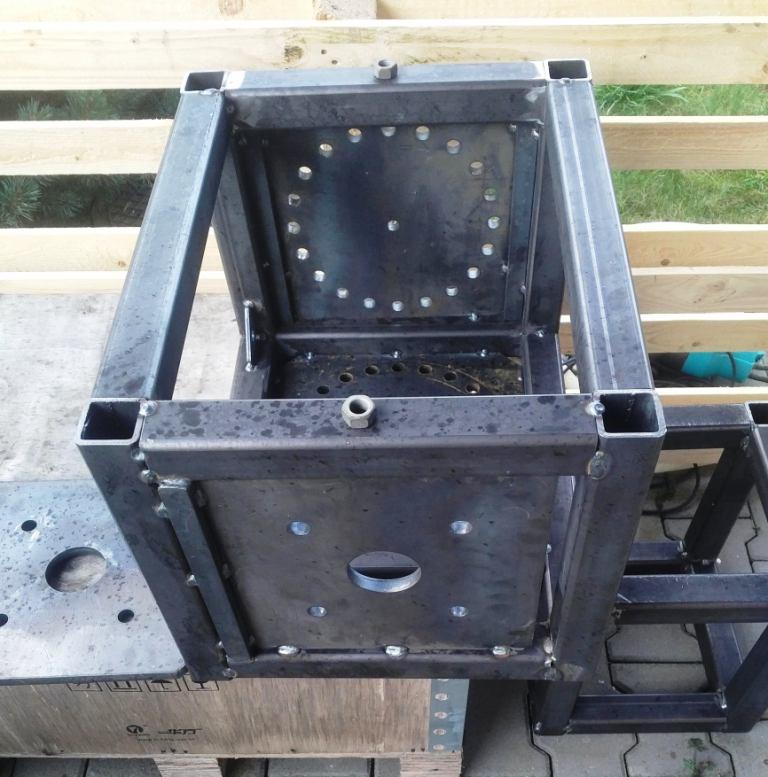

Another part of azimuth gear. This is top box, mounted on azimuth gear and on back plate elevation 12" gear.

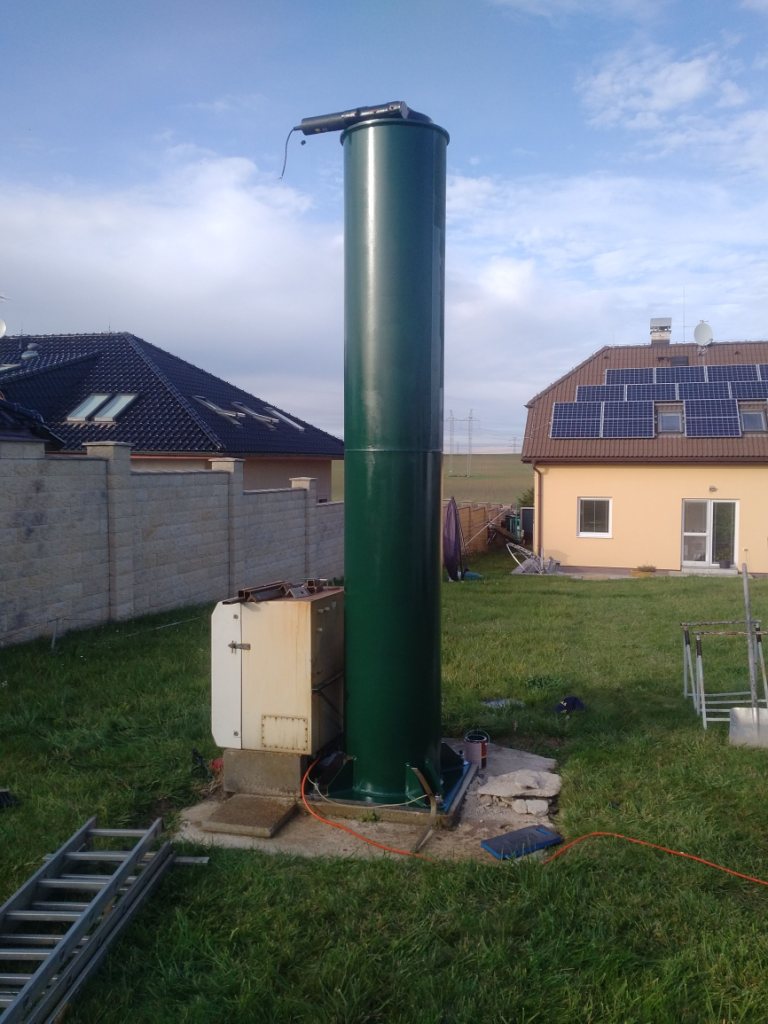

Mast for 8m offset dish is ready and painted, top of the mast snail 14" gear
