Kit of parabolic dish 1,8m - 2,4m - 3,2m and 4,8m diameter

This is dish which is preparing and producing by company DFC microwave. Base of system are ribs produced from hard aluminum sheet by the laser cutting technology. In this time we have available 4,8m dish, weight without mesh is 85kg. Dish has F/D 0,4 and can to be covered by 6 x 6 - 0,7mm hot zinc anticorrosion surfacing mesh, which we can also support. Many accessories as zero backslash gears etc. will follow soon

180cm version under test

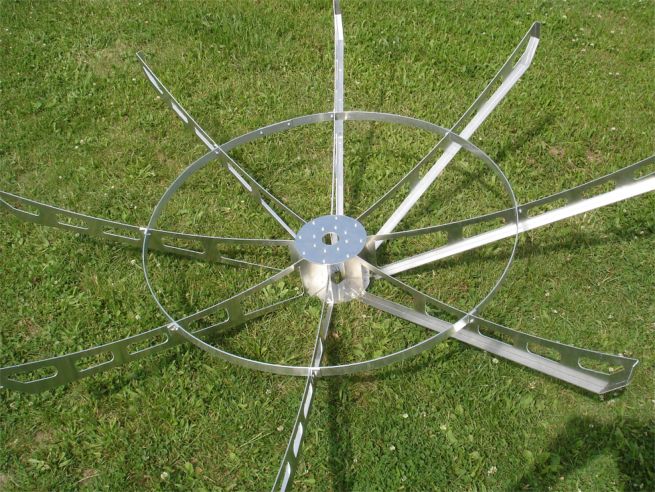

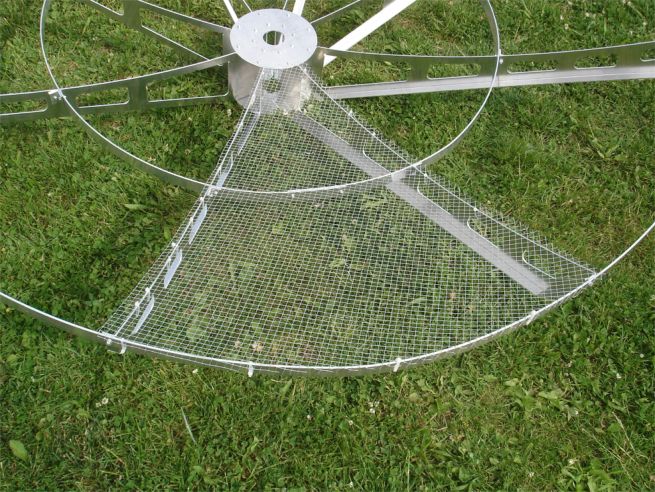

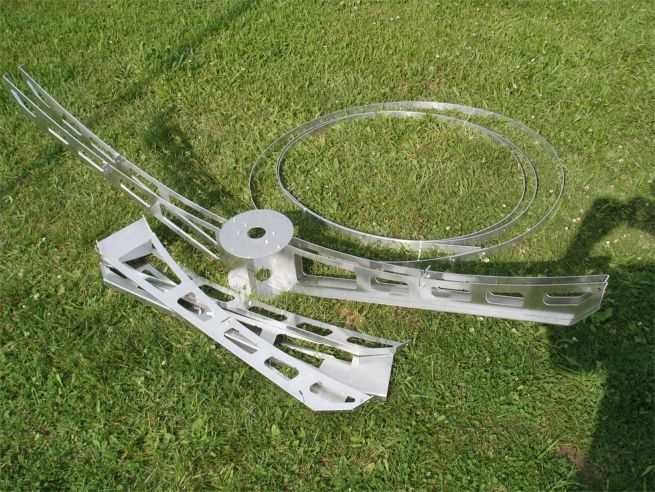

180cm kit Center and ribs Covering by mesh Installation Covering by mesh Final 180cm

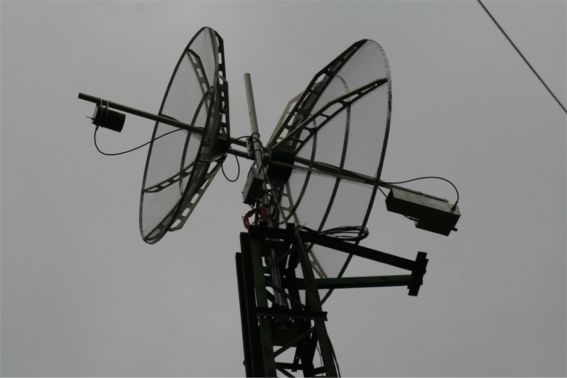

240cm on right and 180cm on left for testing on the mast in UHF contest

This page will follow with more details soon.

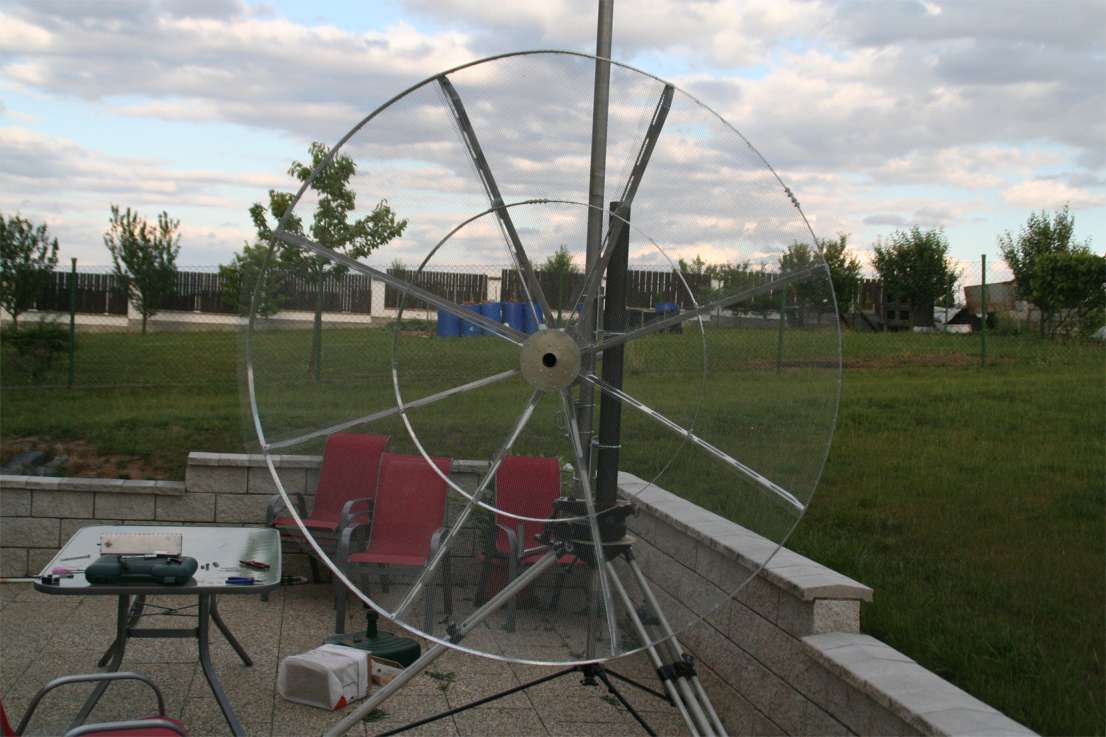

4,8m dish
