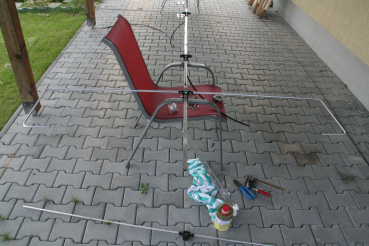

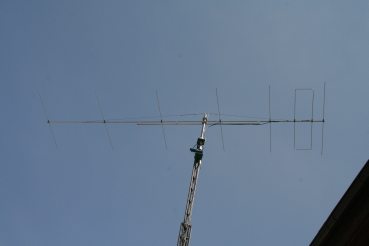

View of 7el. G0KSC use in JN79GW |  |
Follow up with G0KSC construction | ||
 |

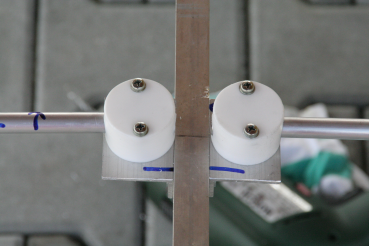

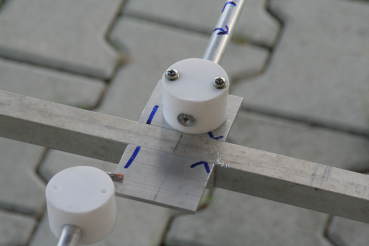

Elements isolation made by OK5IM |

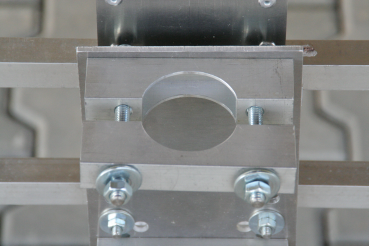

Part of mechanical antenna holder |

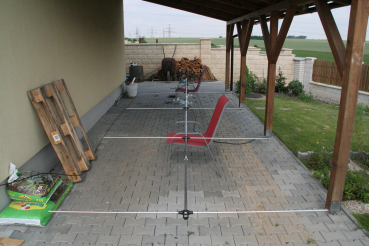

Whole solution |
||
| Dipole construction | |||||
 |
 |
 |
|||

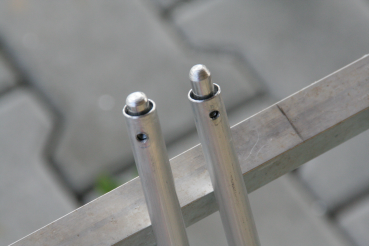

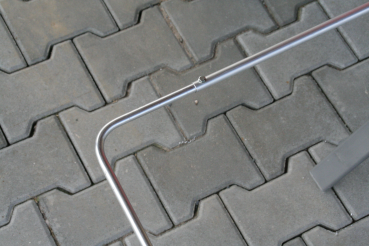

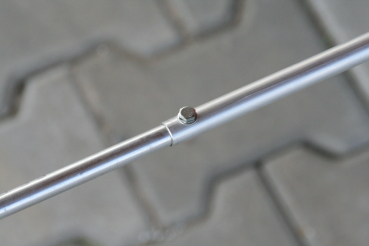

| Detail of dipole screw on end | Bend of dipole | Detail of rod which is inside D1-D2 to have a chance properly tight of crew without tube damage and guarantee good contact inside | |||
 |
 |
 |
|||

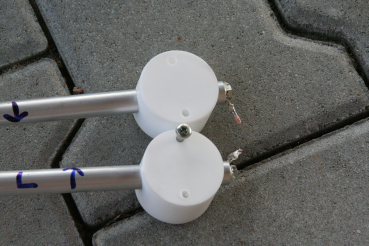

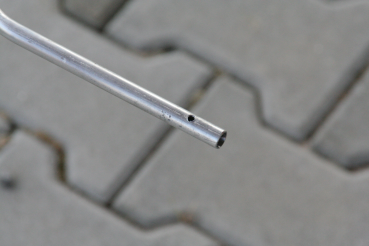

| Detail of hole in bended part of dipole | PTFE holders of dipole, detail how to screw soldering point on dipole | L & R side of dipole D1 | |||
 |
 |
||||

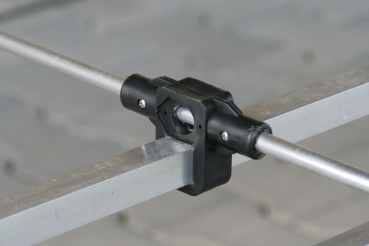

| Dipole installed on boom | Rear of antenna before final installation of dipole | ||||
 |
|||||
 |
|||||

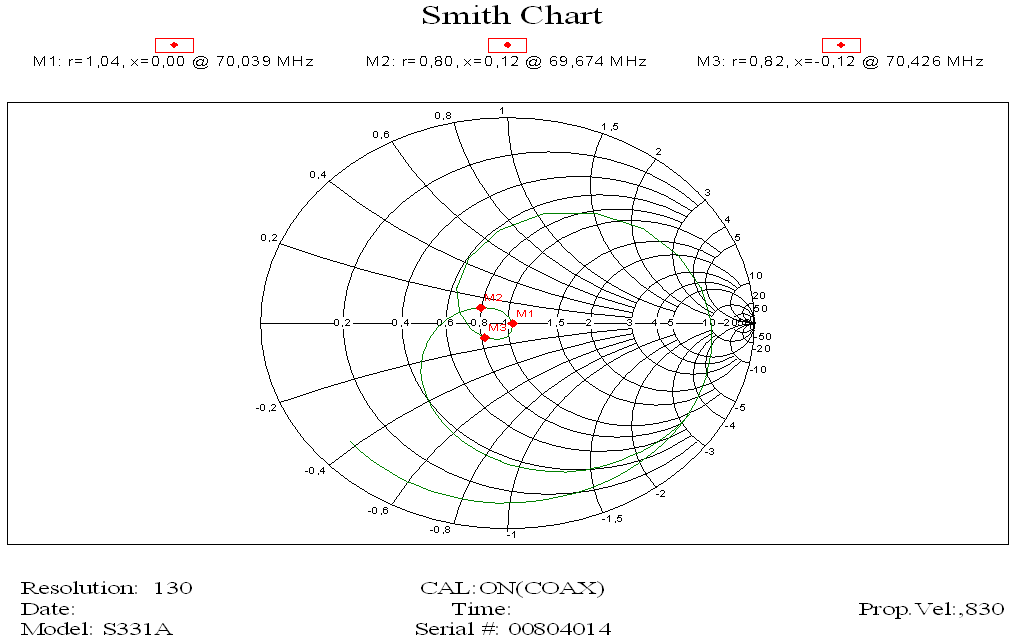

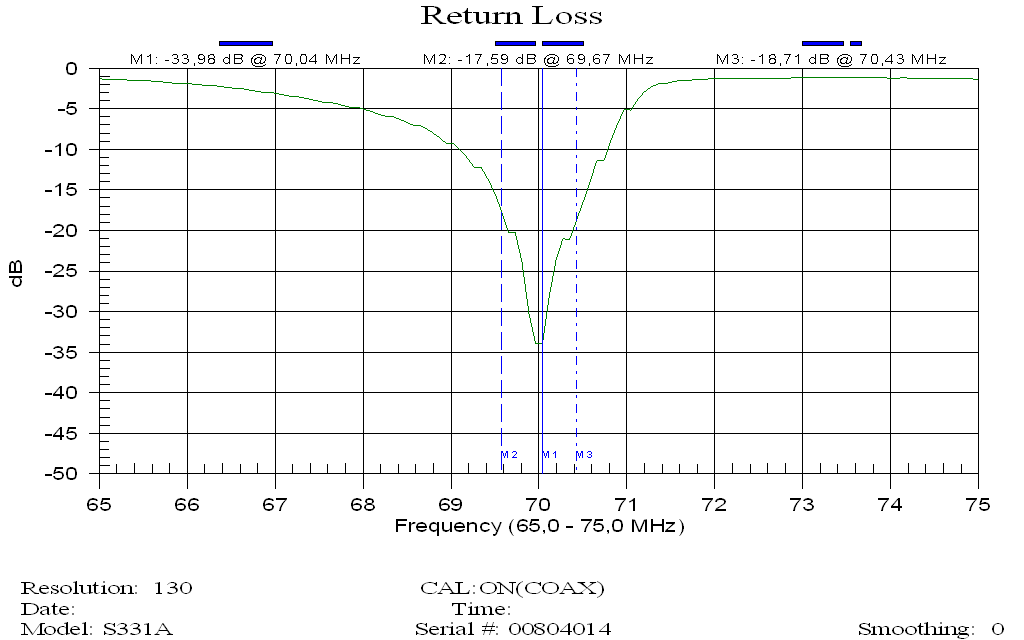

| Top - SWR of G0KSC | Bottom - Smith Chart of G0KSC | ||||
