DUBUS 06/2017

During period of DUBUS 10 GHz contest, I was testing setup for EME DX Expedition to Morocco 2017. For comparison with results of DUBUS 2016, I was using same power 30W RF. For expedition I will have new SSPA 52W RF. Main focus was to test new dish 180cm. Comparing with previous dish is new one 1,5dB better. After collimation I have recognize that new dish has only 10mm diameter focus point, what's giving chance to use it also for 24GHz in future. Last test of 10 GHz I will do during short expedition to Poland in weekend 18-20th of August 2017. Follow the page you can see some pictures and changes made in setup. Looking forward to work many of you as CN2R.


Log from the contest:

QSO worked by OK1DFC on 10 GHz
Type of propagation: EME Mode: All mode
From 24/06/2017 to 25/06/2017 Distance over: 0 Km.


DATE TIME CALLSIGN LOCATOR TX RX MODE REMARKS QRB
24/06/2017 06:43 HB9Q JN47CG O RO JT4F   552
24/06/2017 07:51 OK1KIR JN79GX RO O CW   5
24/06/2017 08:12 SP6JLW JO80CF RO O CW #3 123
24/06/2017 08:24 OZ1LPR JO44UW 599 529 CW #4 645
24/06/2017 08:45 HB9Q JN47CG O 429 CW #5 552
24/06/2017 09:26 YO3DZZ KN34AN O 429 CW #6 - #DXCC 1052
24/06/2017 09:35 PA0BAT JO31FX RO O CW #7 - #DXCC 609
24/06/2017 09:48 DB6NT JO50TI 559 529 CW #8 - #DXCC 213
24/06/2017 10:20 PA3DZL JO21HM O RO CW #9 719
24/06/2017 15:44 OK1CA JO70UR 559 539 CW #10 121
25/06/2017 07:26 JA1WQF QM05AV O RO JT4F #7 JT - -14/-16 #DXCC 9071
25/06/2017 07:50 YO2BCT KN02PS 579 549 CW #11 949
25/06/2017 08:16 G3WDG IO92RG 559 429 CW #12 1082
25/06/2017 08:32 G3WDG IO92RG O RO JT4F -14/-17 1082
25/06/2017 09:30 HB9BHU JN37XG O RO CW #13 567
25/06/2017 10:47 DL7YC JO62PK O 529 CW #14 291
25/06/2017 14:03 EA3HMJ JN11AN O RO JT4F #8 JT - -14/-17 - #DXCC 1341
25/06/2017 14:40 WA3LBI FN20JI O RO JT4F #9 JT - -15/-17 - #DXCC 6686
25/06/2017 16:43 VE4MA EN19LU O 429/RO CW #15 - #DXCC 7157
25/06/2017 17:19 WA6PY DM13LA RO O CW #16 9629
Number of QSO listed: 20

Heard in QSO with others but did not work: OF2DG, K2UYH

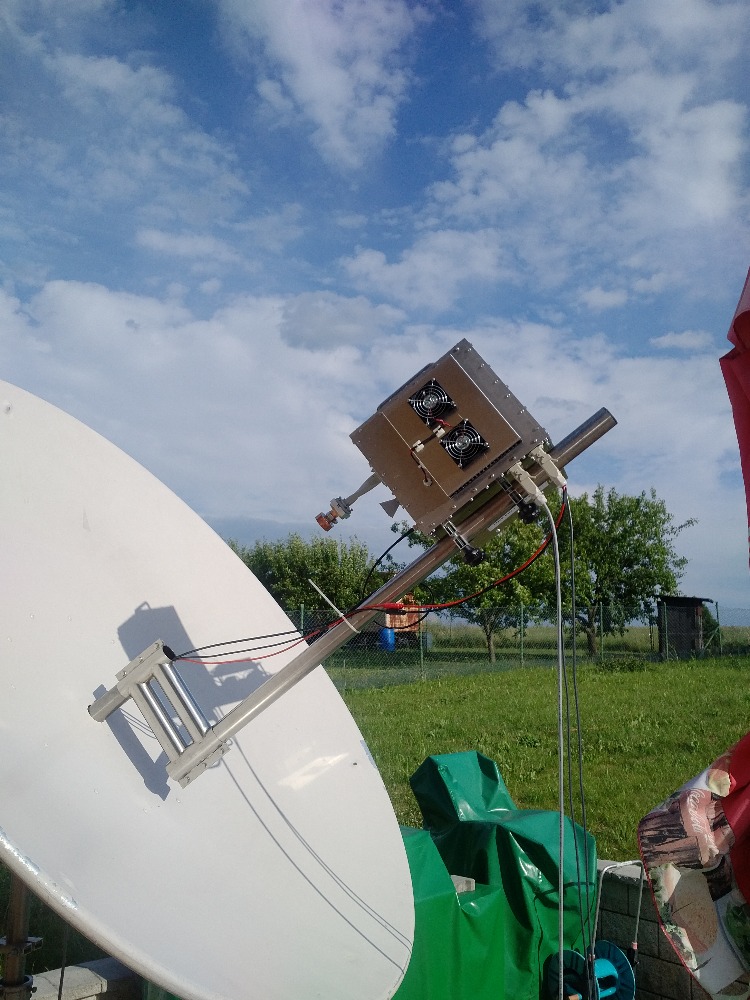

New 180cm dish and TRV for 10 GHz, 30W RF, 0,65dB N/F and Feed with Kumar ring

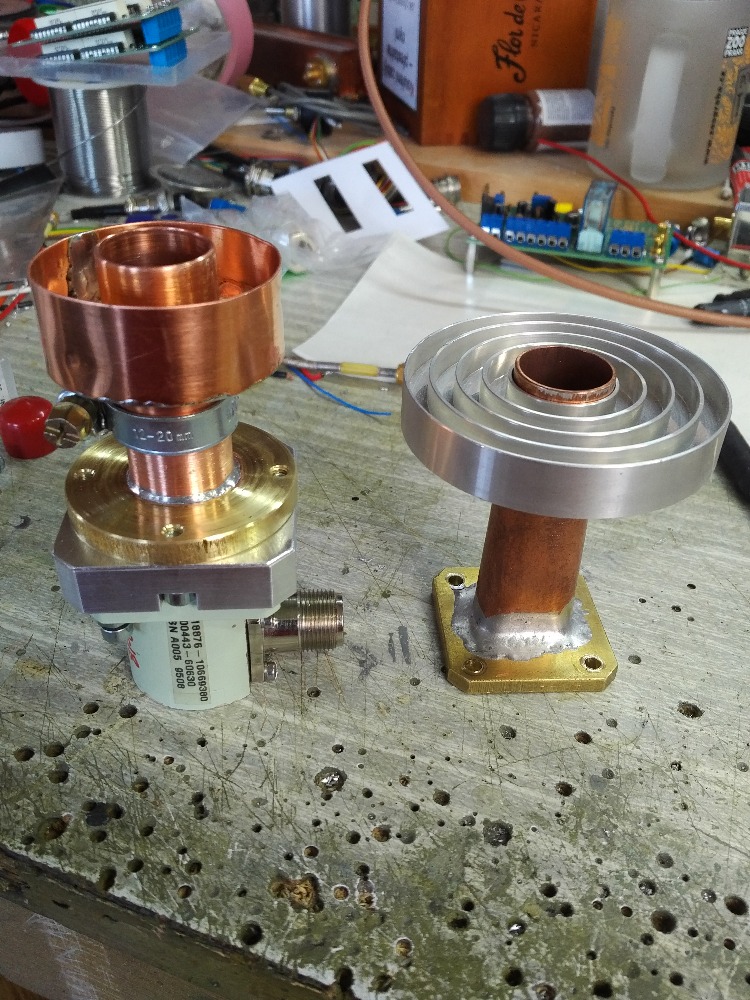

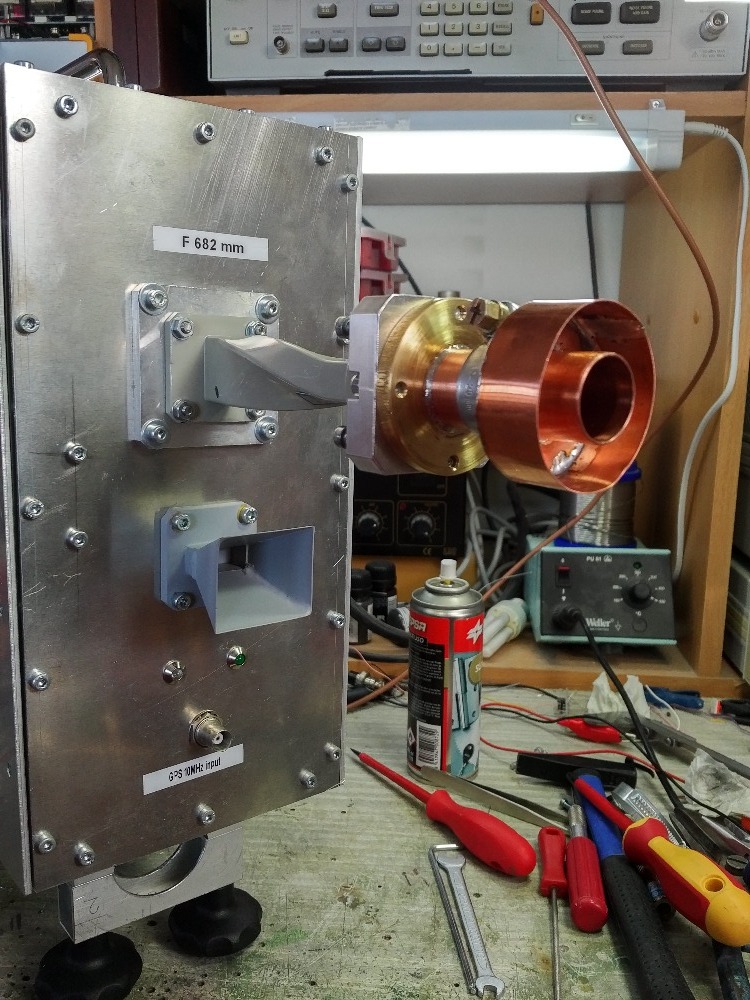

Comparison of two feeds - Kumar - Chaparral New feed with transfomation part

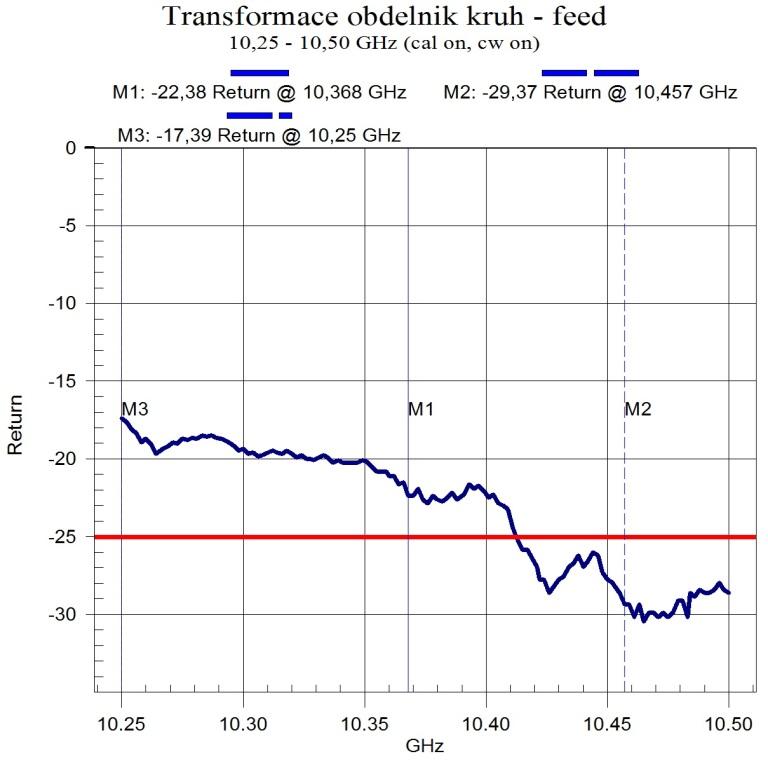

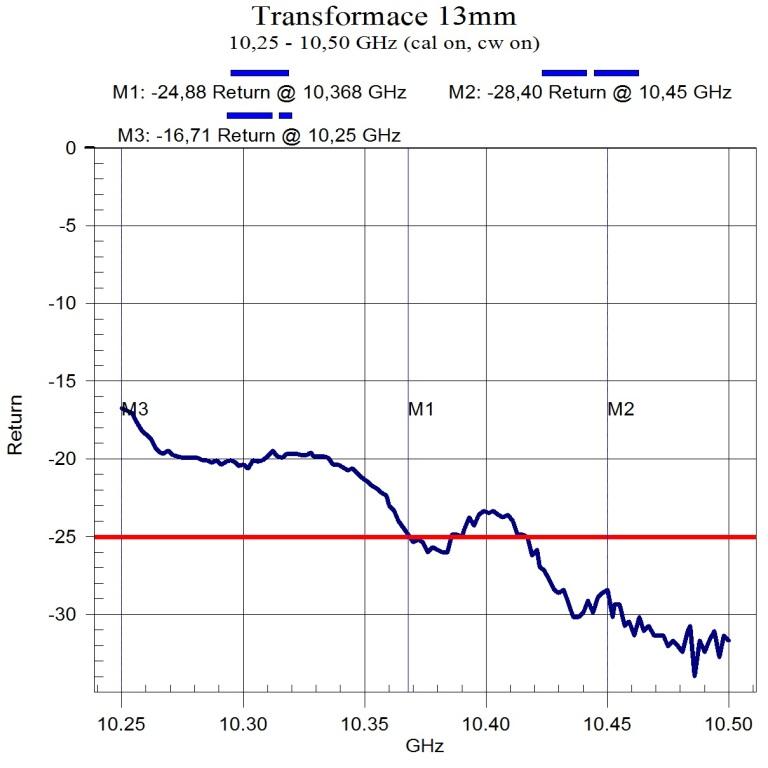

SWR of transformation from rectangular to circula waveguid 12mm wide SWR of transformation from rectangular to circula waveguid 13mm wide

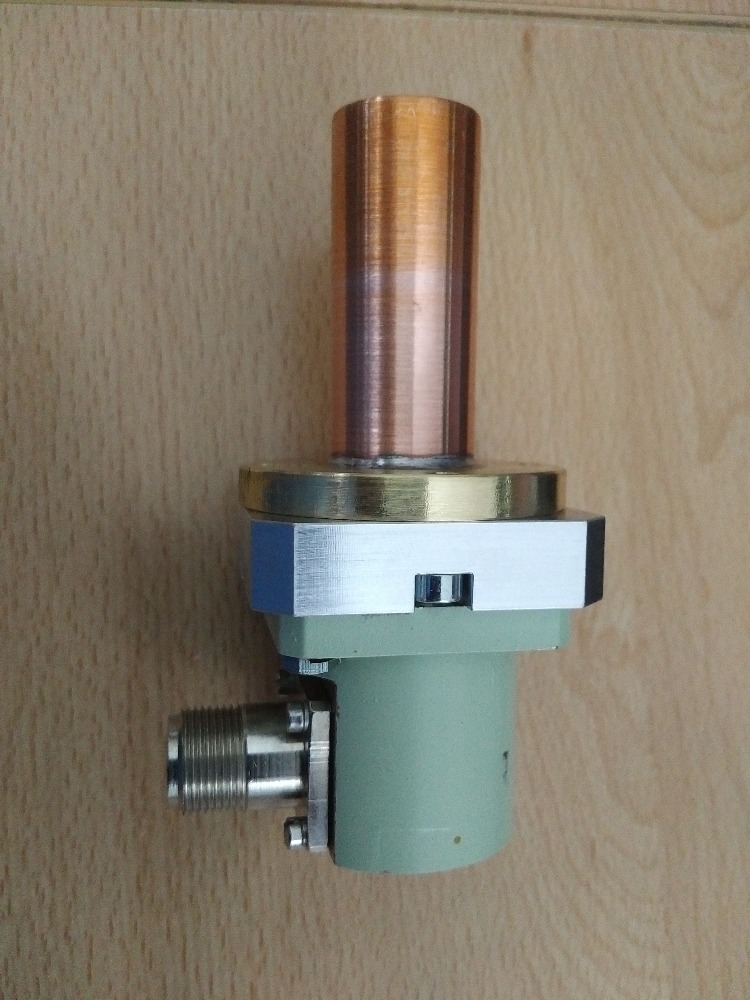

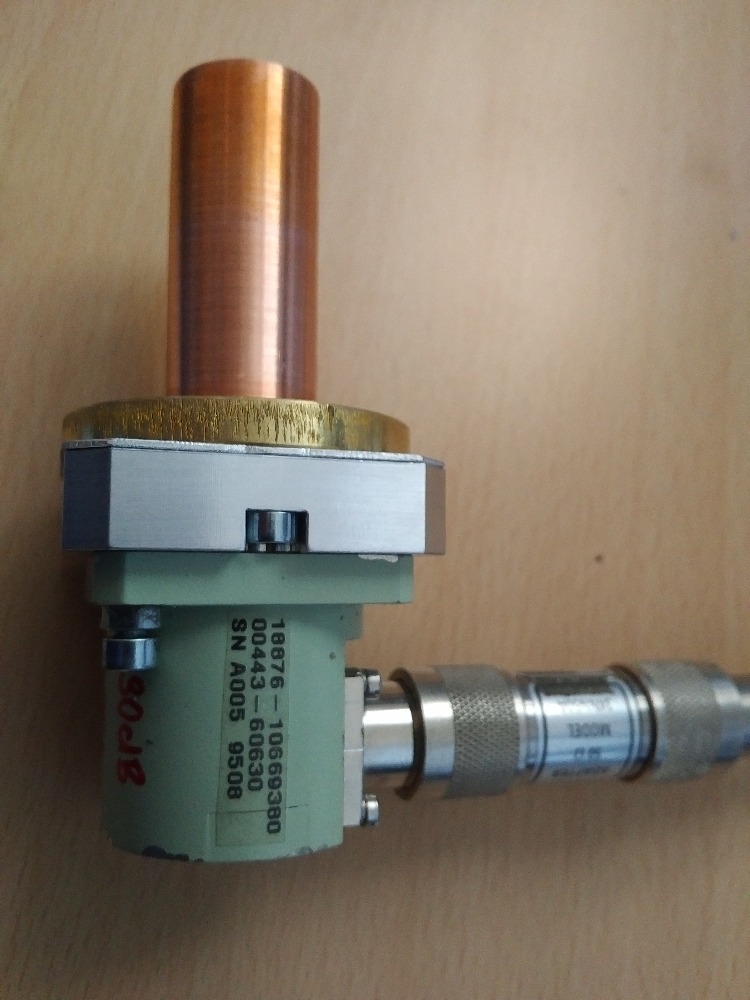

Transformation from rectangular to circula waveguid 12mm wide Transformation from rectangular to circula waveguid 13mm wide

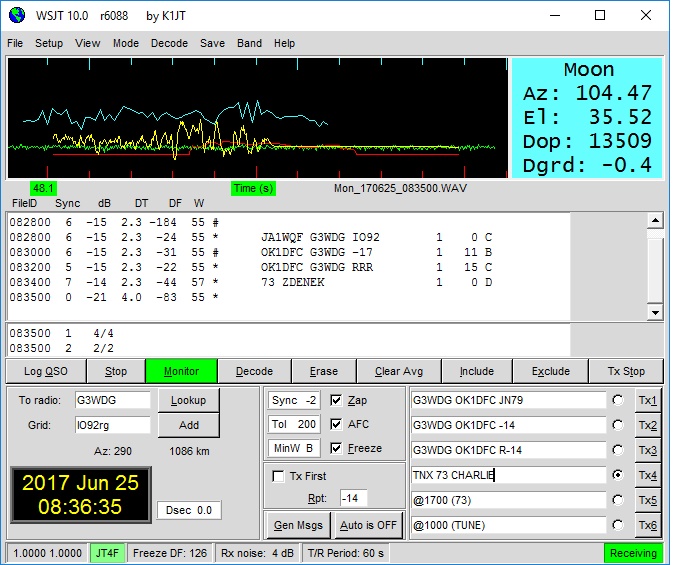

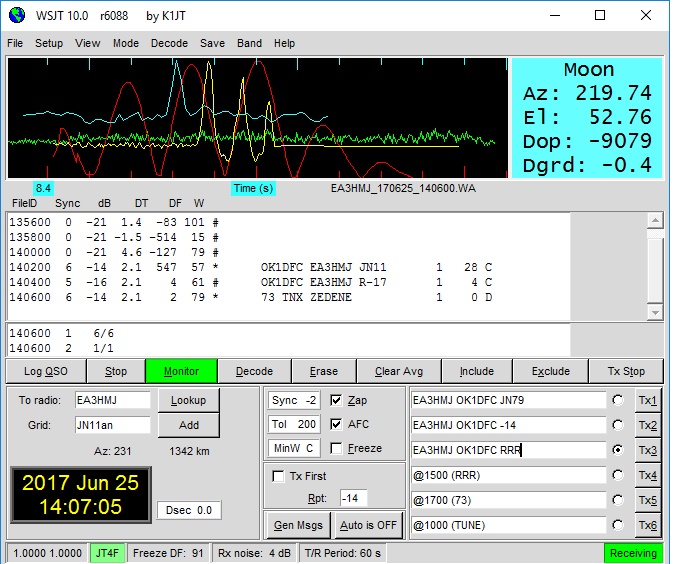

JT4F QSO EA3HMJ - new DXCC JT4F QSO G3WDG

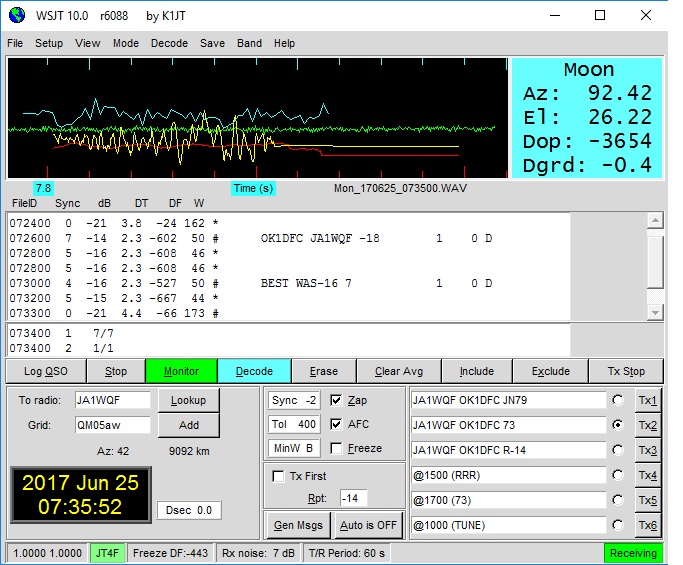

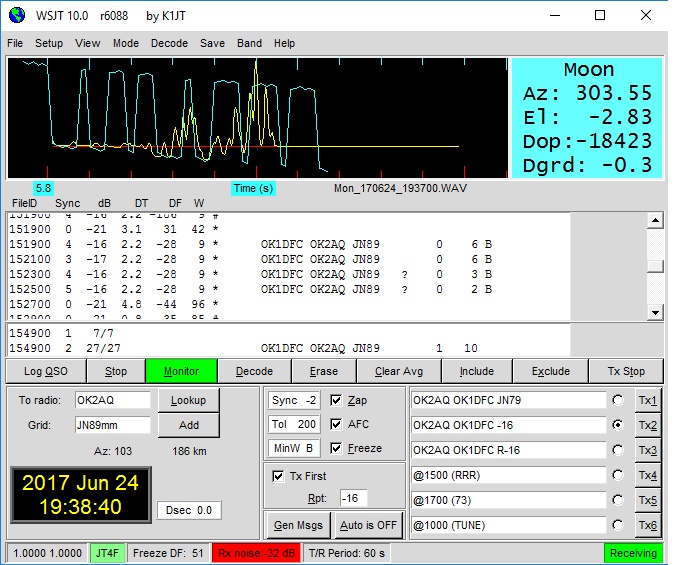

JT4F QSO JA1WQF - 10450 MHz RX JT4F QSO test with OK2AQ, 120cm offset 40W

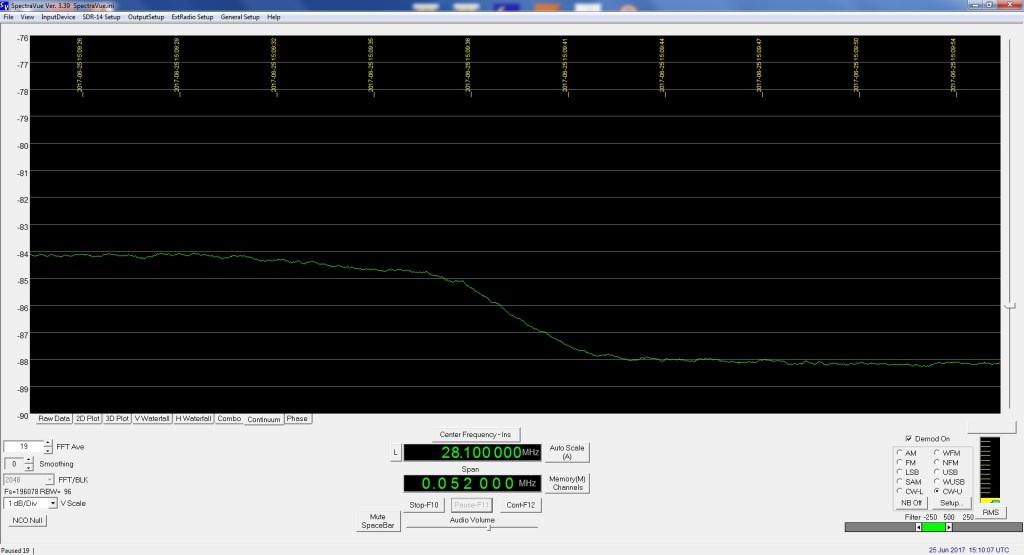

Ground to SKY noise 4 dB
Sun to SKY noise 10,8 dB

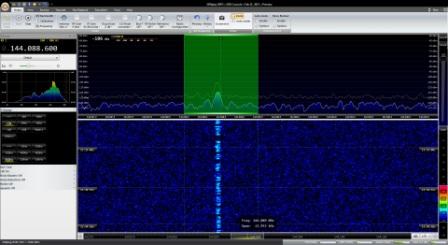

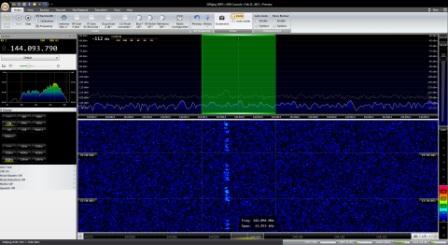

SP6JLW - CW CQ OK1KIR - CW CQ

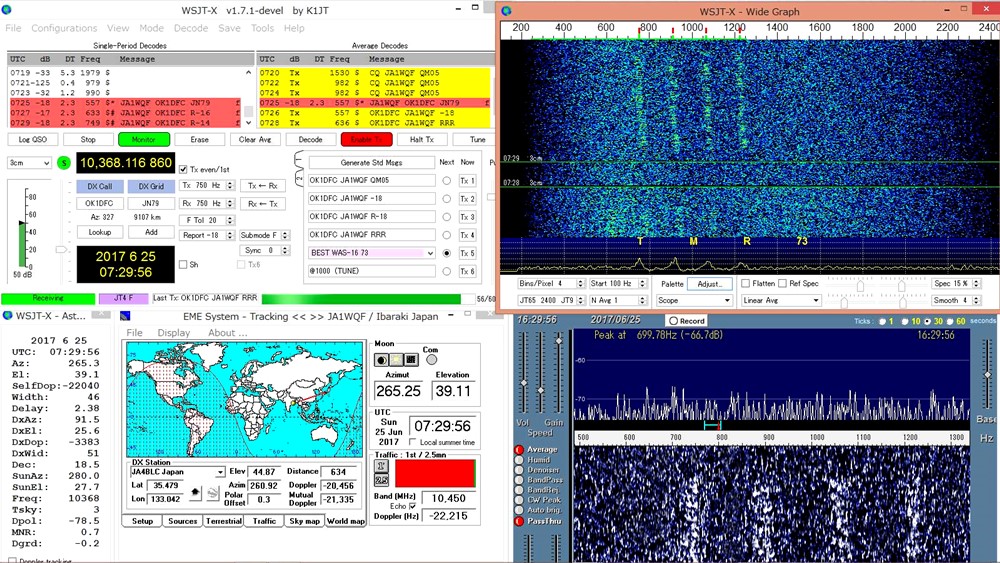

My signal received by JA1WQF in JT4F mode
