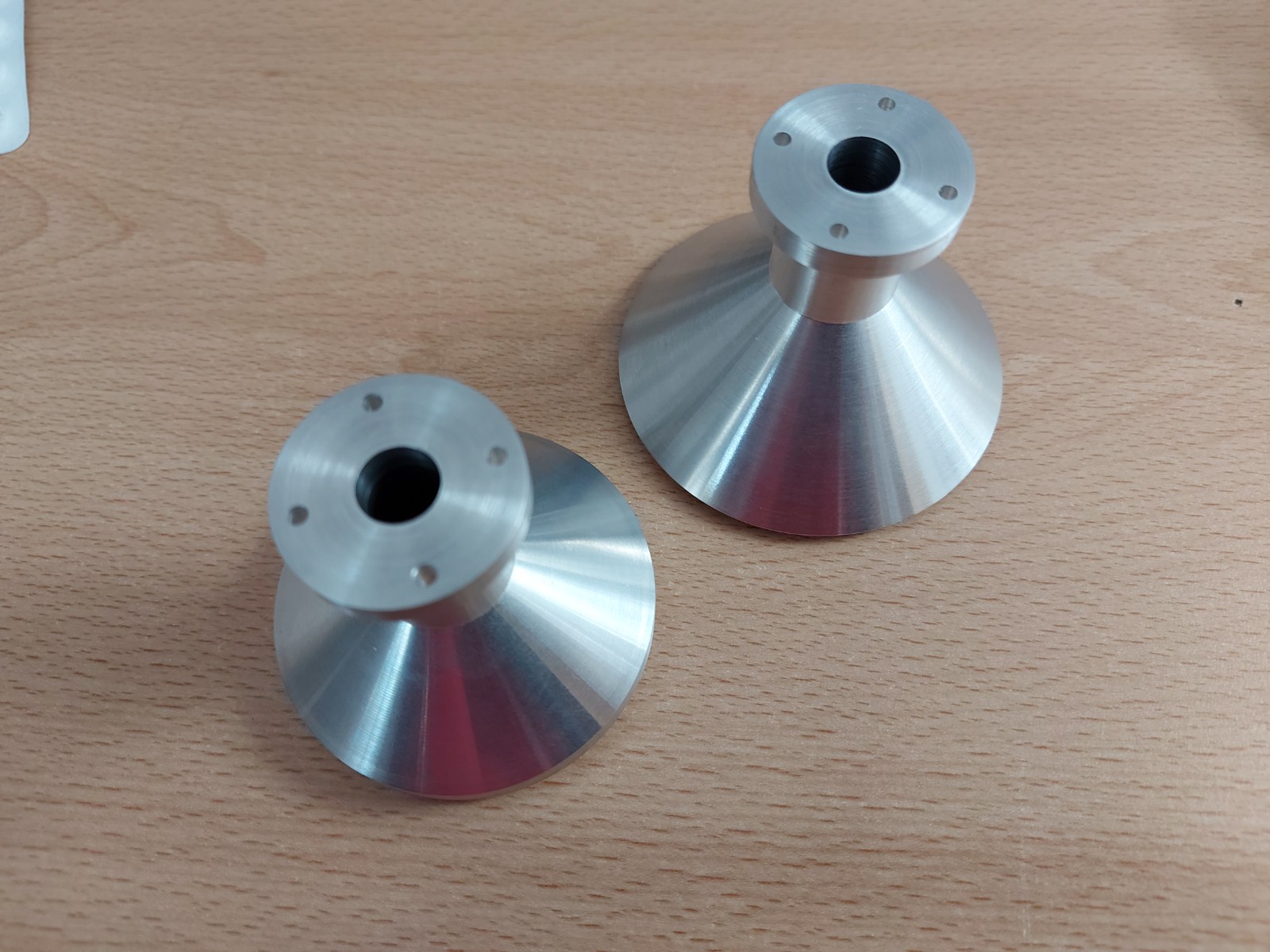

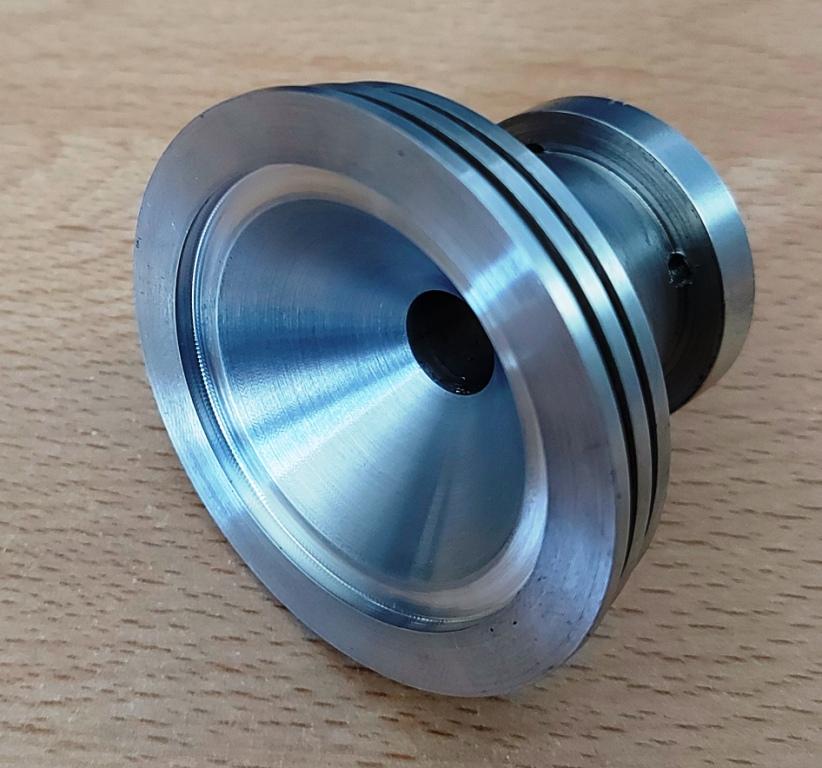

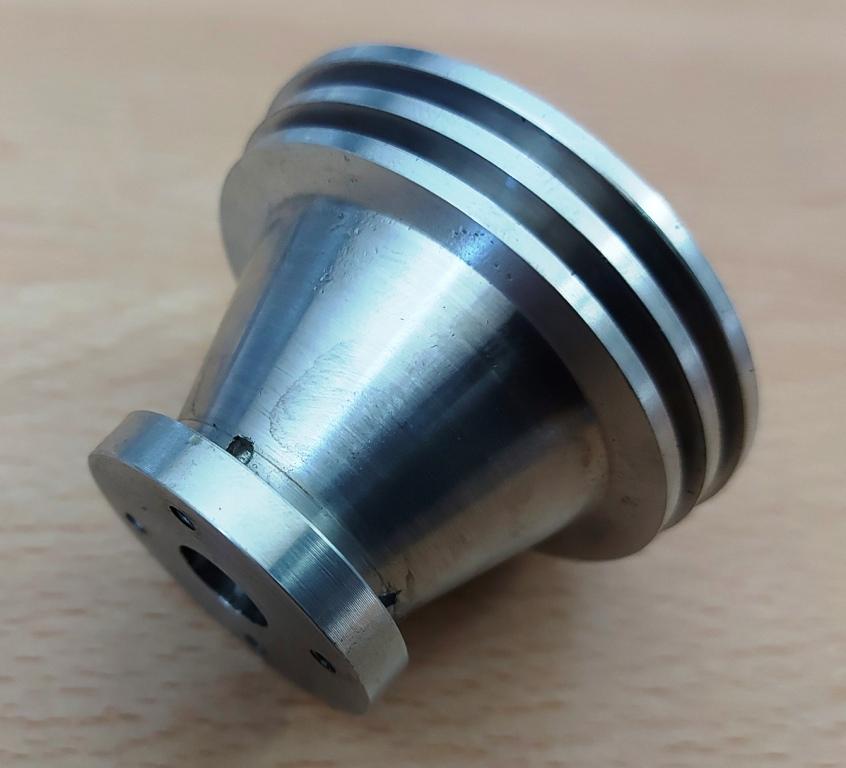

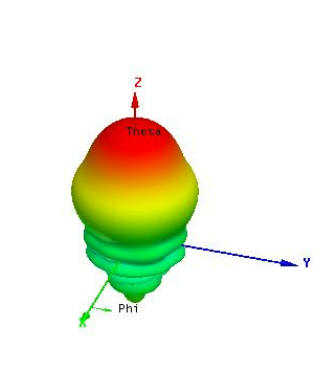

Final version of conical
feedhorn for offset dish F/D 0,6 design OK2AQ |
 |
 |
 |
|

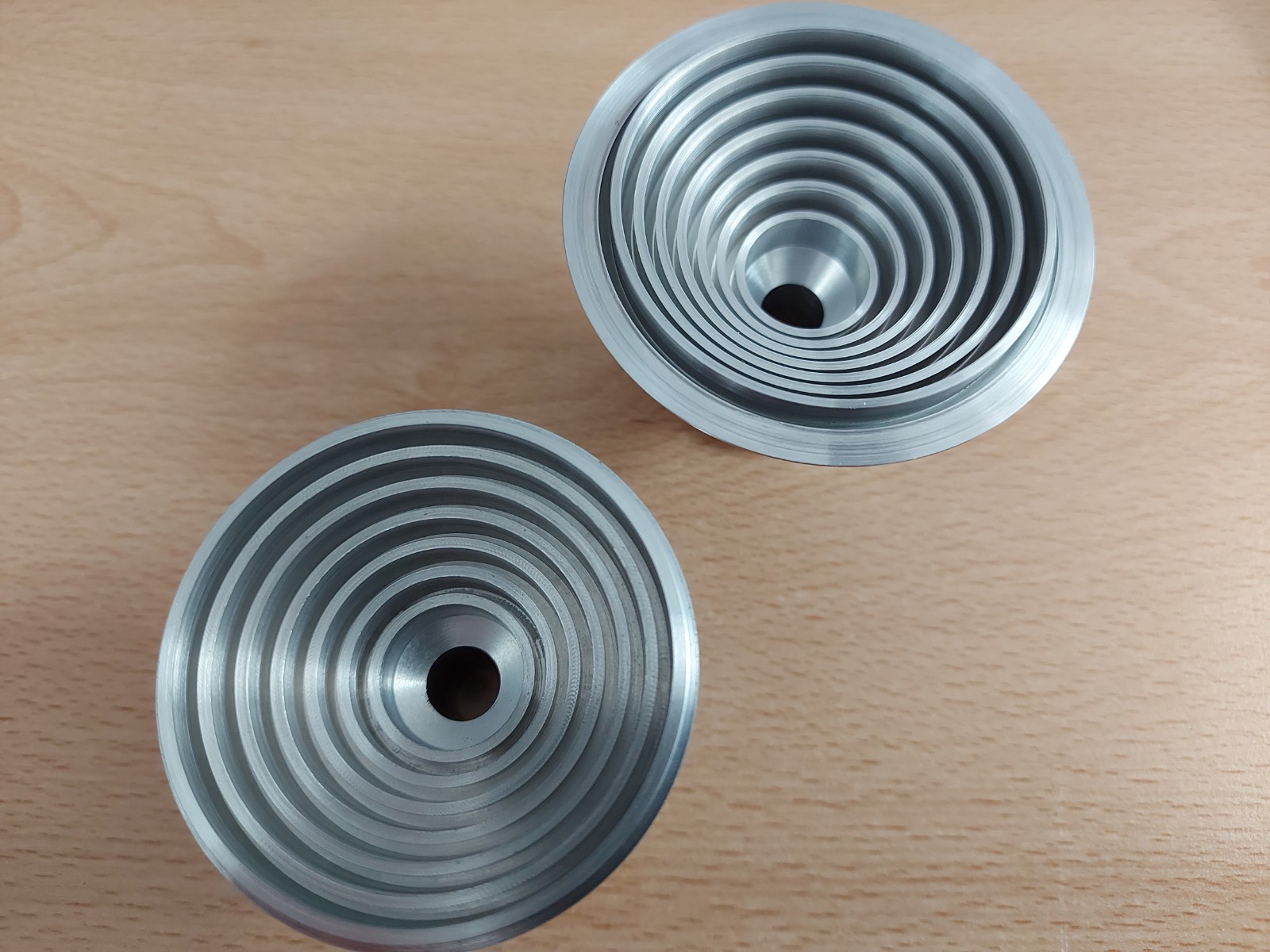

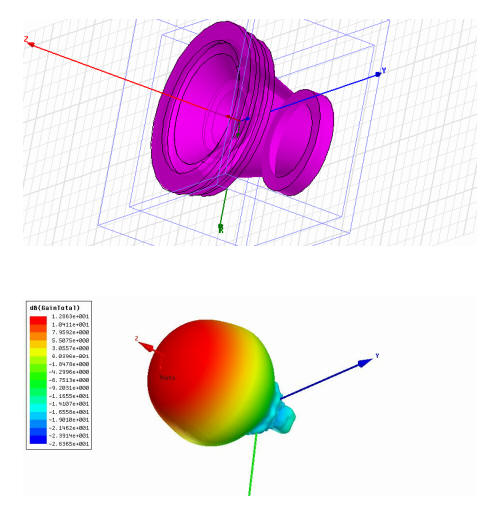

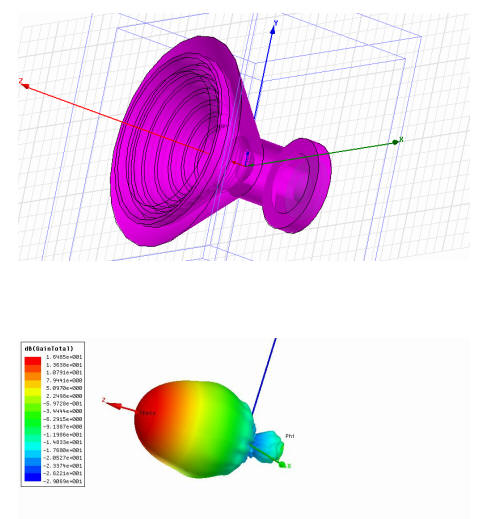

Final versions of two different types of conical
feedhorn for offset dish F/D 0,8 design OK2AQ |
|
|
|

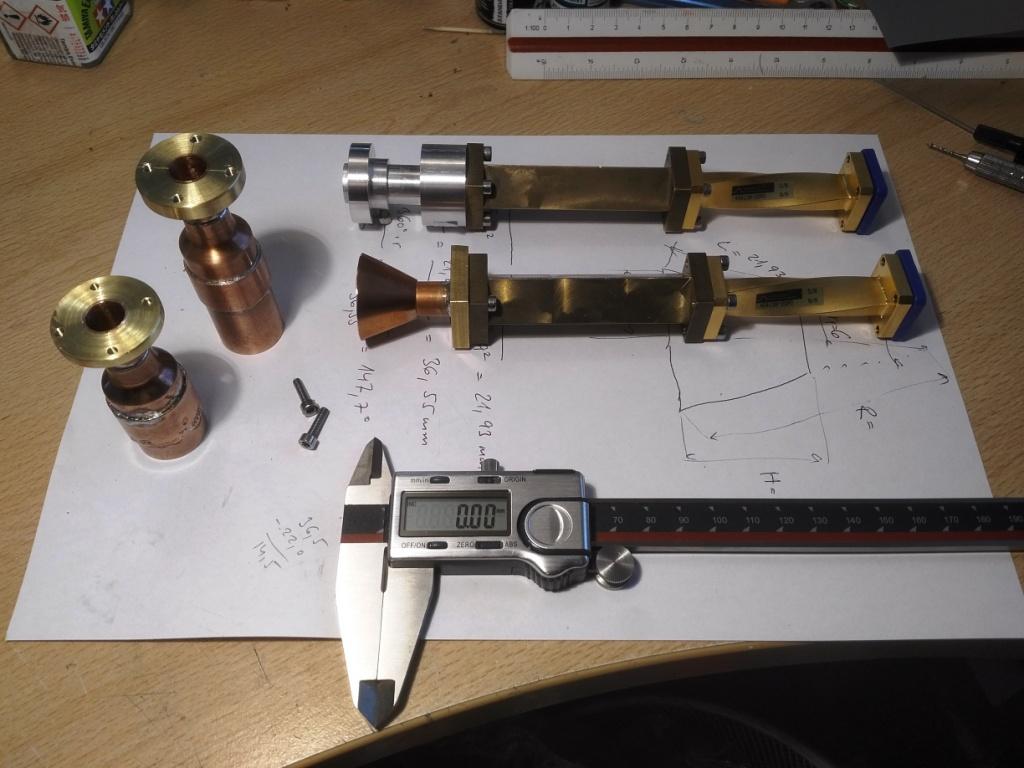

Set of feeds build for test of RX performance |
 |
|
W2IMU short, W2IMU long version, Horn
simulated by OK2AQ, DFC feed design for prime focus dish
1,8m portable |
 |
 |
|

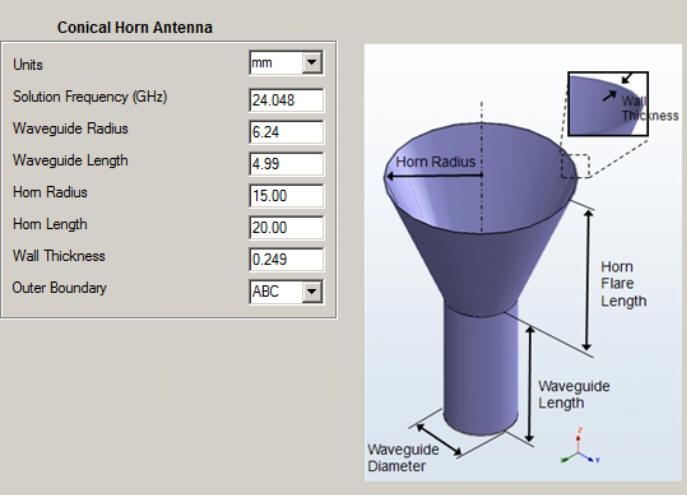

Conical horn, courtesy of Mirek OK2AQ |
|
|
|
WR42 twisted section
from H.pol to V.pol - Rectangular - circular transition

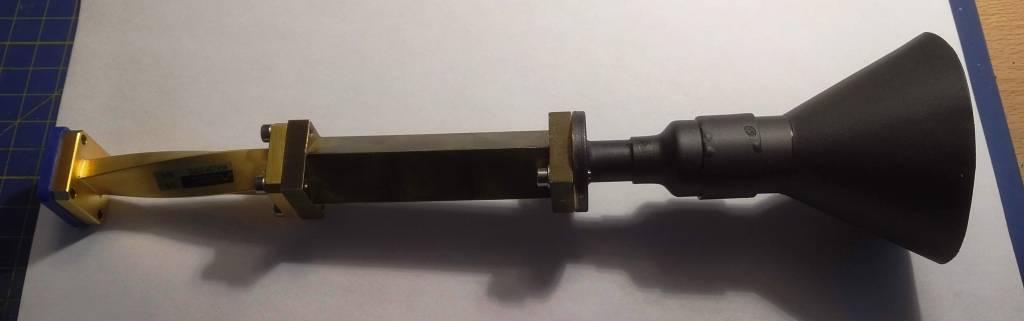

Militech - W2IMU short version with flare - SWR open space
-20dB
RX performance with extended W2IMU CS/SN
11,2dB CS/MN 1,5dB - SFU 66 |
|
|
|

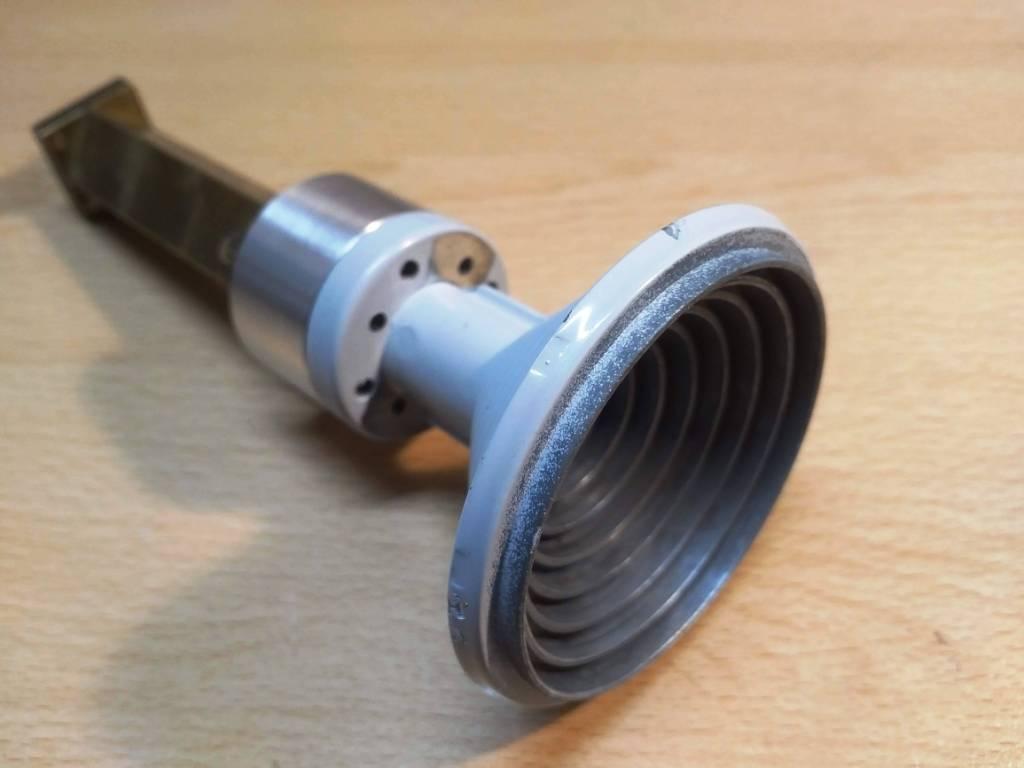

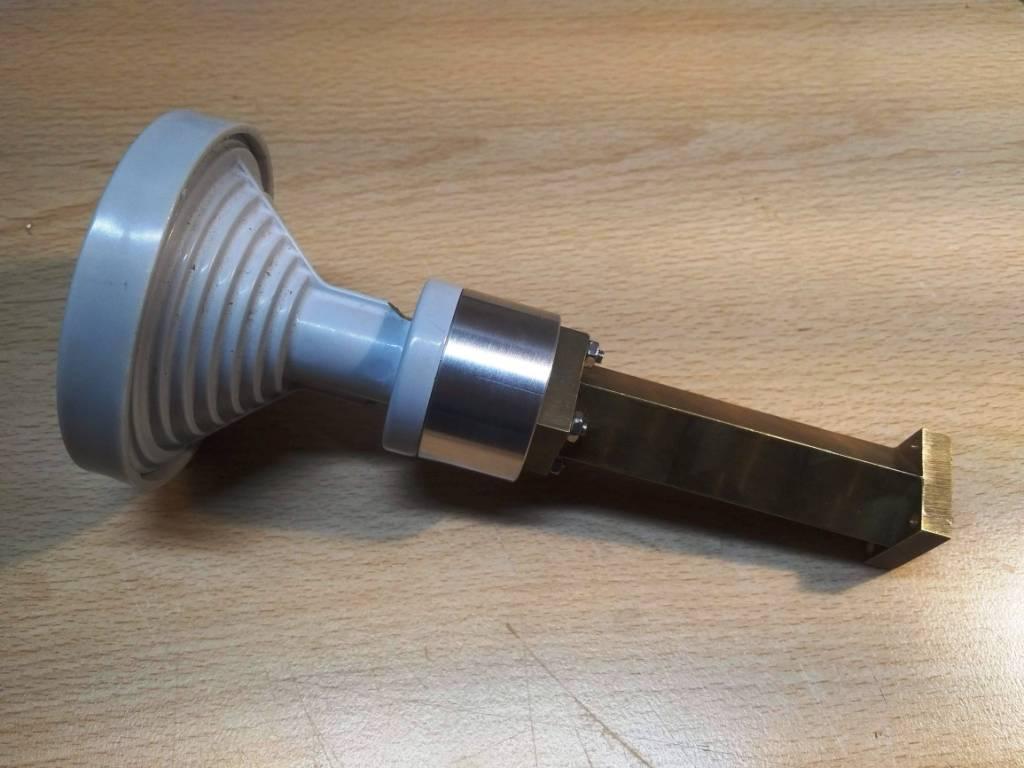

Professional feed horn gain 15dBi, Angle of
radiation pattern 70° for -3dB
RX performance CS/SN=12dB, CS/MN=1,8dB SFU 66 |
 |
|
View inside of corrugated cylindrical
horn |

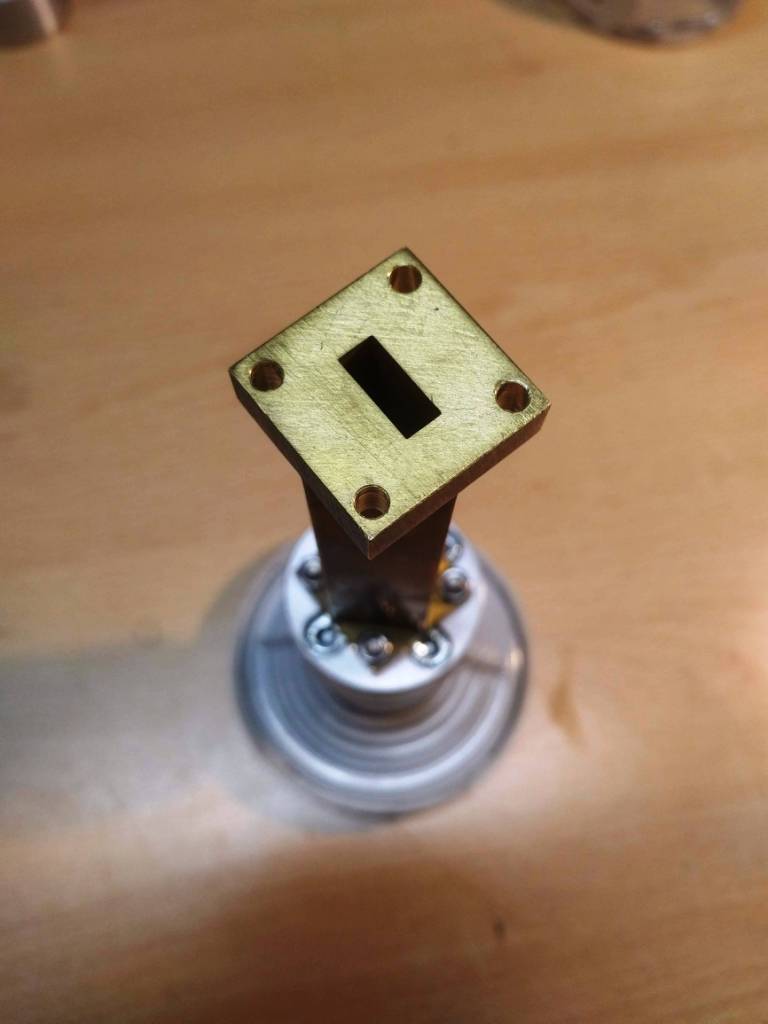

View in rectangular input of
rectangular-circular transition - Made by Militech |
 |
|
another view in corrugated cylindrical
input - follow with diameter transition and
rectangular-circular transition - Made by Militech |
