DUBUS 05/2016

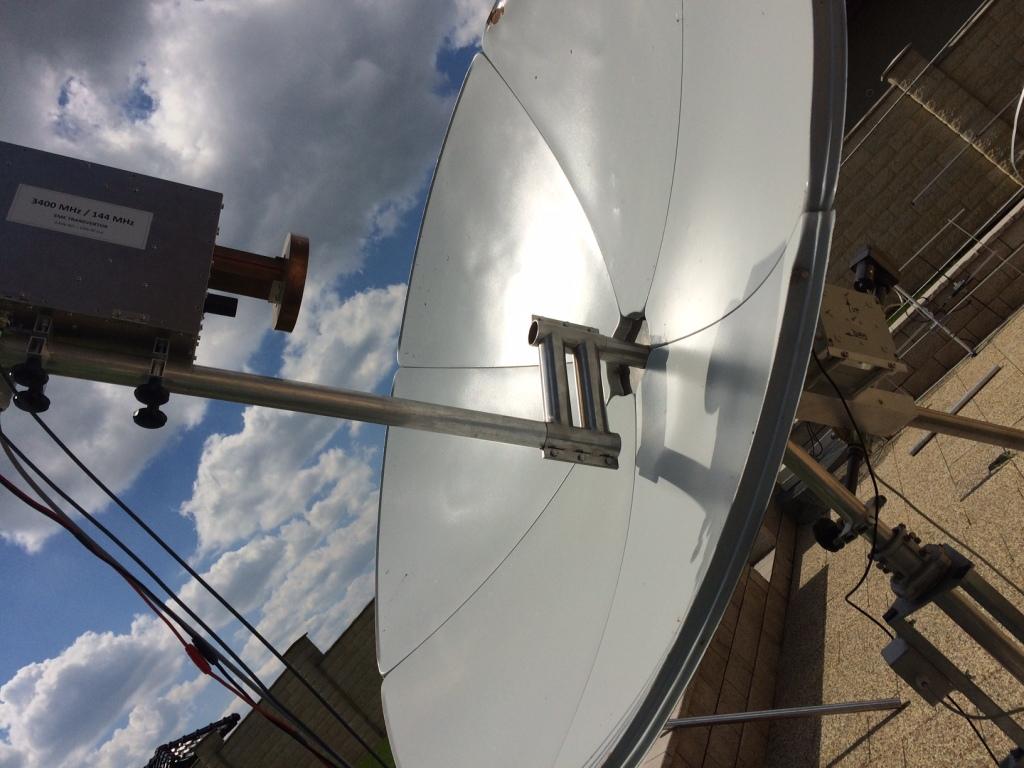

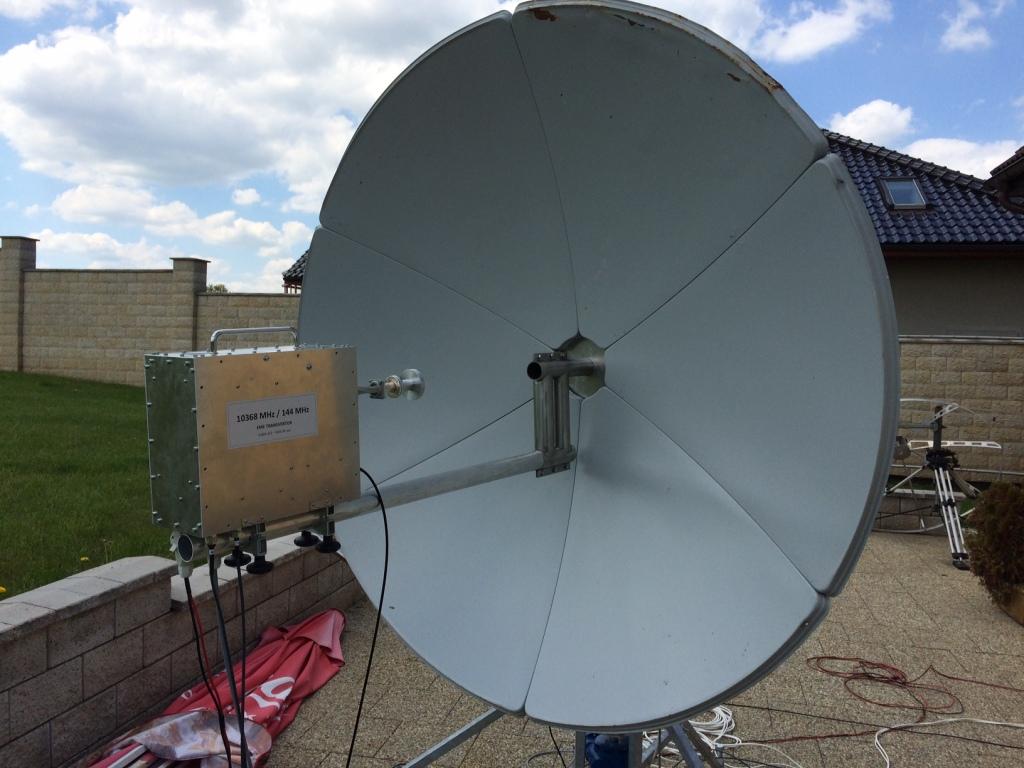

New 10 GHz TRV with PLL GPS locked LO in feed point of 180cm dish

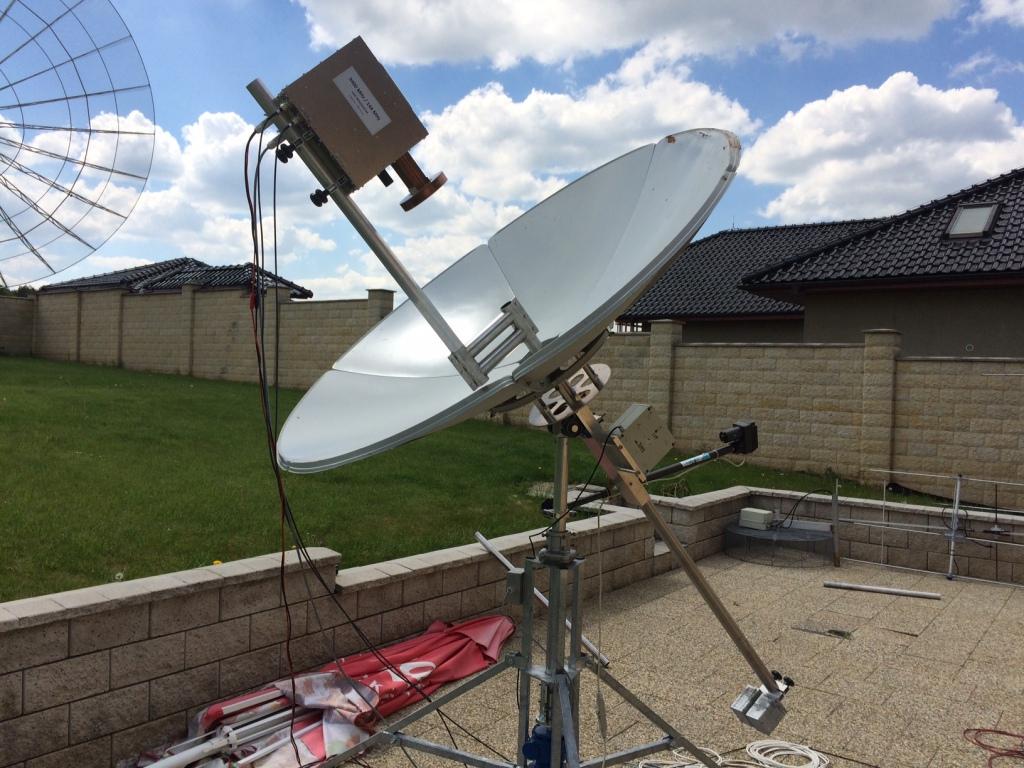

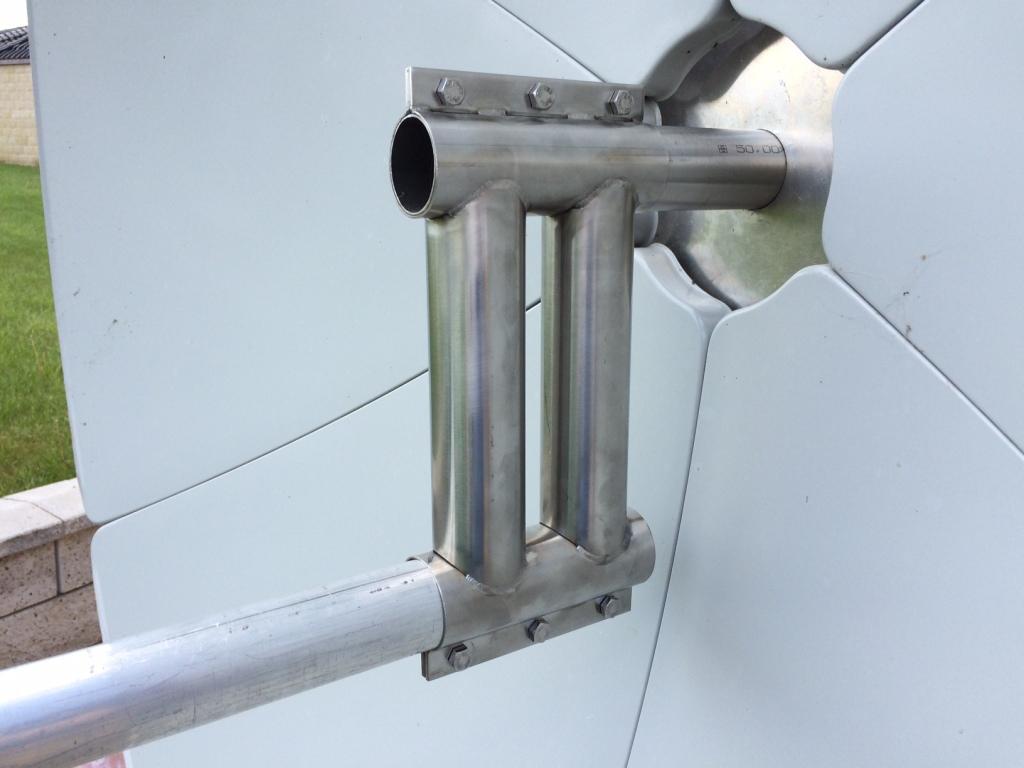

New system of installation feed part, easy to mount dish as "one man show"

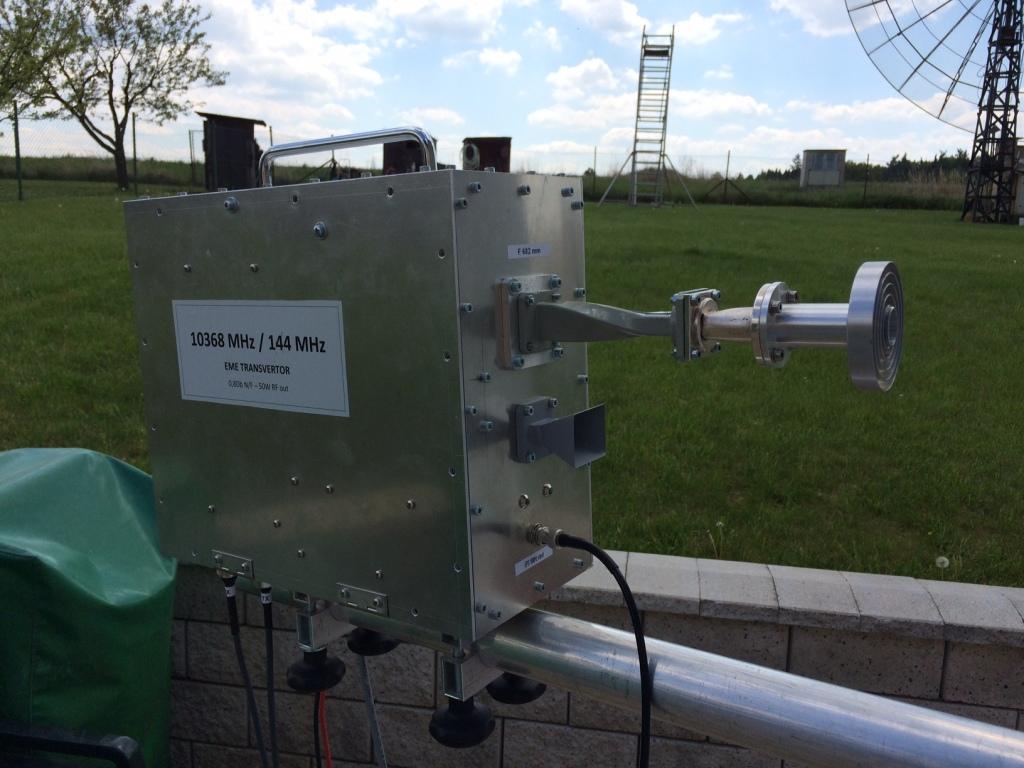

Detail of new 10 GHz TRV in feed point - vertical polarize feed due to 90° twist waveguide





Two pages showing also test of 3,4 GHz TRV with this small portable setup. This small solid dish giving almost same parameters as 3,2m mesh dish, which I am using for portable too.

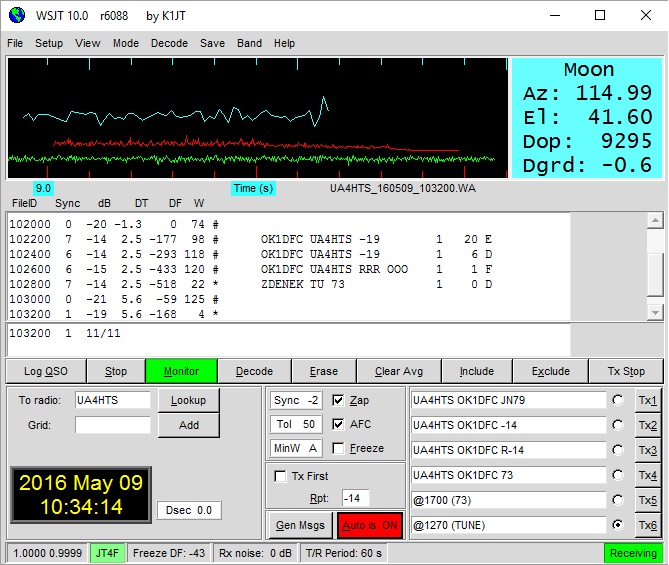

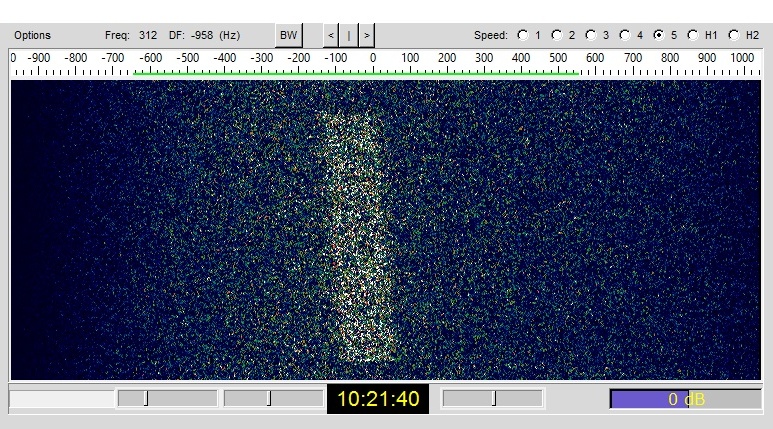

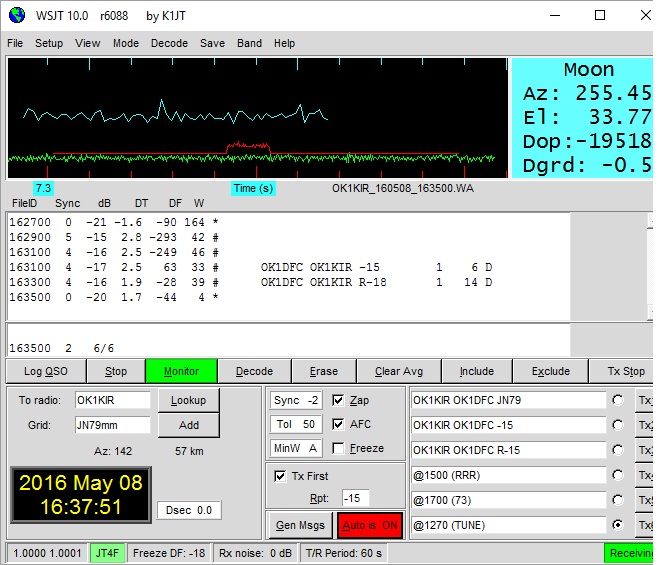

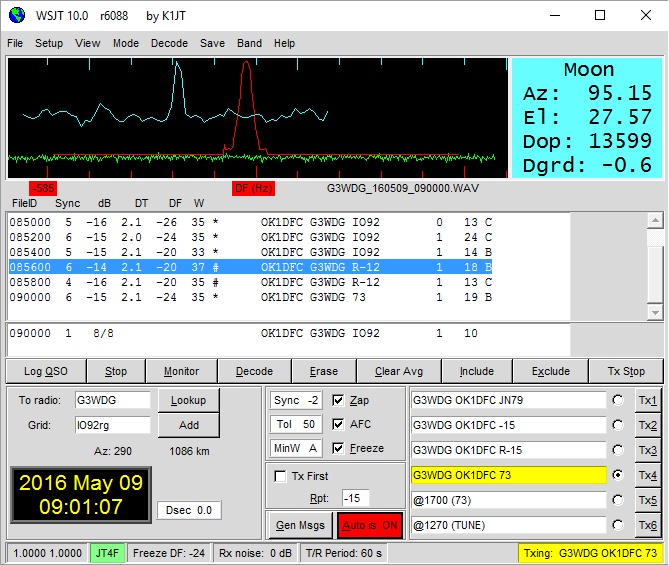

Screenshots of QSOs made by 10 GHz band, water fall showing spread on 1270 Hz tuning signal from Toly UA4HTS, even so big spread we were able to work QSO easy by JT4F
