47 GHz TX / RX switch

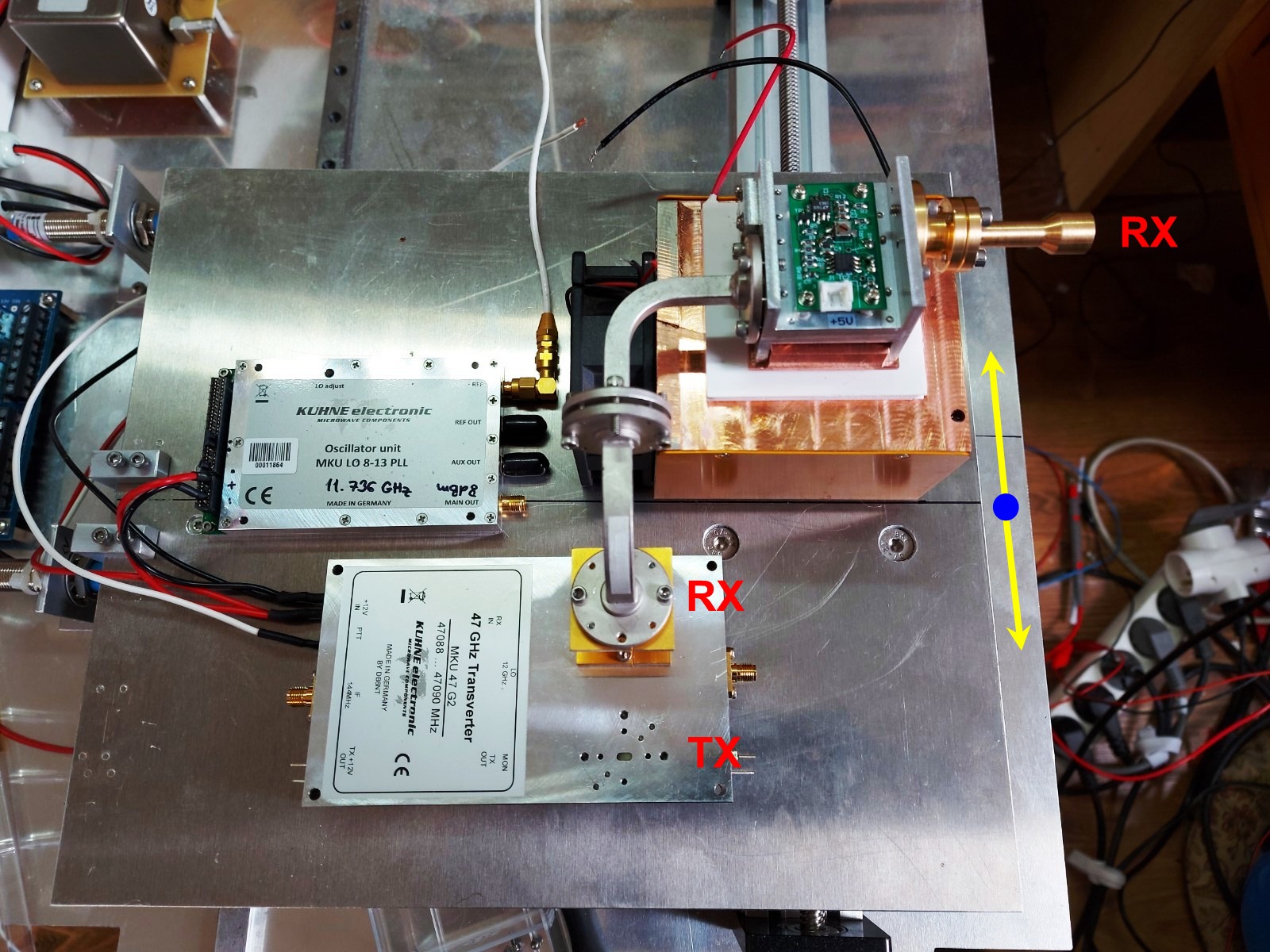

Whole platform of 47 GHz system for installation in the feed point of offset dish. Platform with transverter and TWO feeds RX/TX is moving by step engine from and to focus point under Arduino control unit. Positions are check by sequencer and prevent TXing before RX feed is not covered and safe of RF in the dish. On top is visible screw, which "switching" RX/TX. For moving is used system from the 3D printer with very high accuracy of position control.

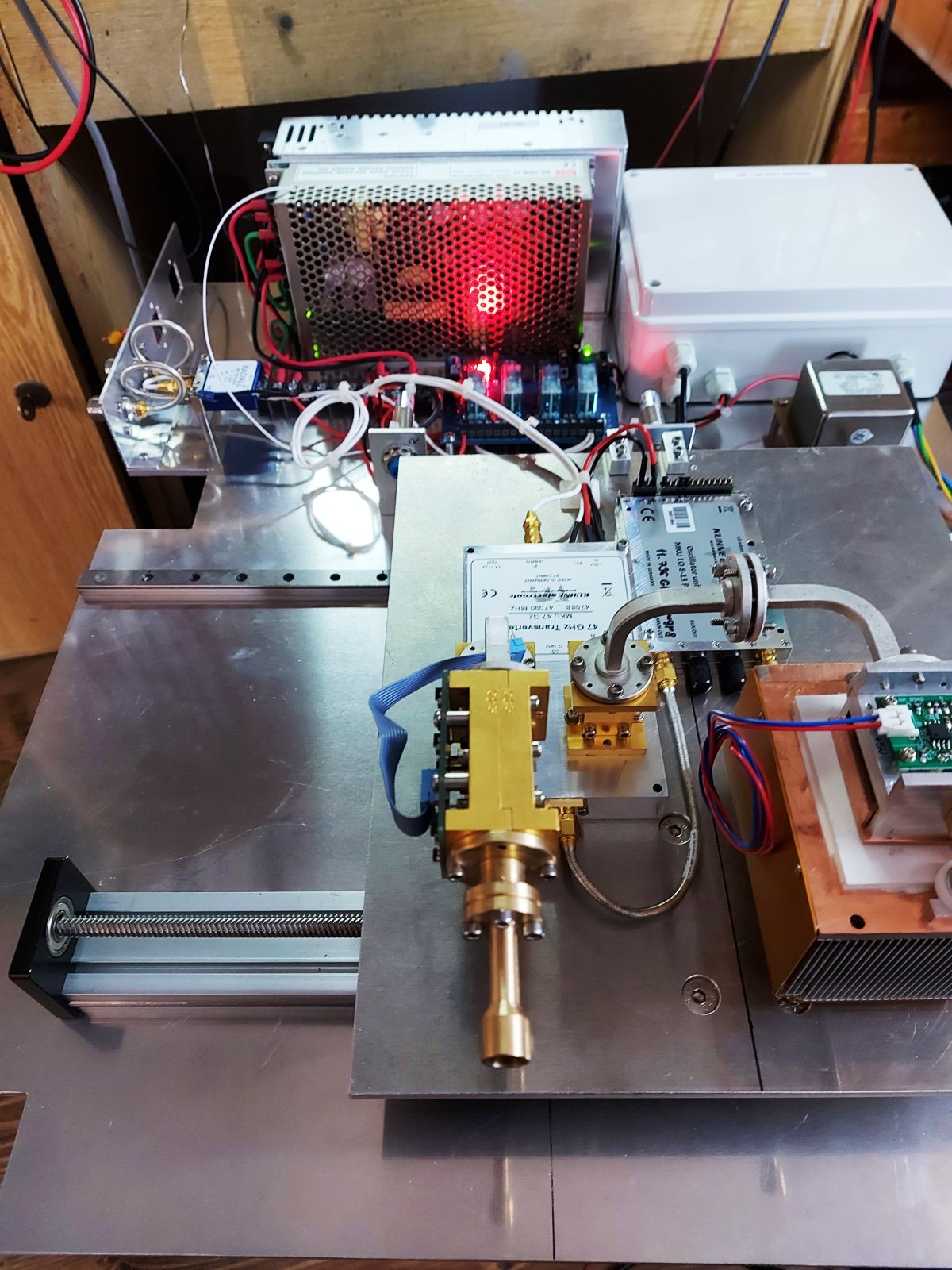

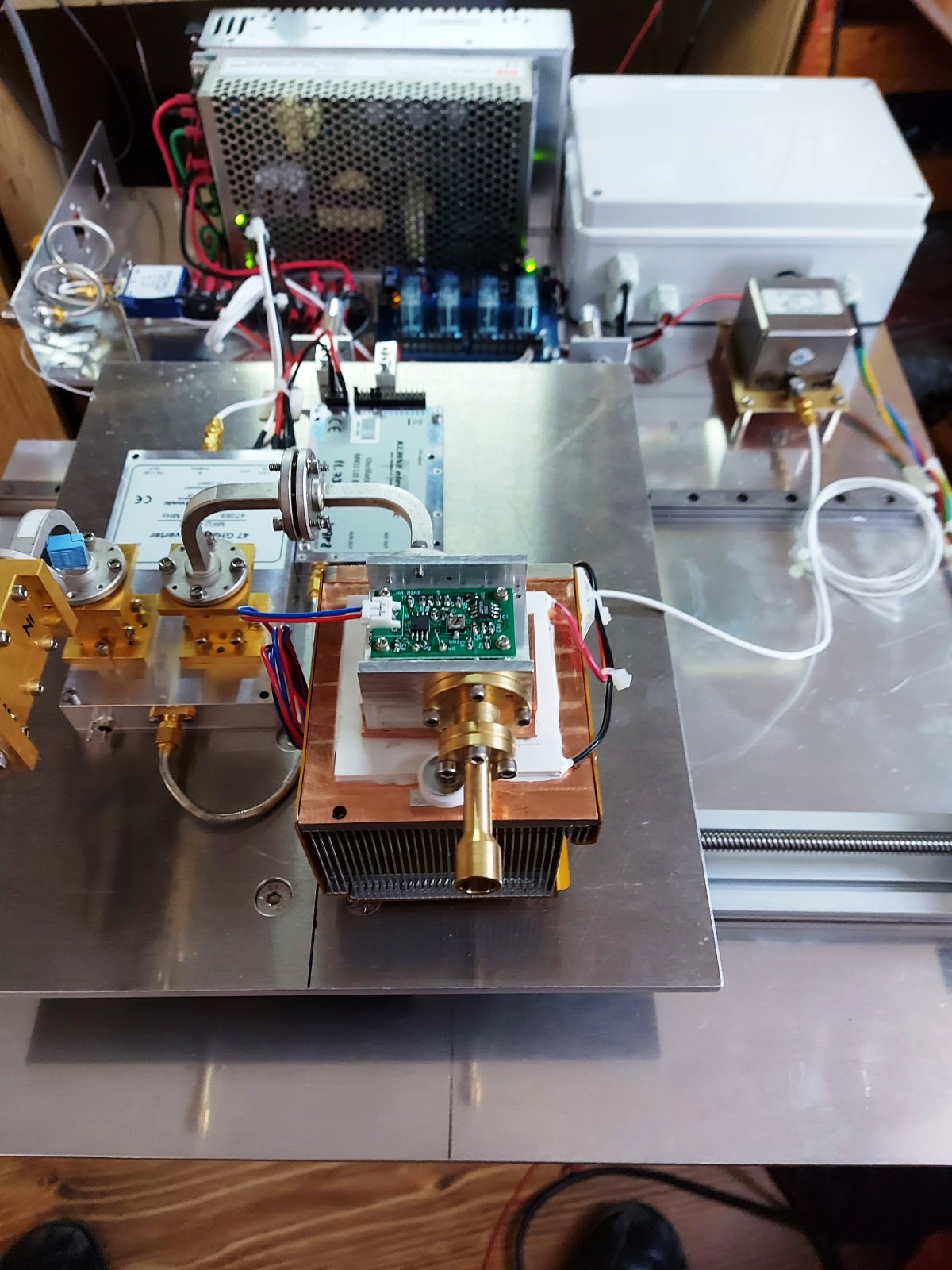

RX position - FEED and LNA and Peltier cell                                                TX position FEED and 120mW SSPA

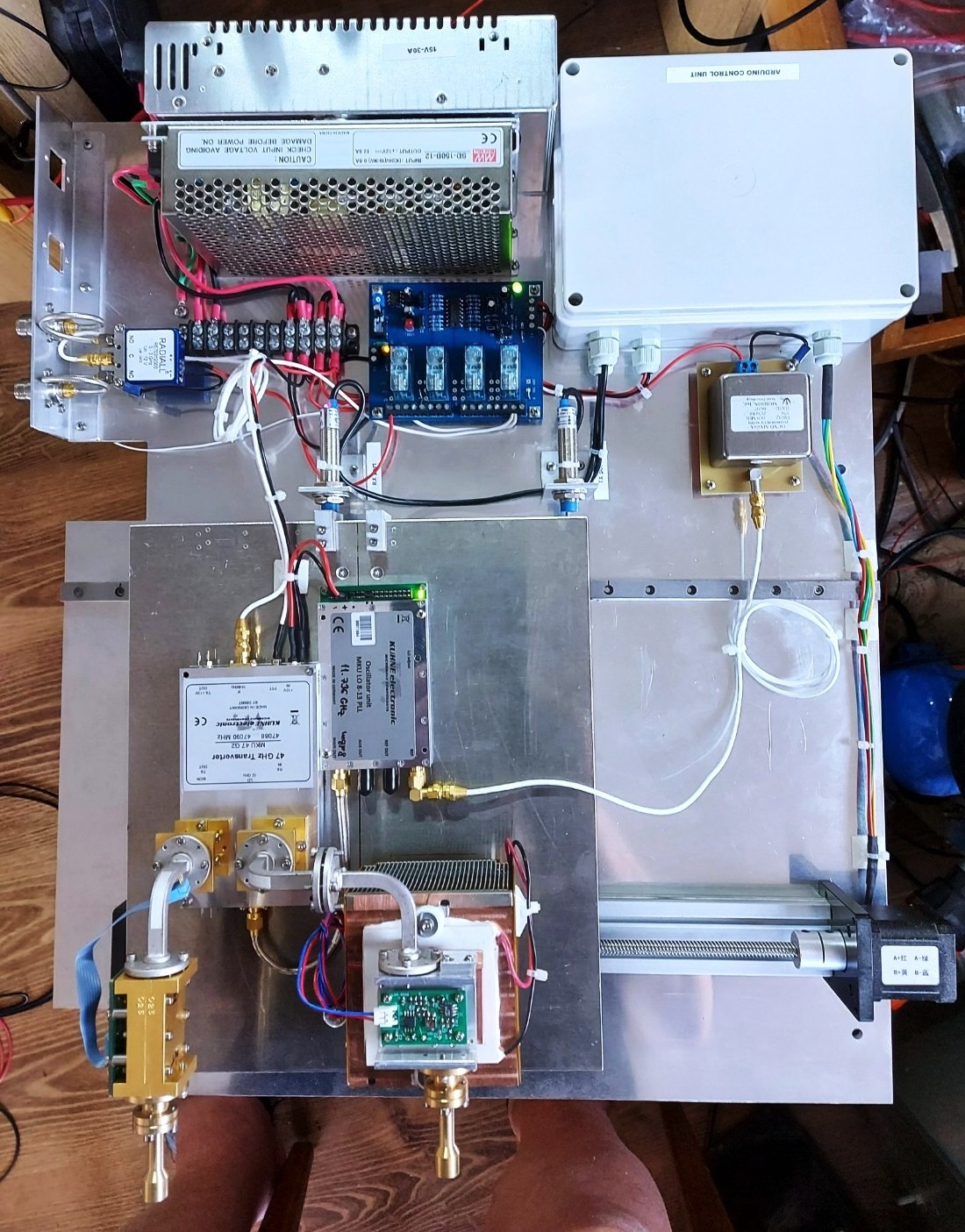

TRV from TOP - SSPA still missing :-)

Arduino control switch

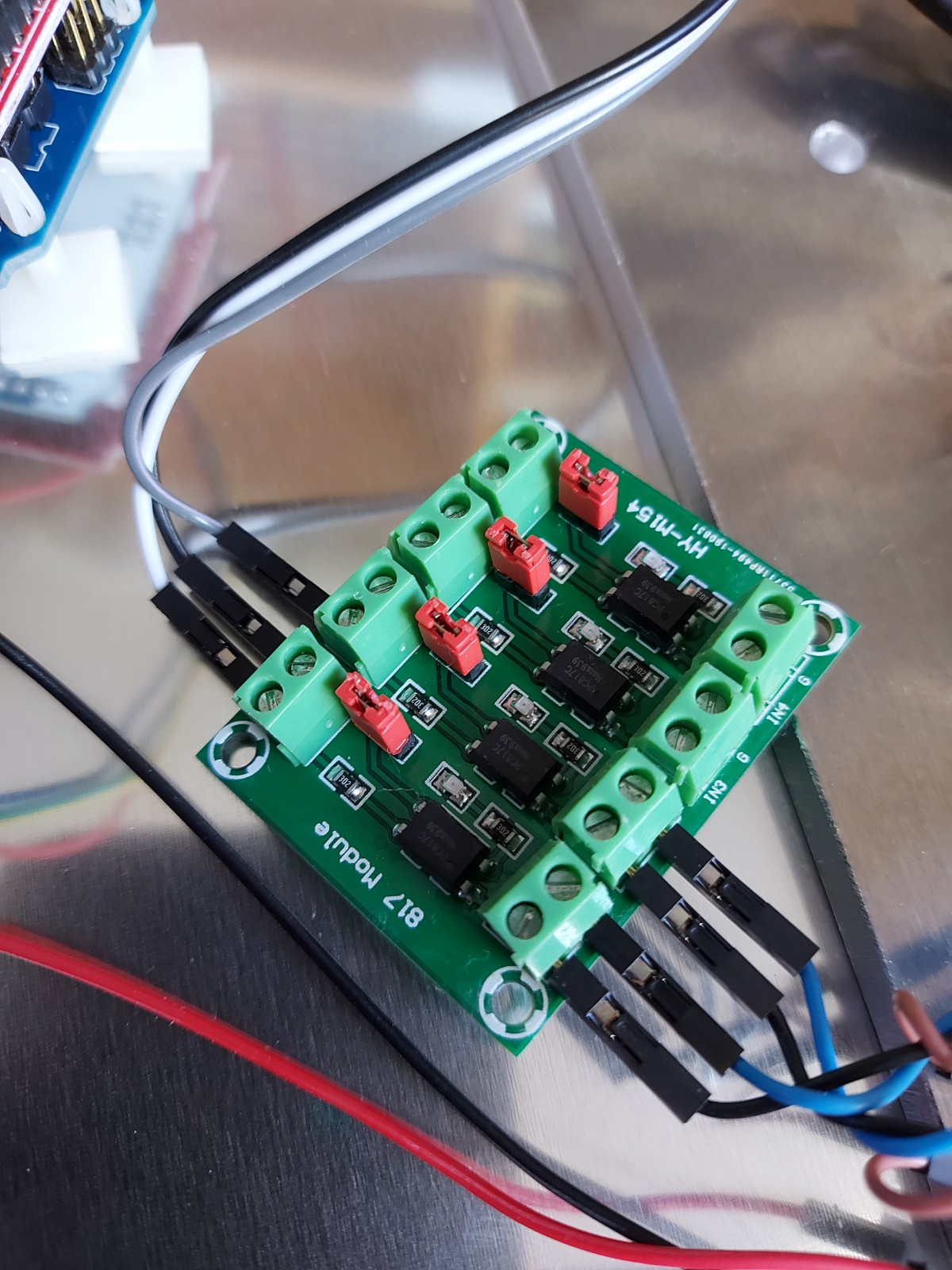

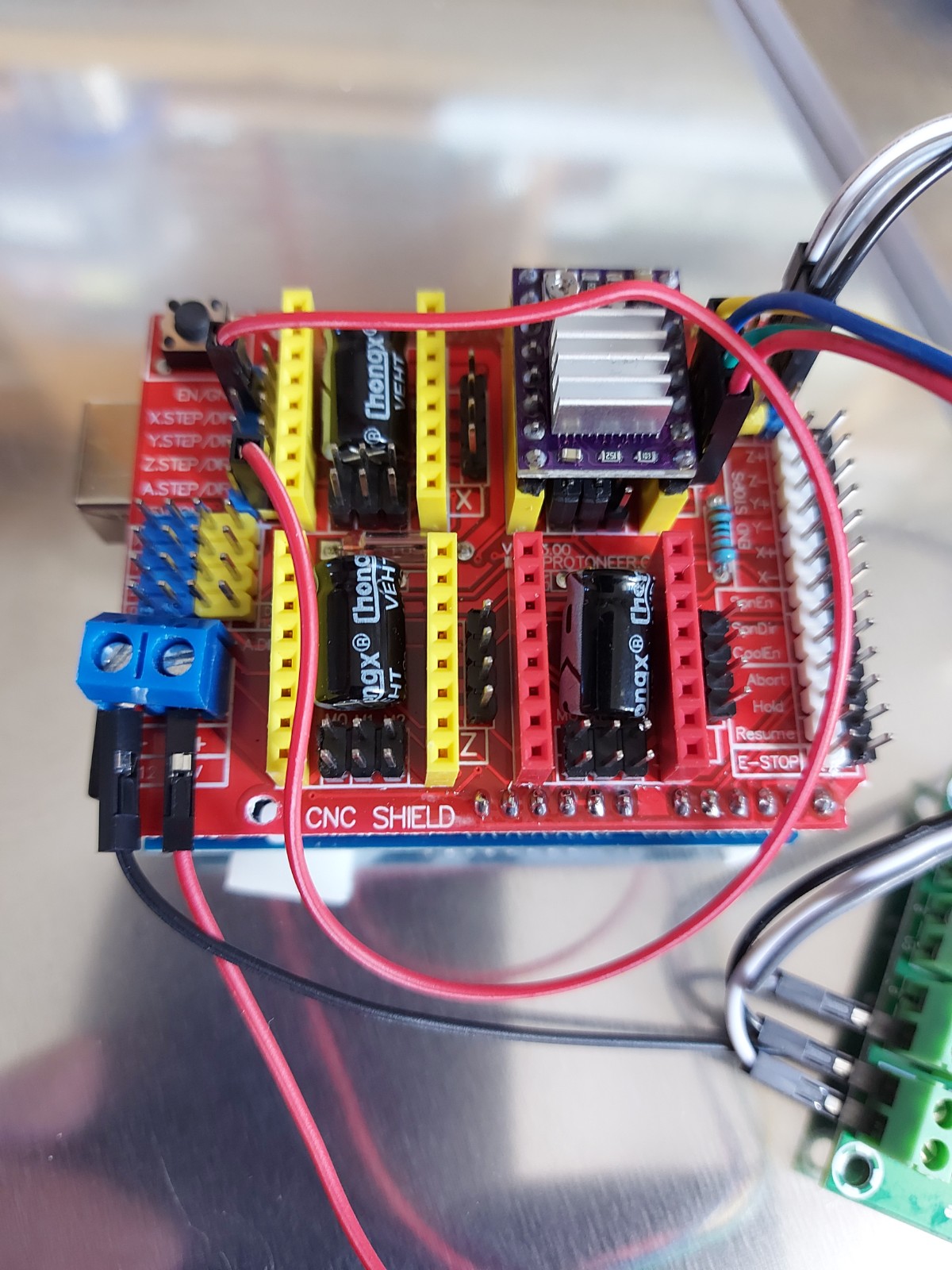

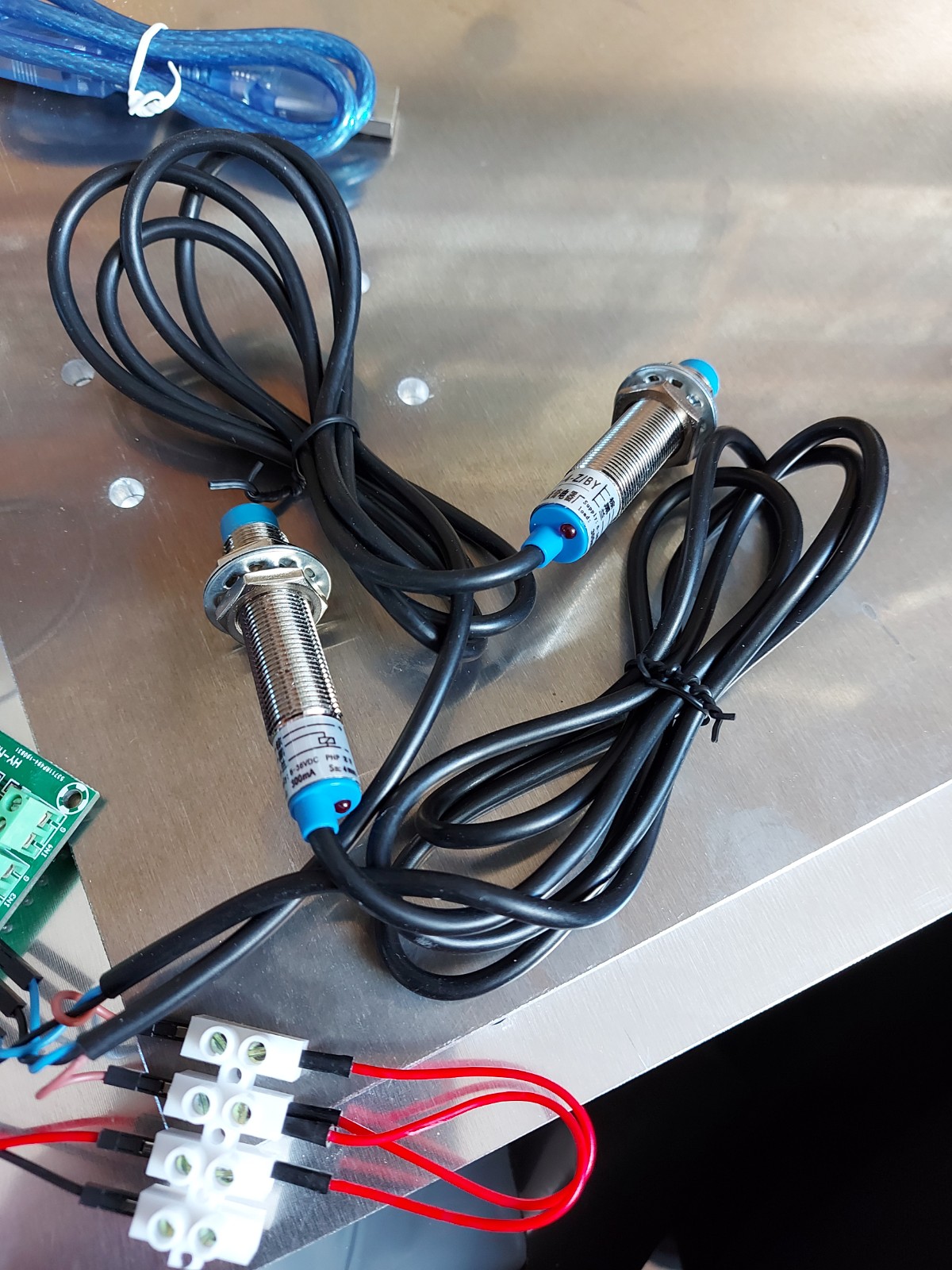

ARDUINO PCB basic platform Optical switch control Optical sensors
