47 GHz TRV 2nd. gen and RX test






Measurement results 10/05/2024

Sun - 9,76dB - Moon 1,12 dB

Measurement results 05/05/2024

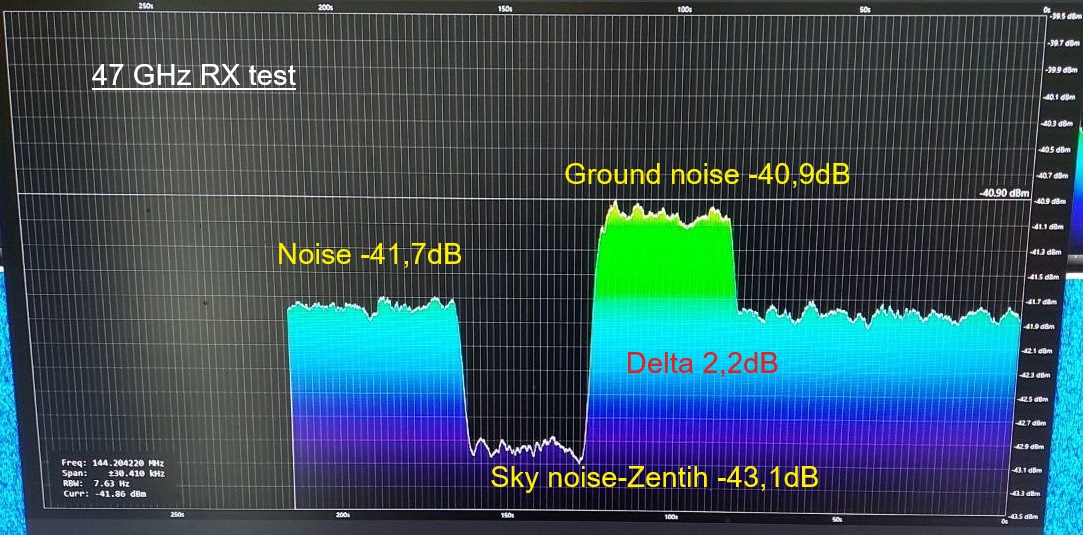

SKY/GND = 2,2dB



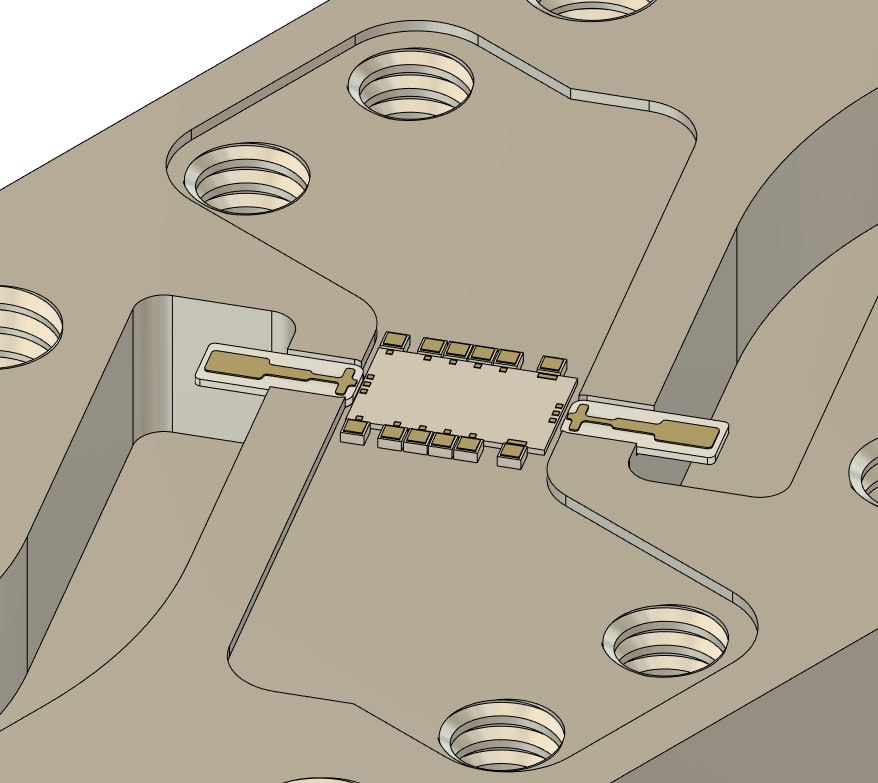

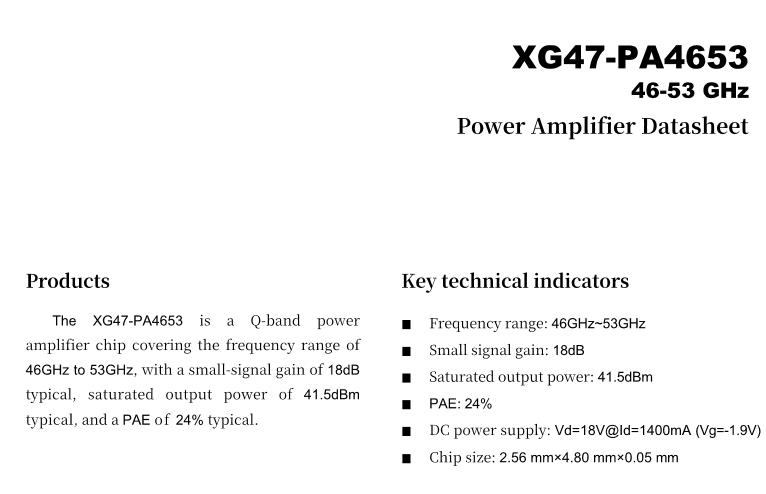

TRV v2.0 - IC9100 GPS locked - DB6NT - 2,4m solid dish - SSPA driver 1W DB6NT,  VLNA - 1,8dB N/F EB3FRN - 22dB gain, WR22 waveguide switch

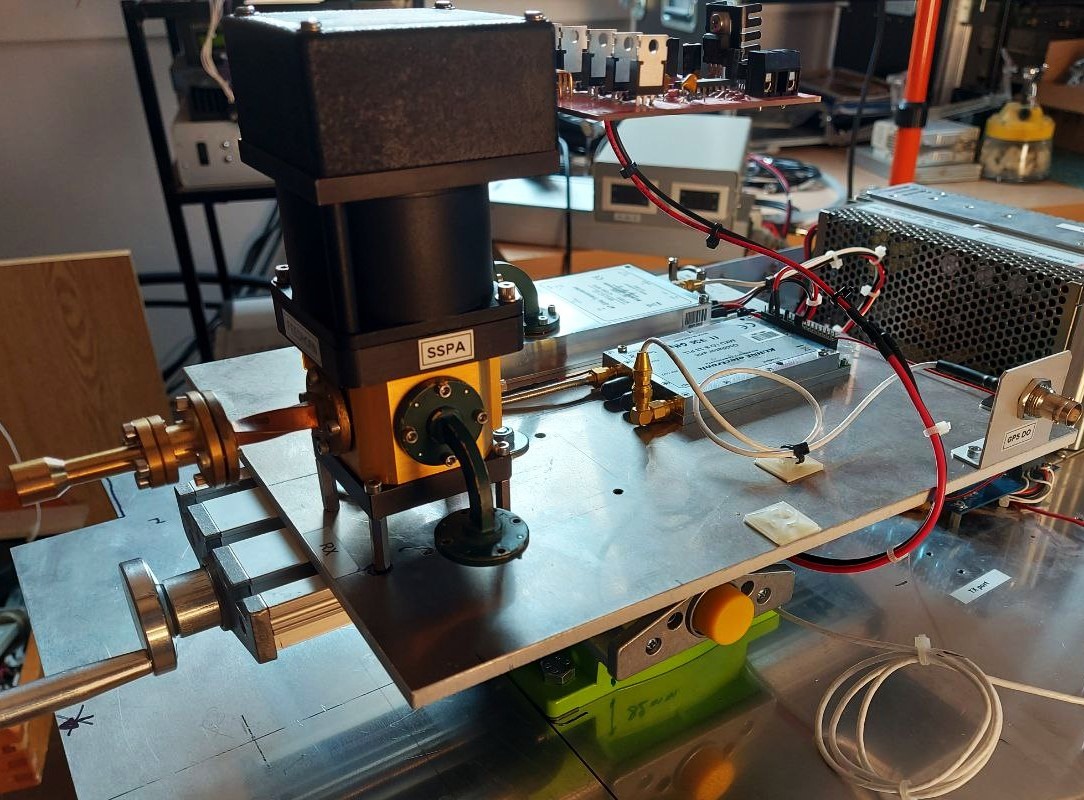

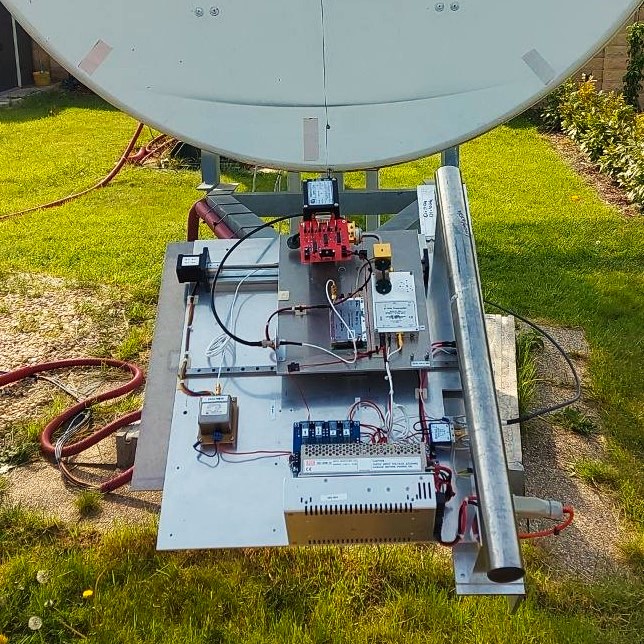

 TRV 47 GHz including LO, WG WR22 switch -WR22 isolator in RX way installed in the feedpoint of 2,4m offset  TRV with switch is installed on 2 axe table for better phase point finding

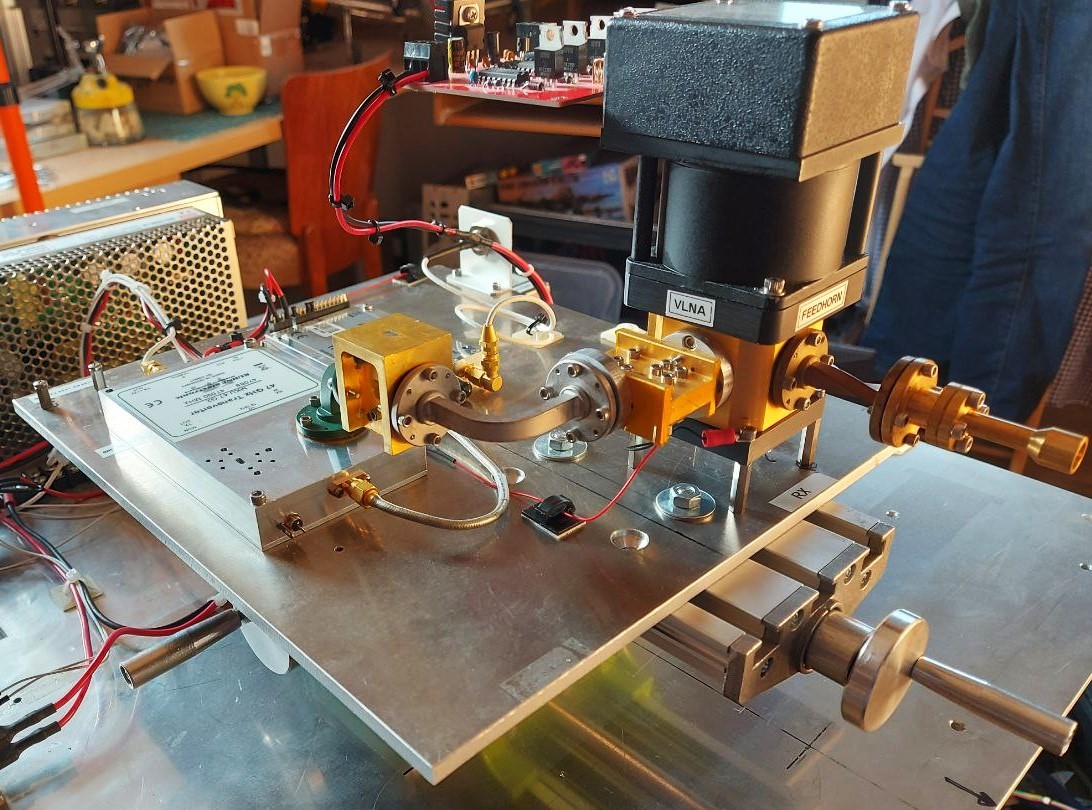

 More details left side

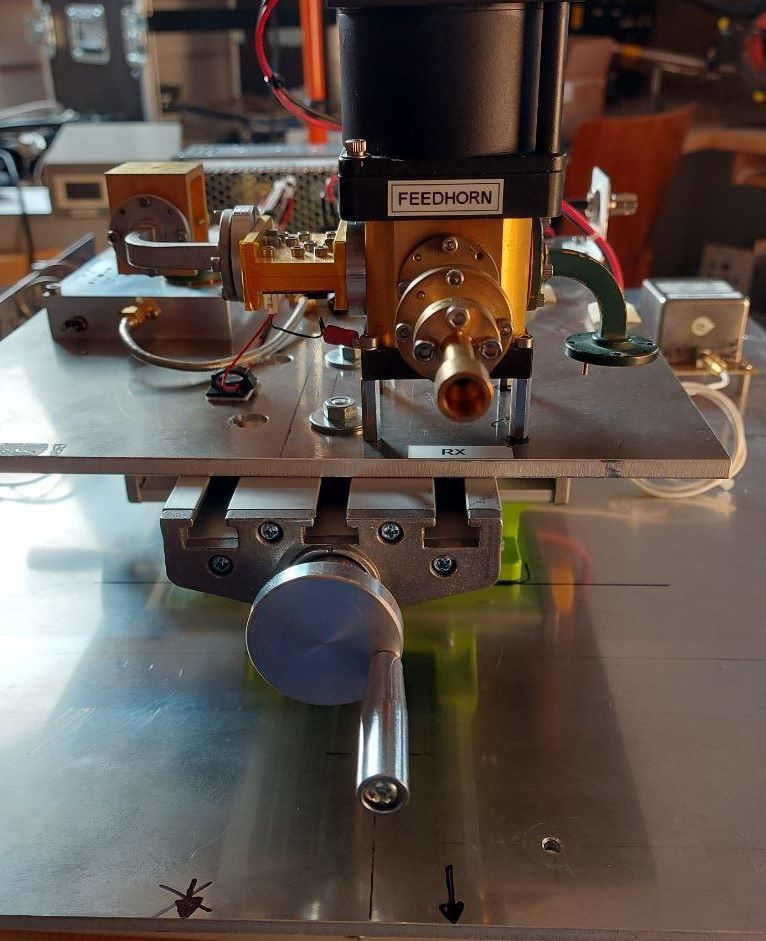

 More details right side
