MEASURING

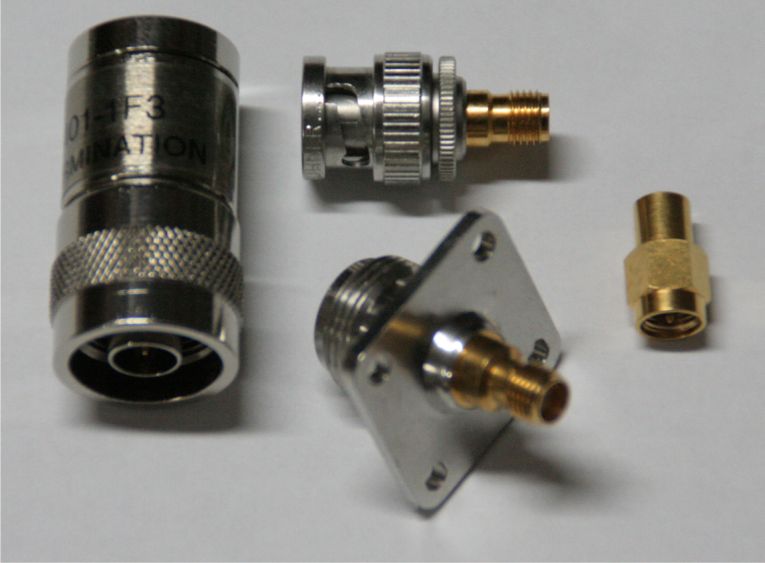

Adapters used for measuring, SUHNER and HP Agilente, 50 ohm dummy load ANRITSU

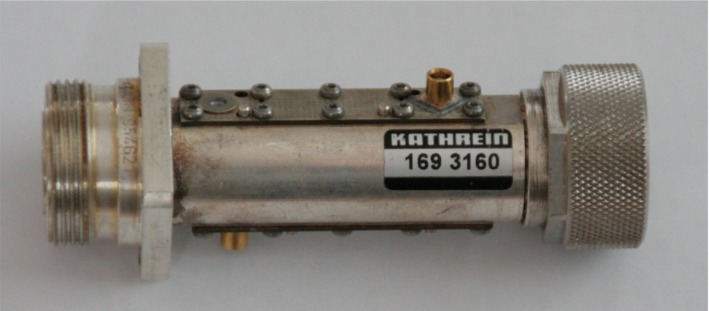

KATHREIN 824 - 2500 MHz - directional coupler

PDF DATA sheet of KATHREIN directional coupler

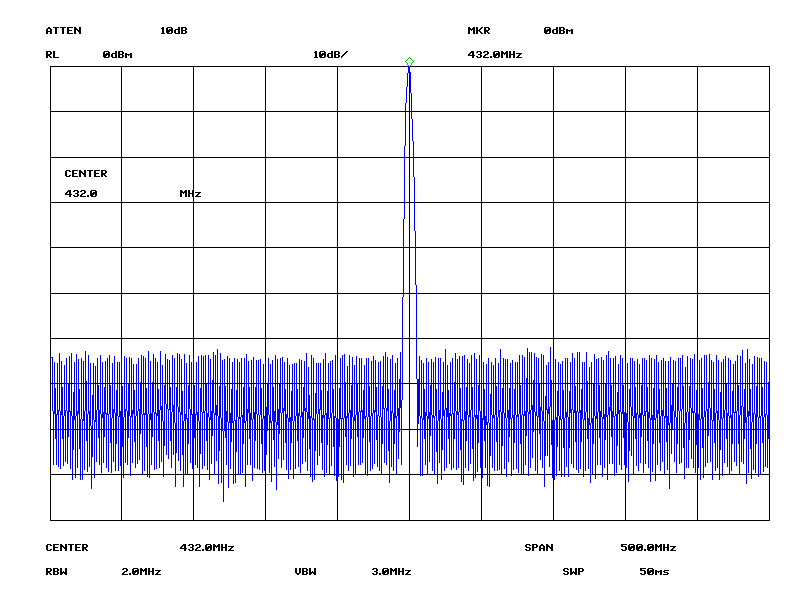

432 MHz

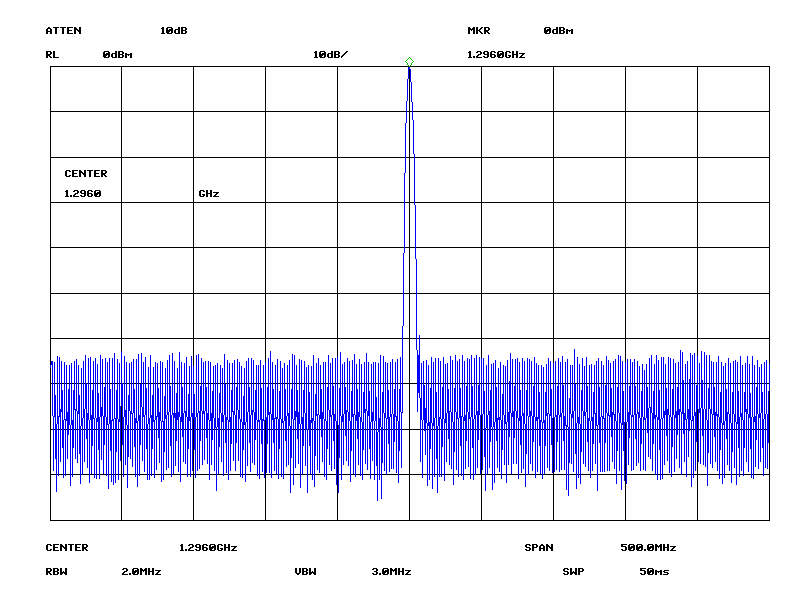

1296 MHz

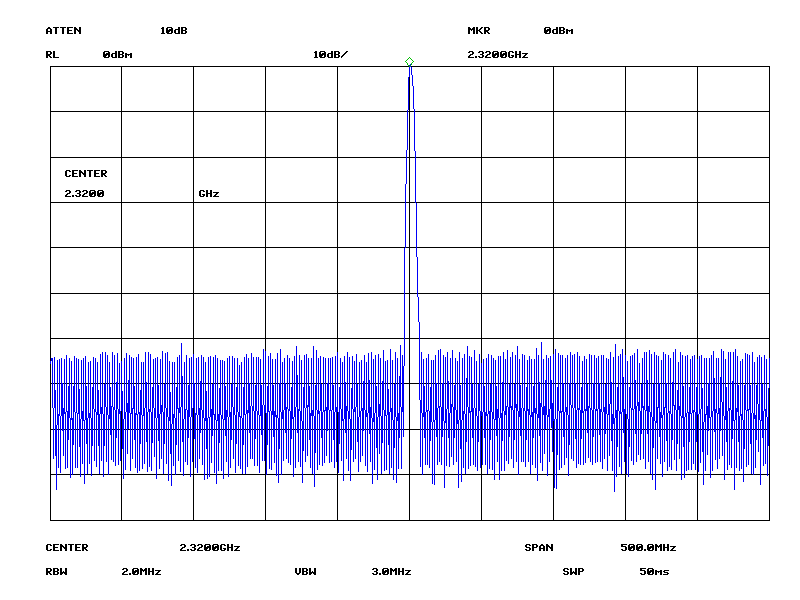

2320 MHz
	CAL			DIR	REF
	*CAL*	*DIR*	*REF*	*Isol.*

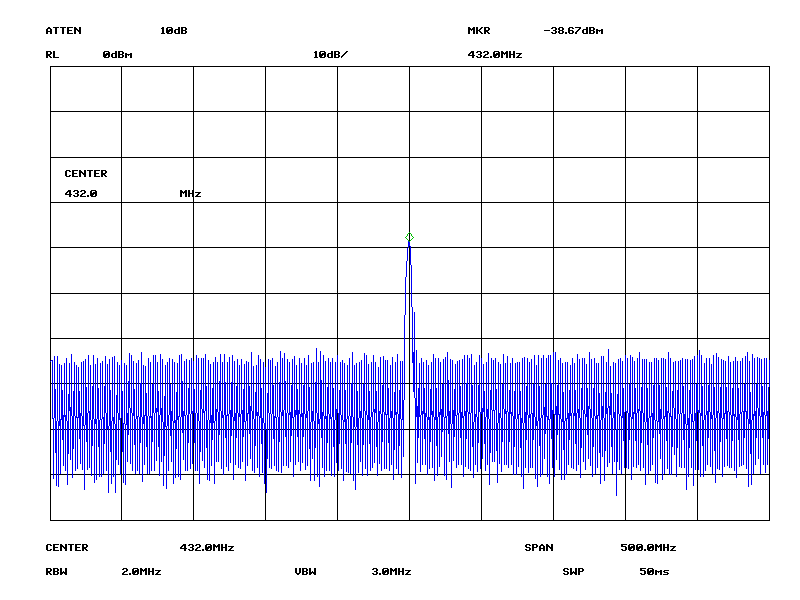

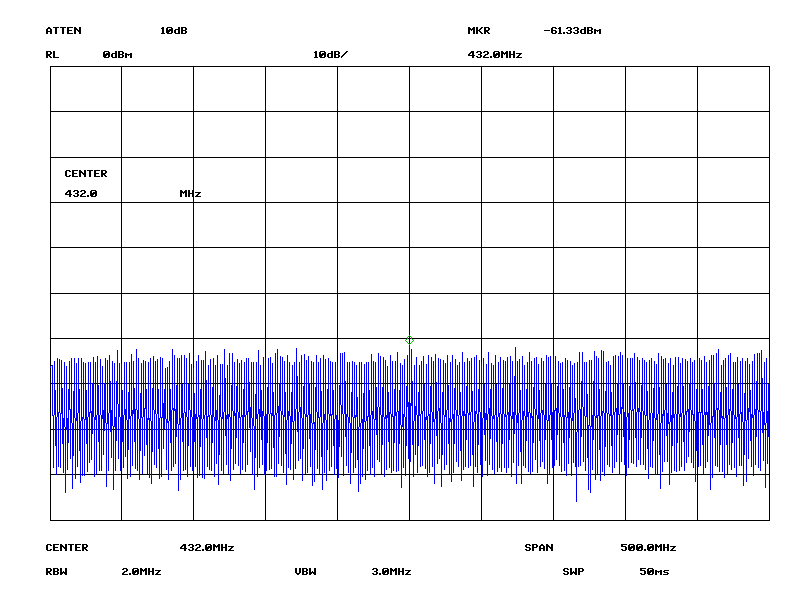

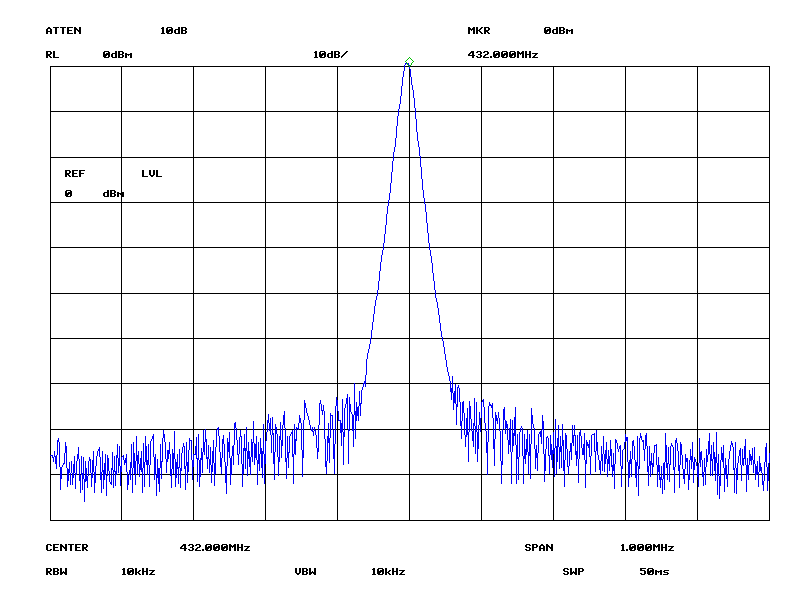

*432 MHz*	0 dB	-38,67 dB	-61,33 dB	22,66 dB

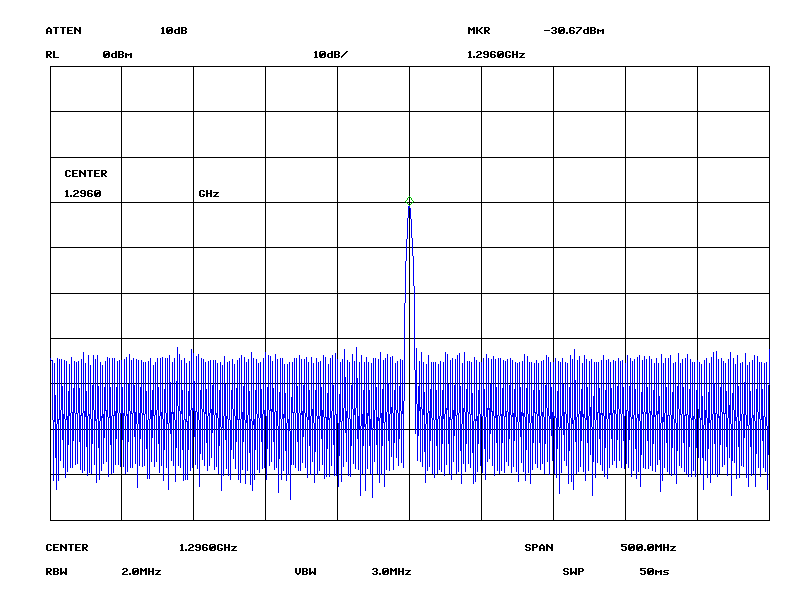

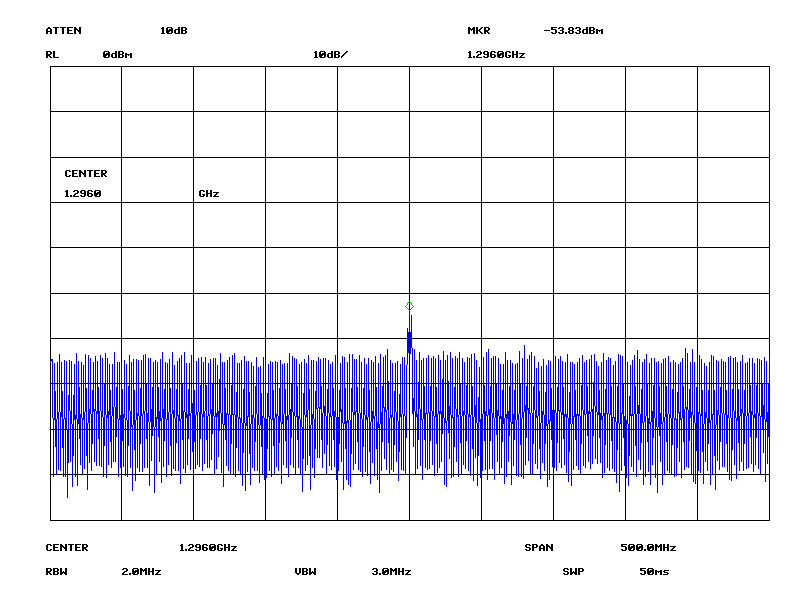

*1296 MHz*	0 dB	-30,67 dB	-53,83 dB	23,16 dB

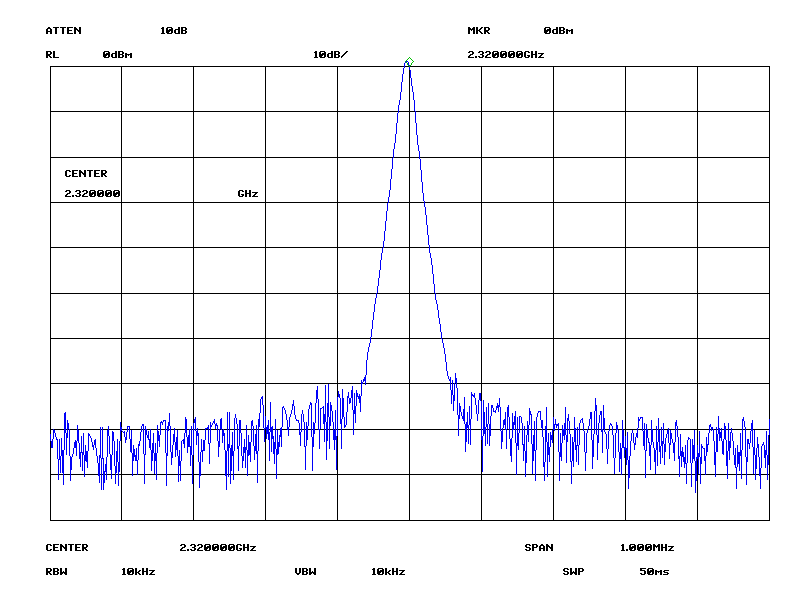

*2320 MHz*	0 dB	-29 dB	-58 dB	29 dB

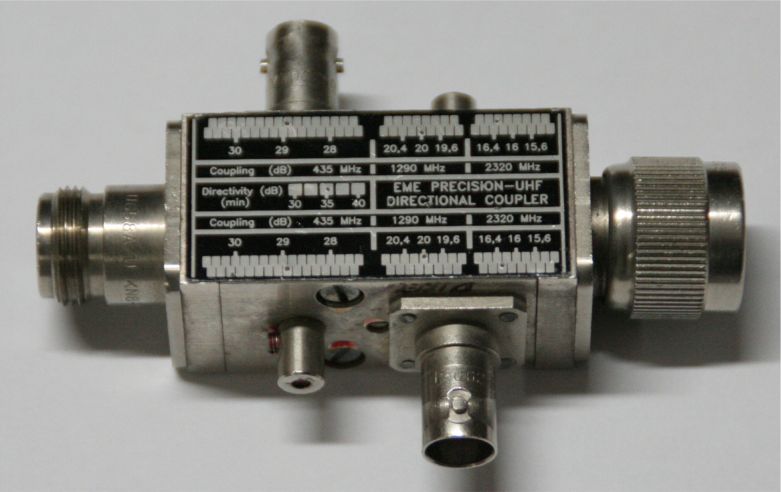

UKW berichte - directional coupler

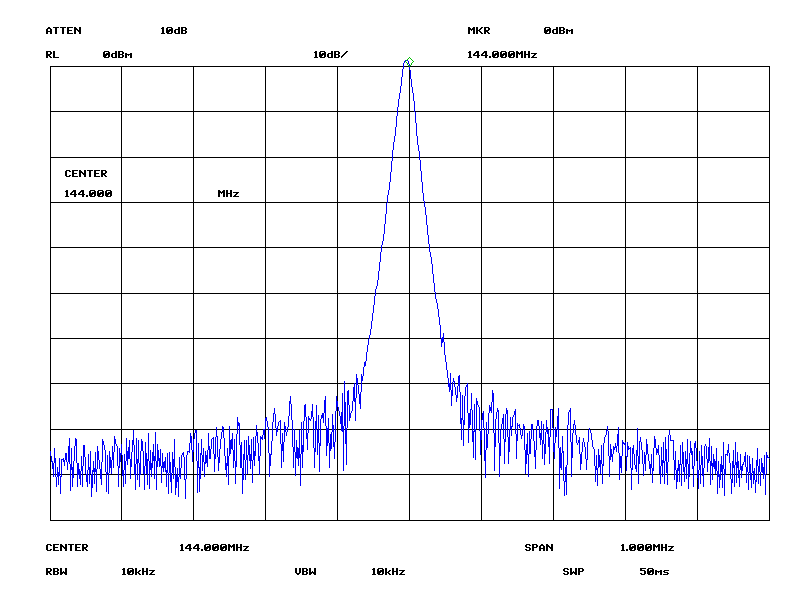

144 MHz
432 MHz

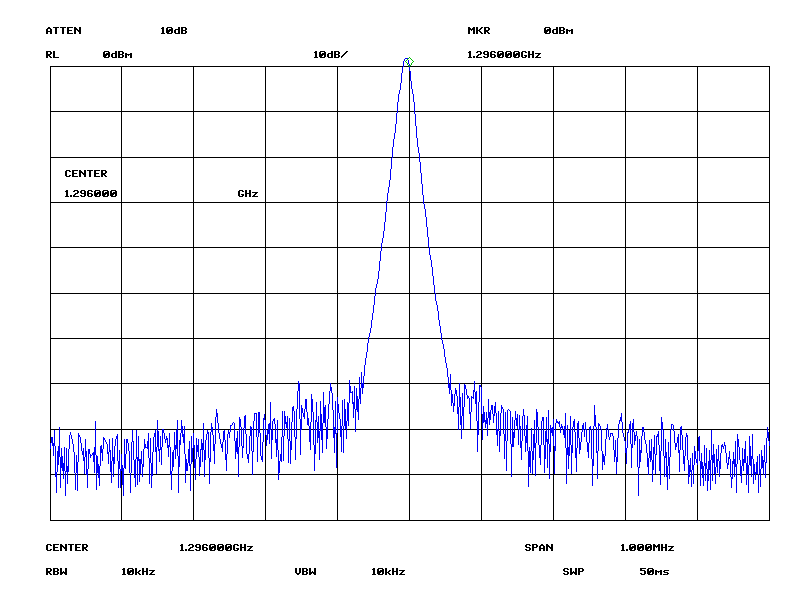

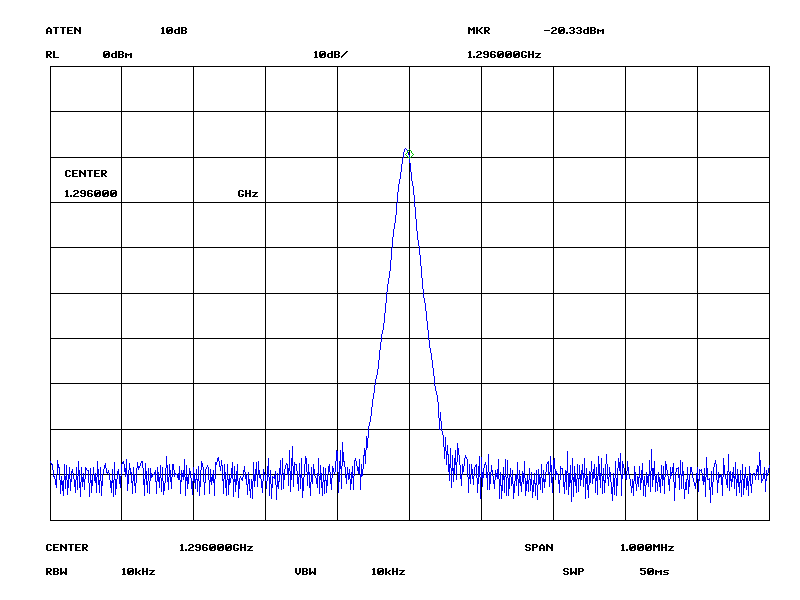

1296 MHz
2320 MHz
	CAL			DIR	REF
	*CAL*	*DIR*	*REF*	*Isol.*

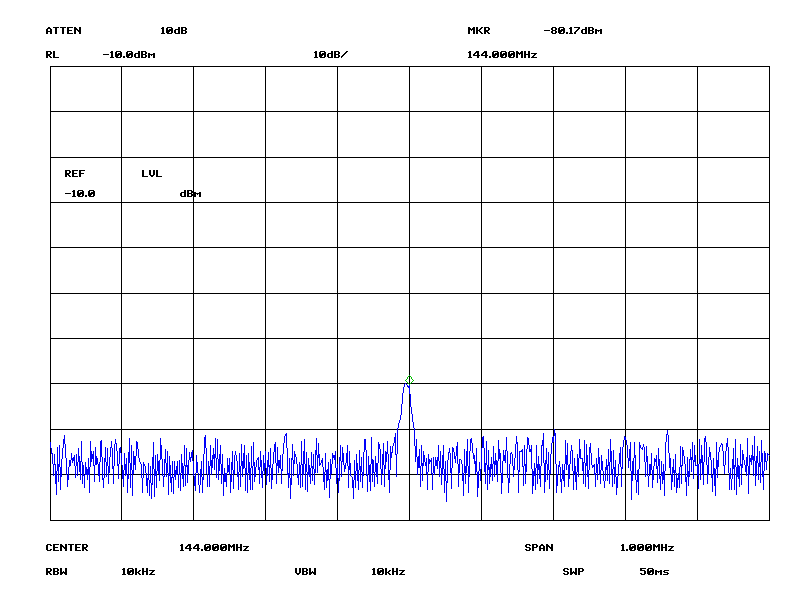

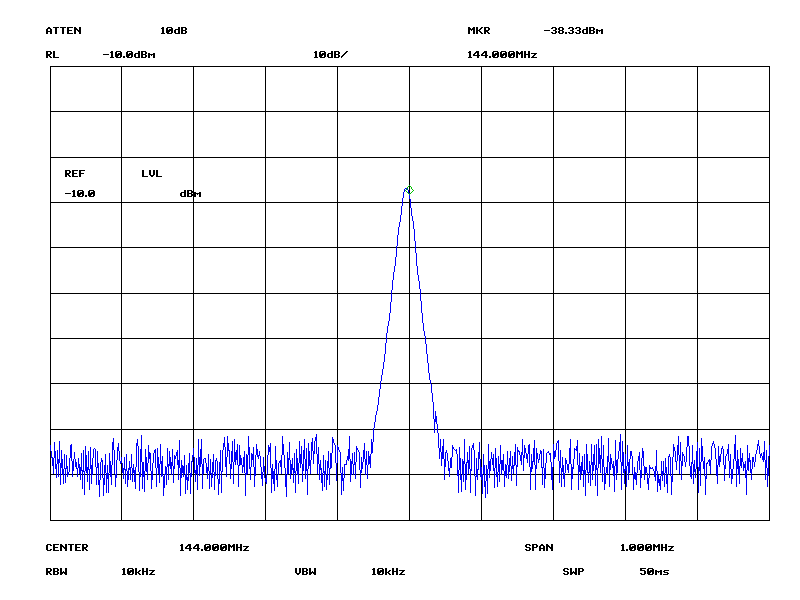

*144 MHz*	0 dB	-38,33 dB	-80,17 dB	41,84 dB

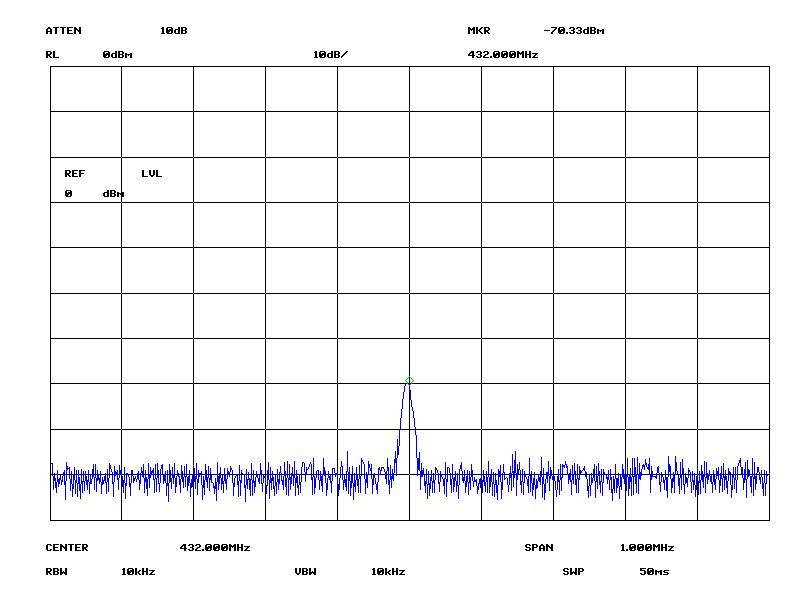

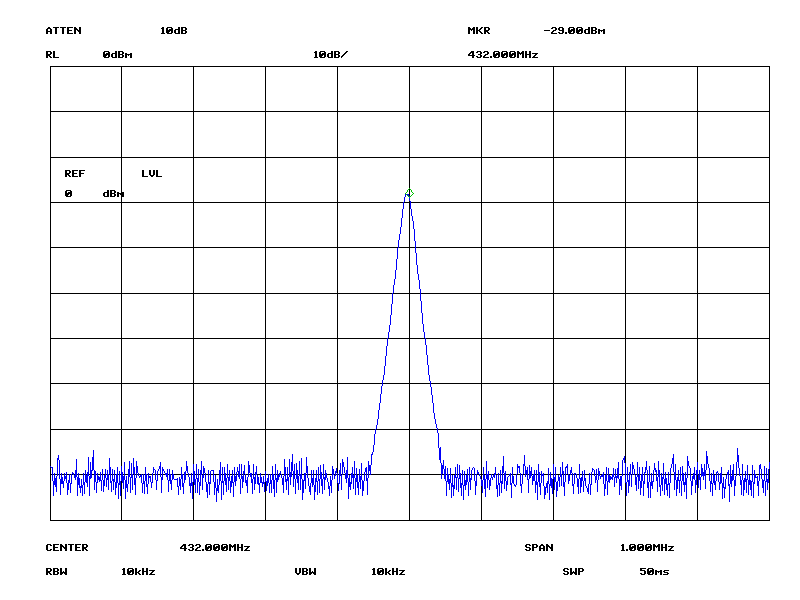

*432 MHz*	0 dB	-29,00 dB	-70,33 dB	41,33 dB

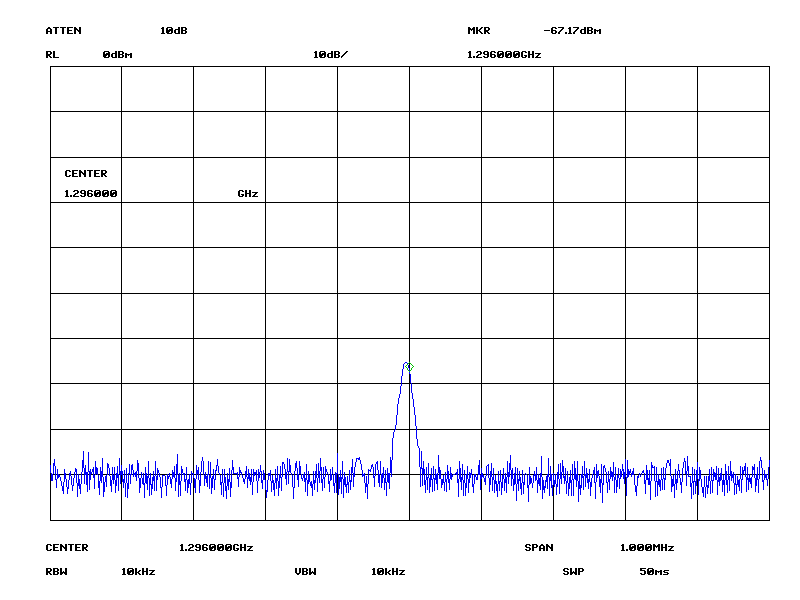

*1296 MHz*	0 dB	-20,33 dB	-67,17 dB	46,84 dB

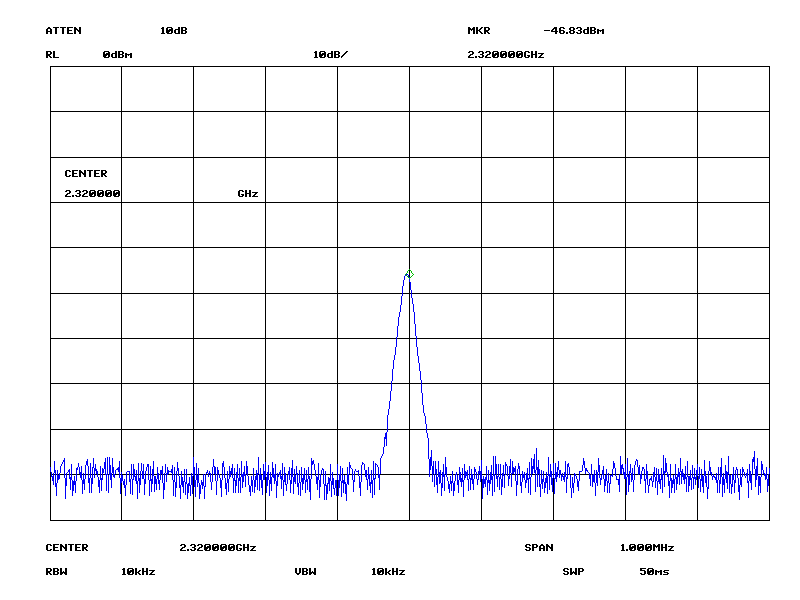

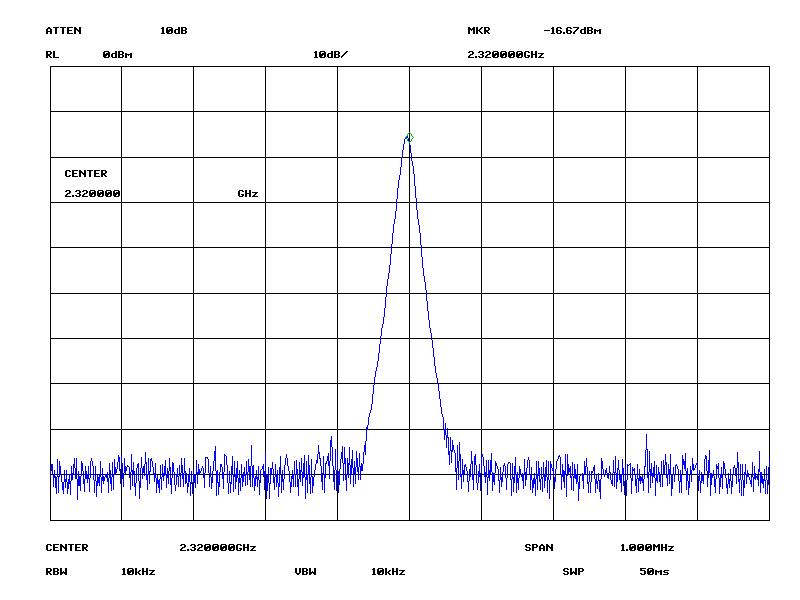

*2320 MHz*	0 dB	-16,67 dB	-46,83 dB	30,16 dB

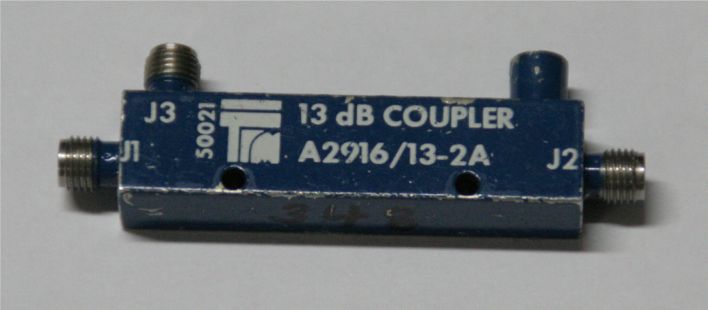

One way directional coupler

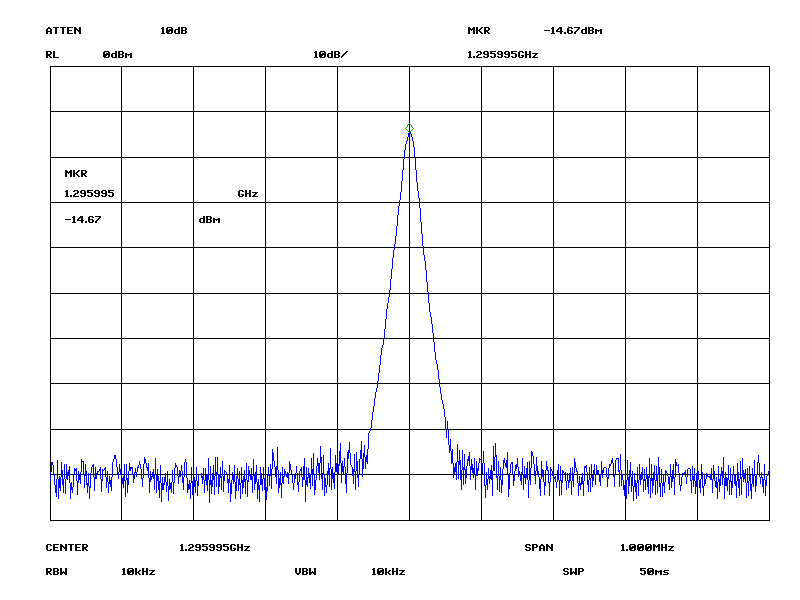

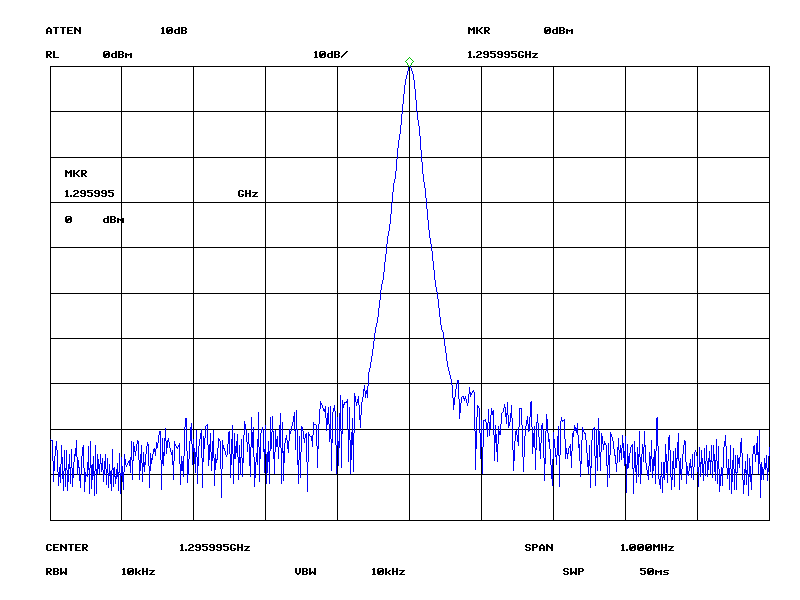

1296 MHz

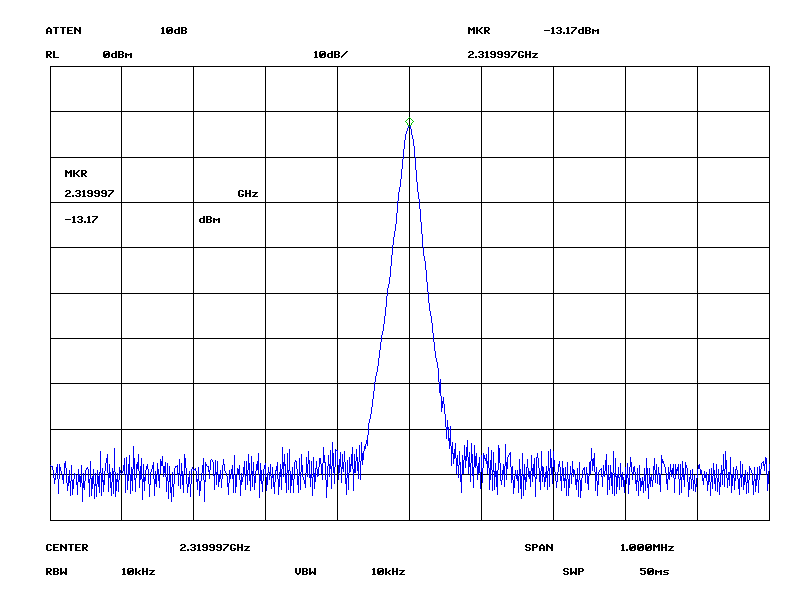

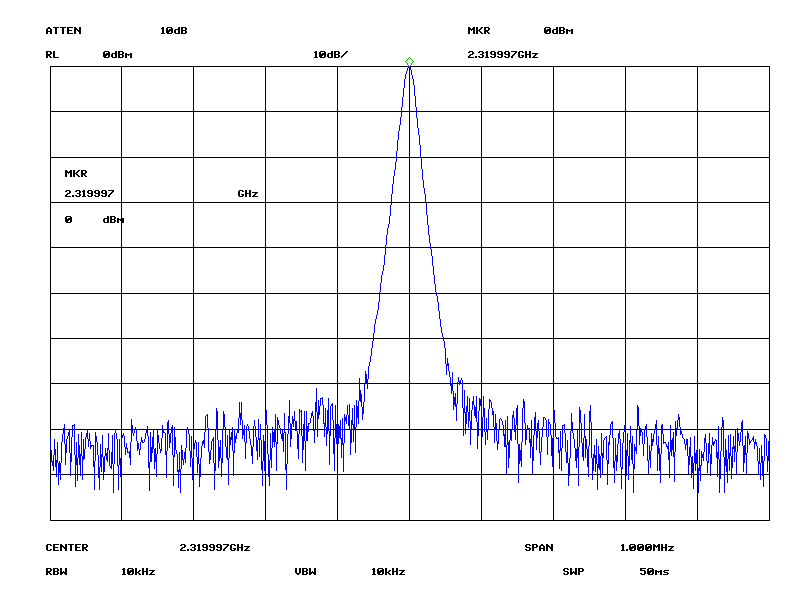

2320 MHz
3400 MHz
	CAL			DIR	REF
	*CAL*	*DIR*	*REF*	*Isol.*

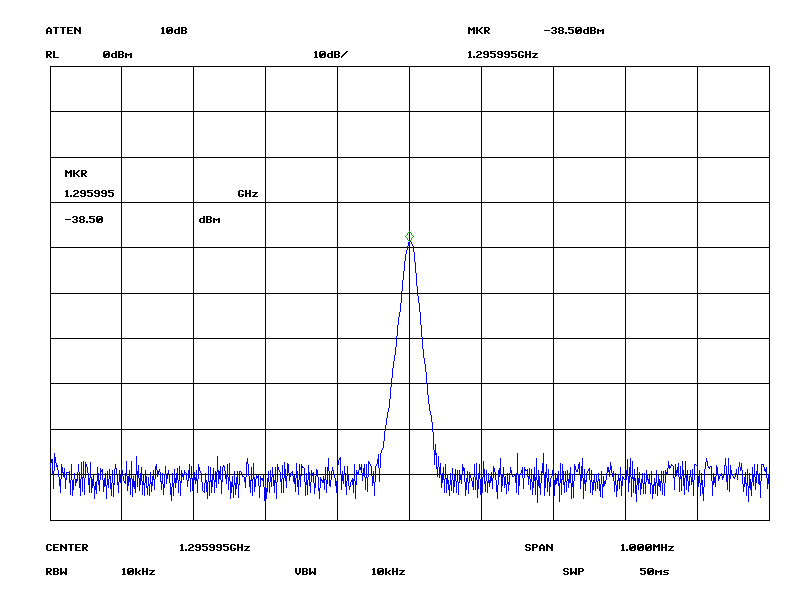

*1296 MHz*	0 dB	-14,67 dB	-30,5 dB	15,83 dB

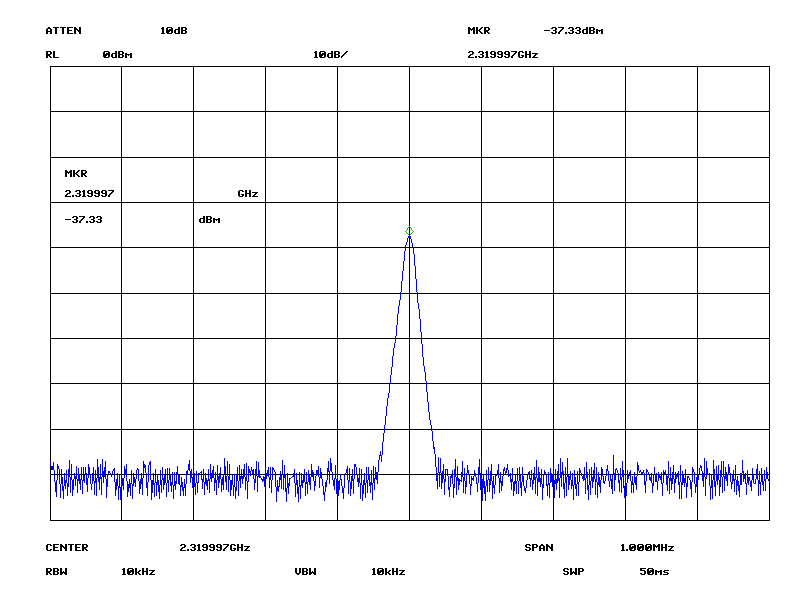

*2320 MHz*	0 dB	-13,17 dB	-37,33 dB	24,16 dB

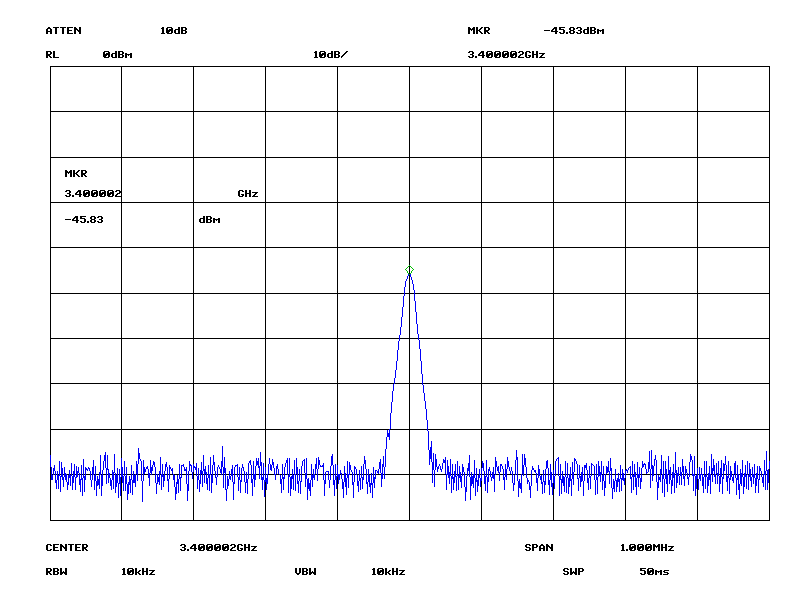

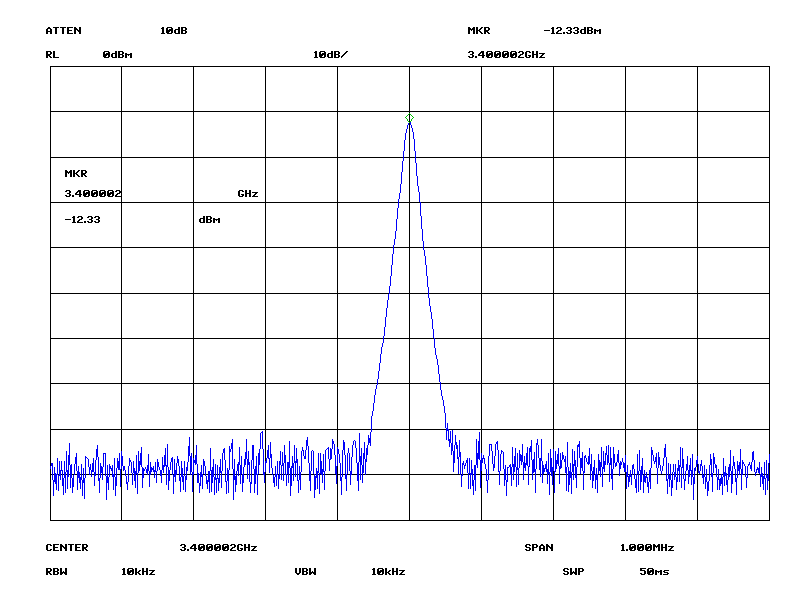

*3400 MHz*	0 dB	-12,33 dB	-45,83 dB	33,5 dB

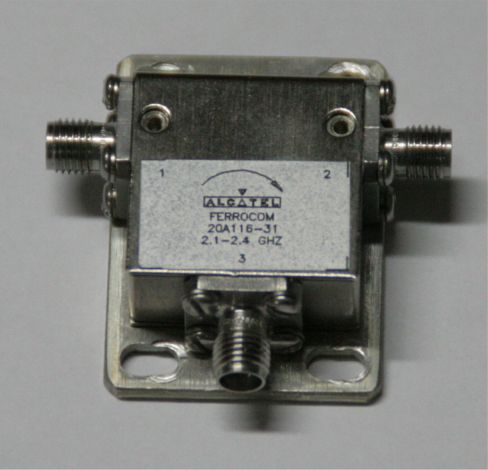

2,3 GHz circulator

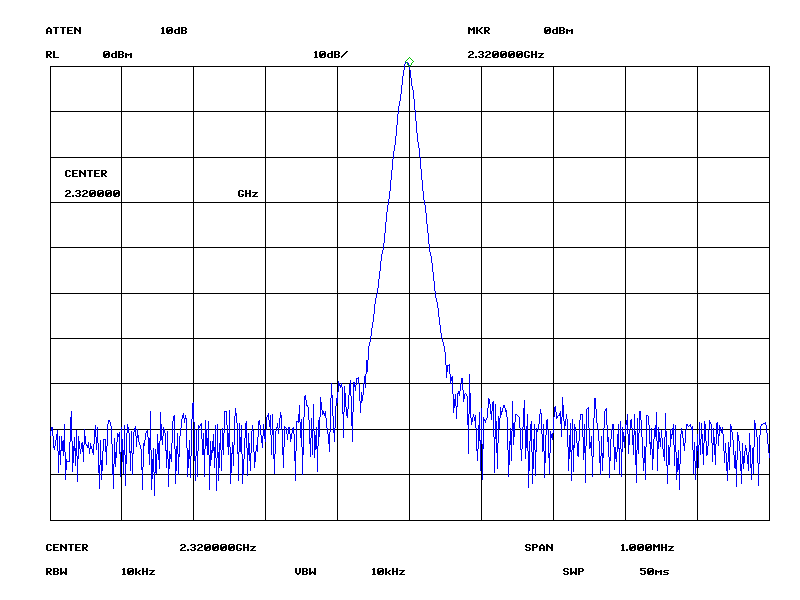

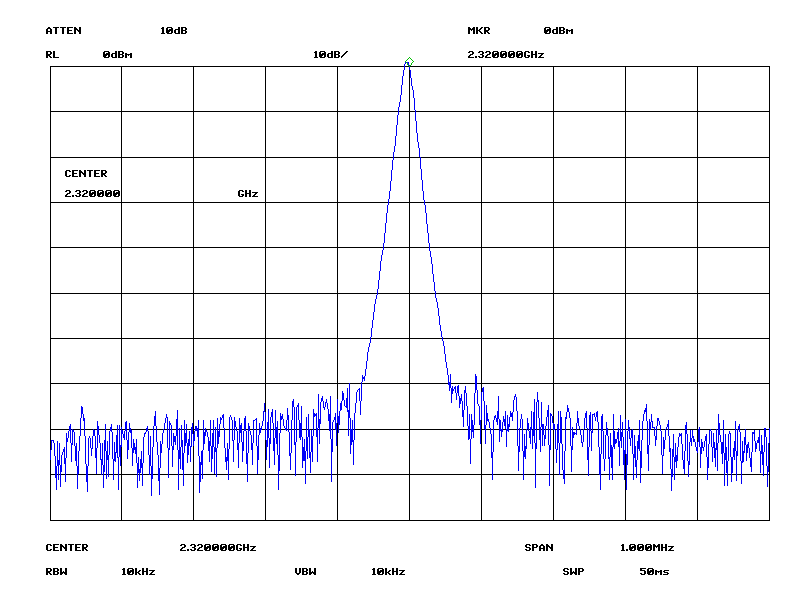

2320 MHz					1st. out nr.2 - not terminated nr.3 2nd. out nr.2 - terminated nr.3 50 ohm

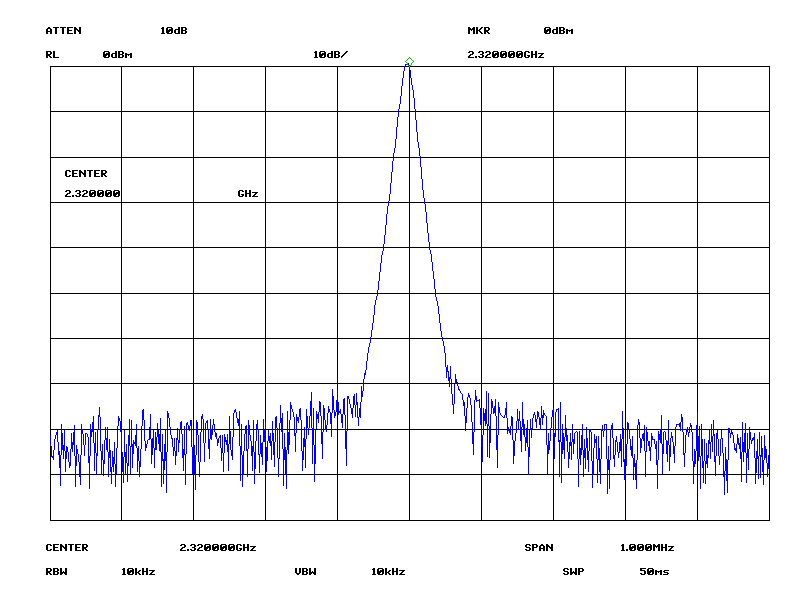

2320 MHz					1st. out nr.3 - not terminated nr.2 2nd. out nr.3 - terminated nr.2 50 ohm

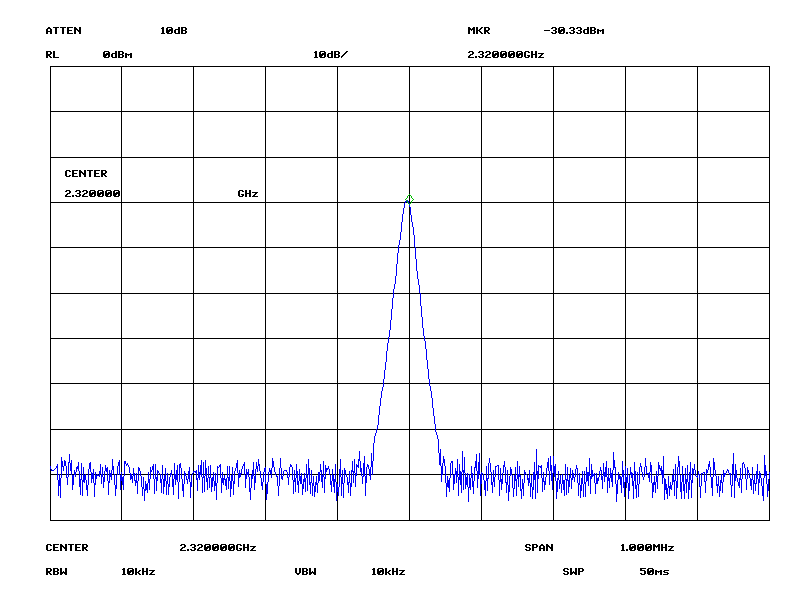

	1st.			2nd.	isolation -30,33 dB

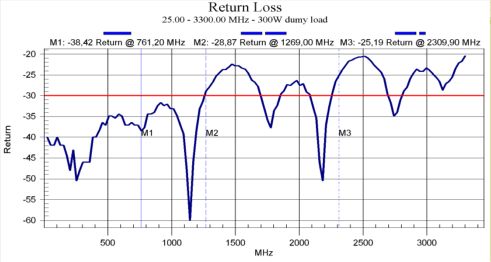

300W dummy load SPINER
measured 25 MHz - 3,3 GHz

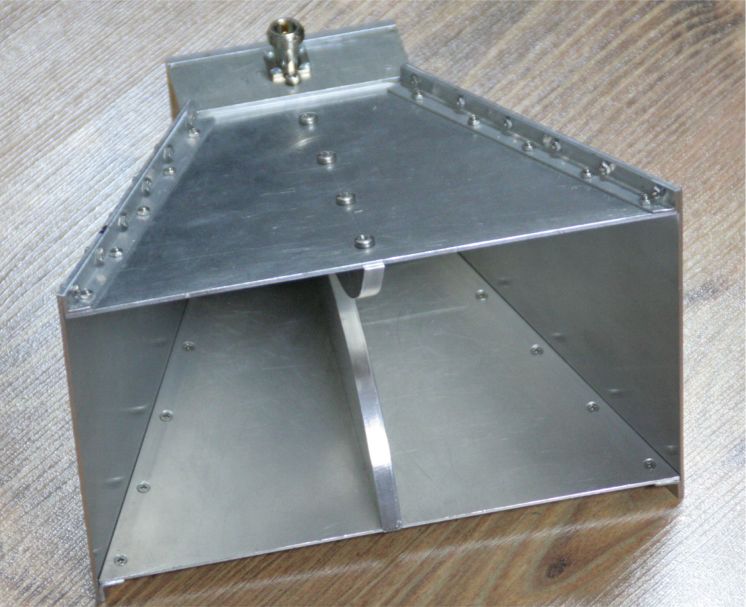

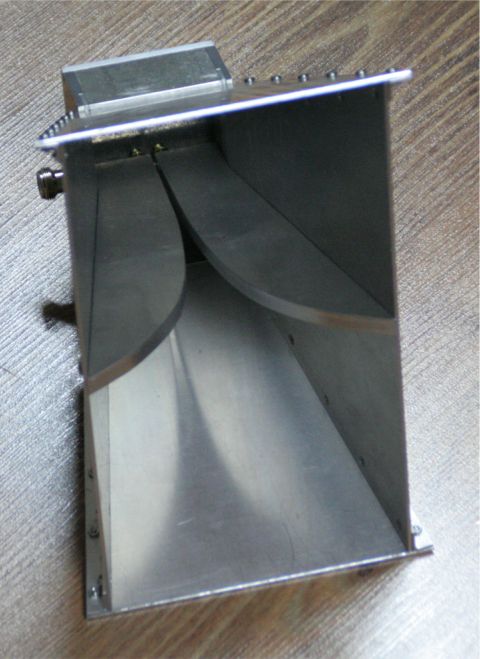

Horn 1 - 12 GHz

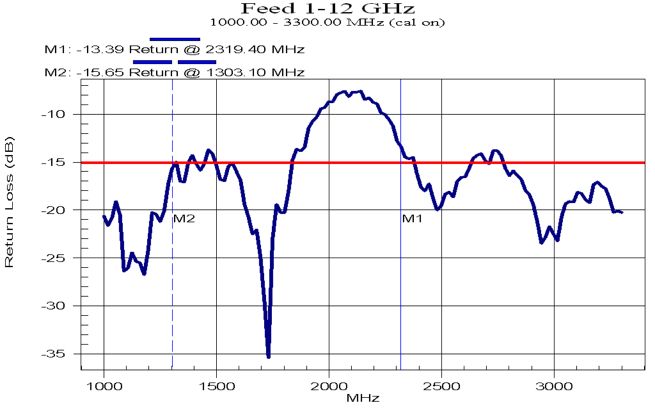

measured 1 - 3,3 GHz				measured 3,3 - 11 GHz
