47 GHz VLNA

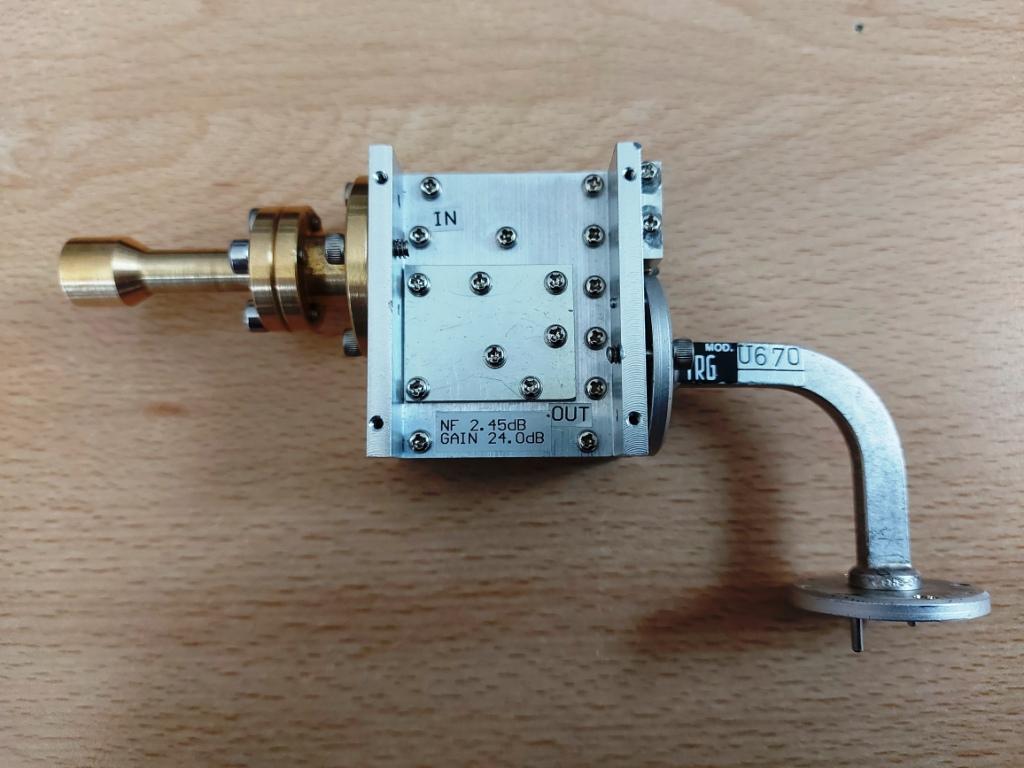

 VLNA - 2,45dB N/F - 24dB gain - JA8CMY design



PCB of power supply 1V Vd and -1,5V Vg - 5V DC input - WR transition and W2IMU feed

Back side of VLNA

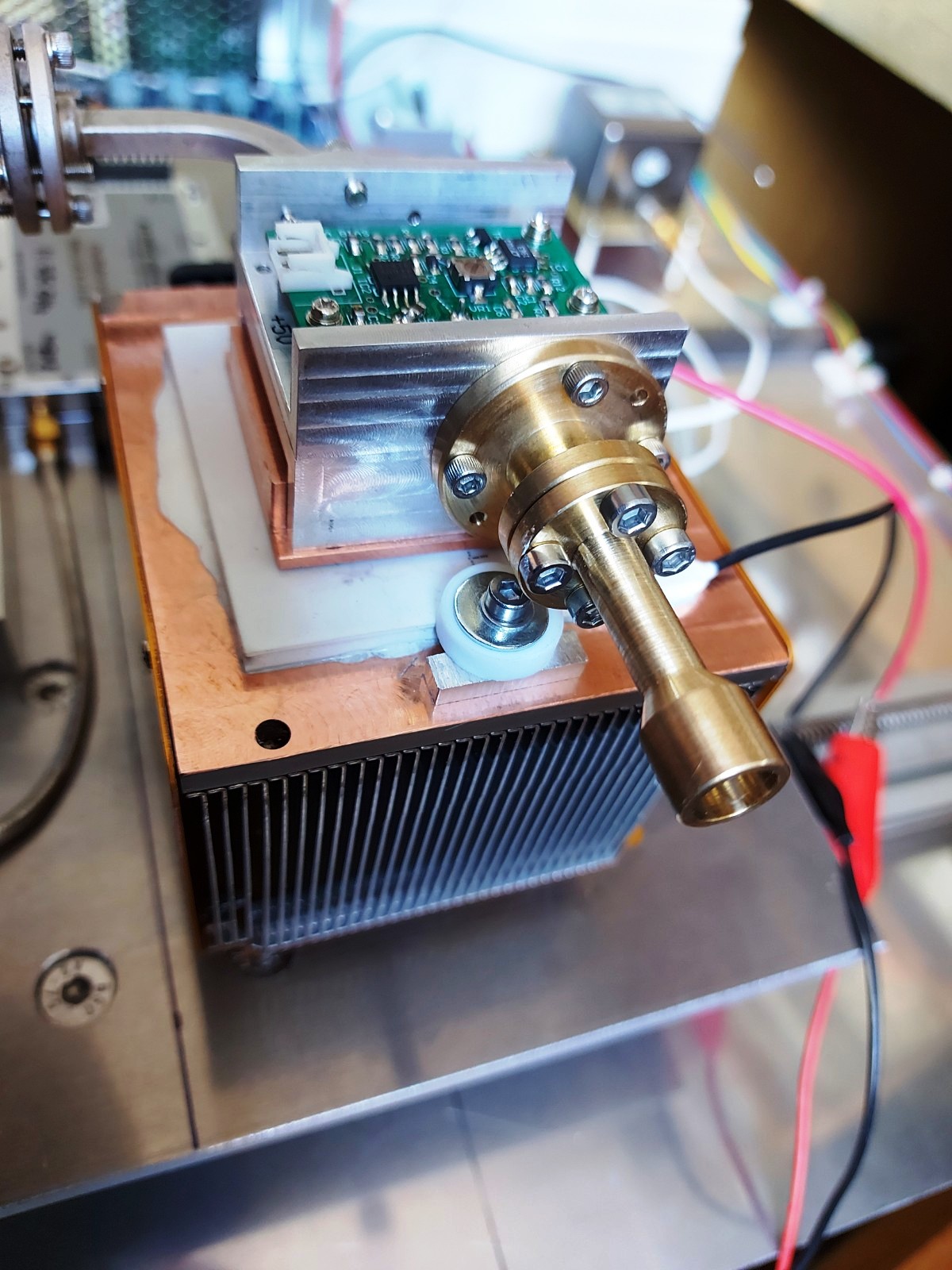

Feed W2IMU and VLNA with peltier cell

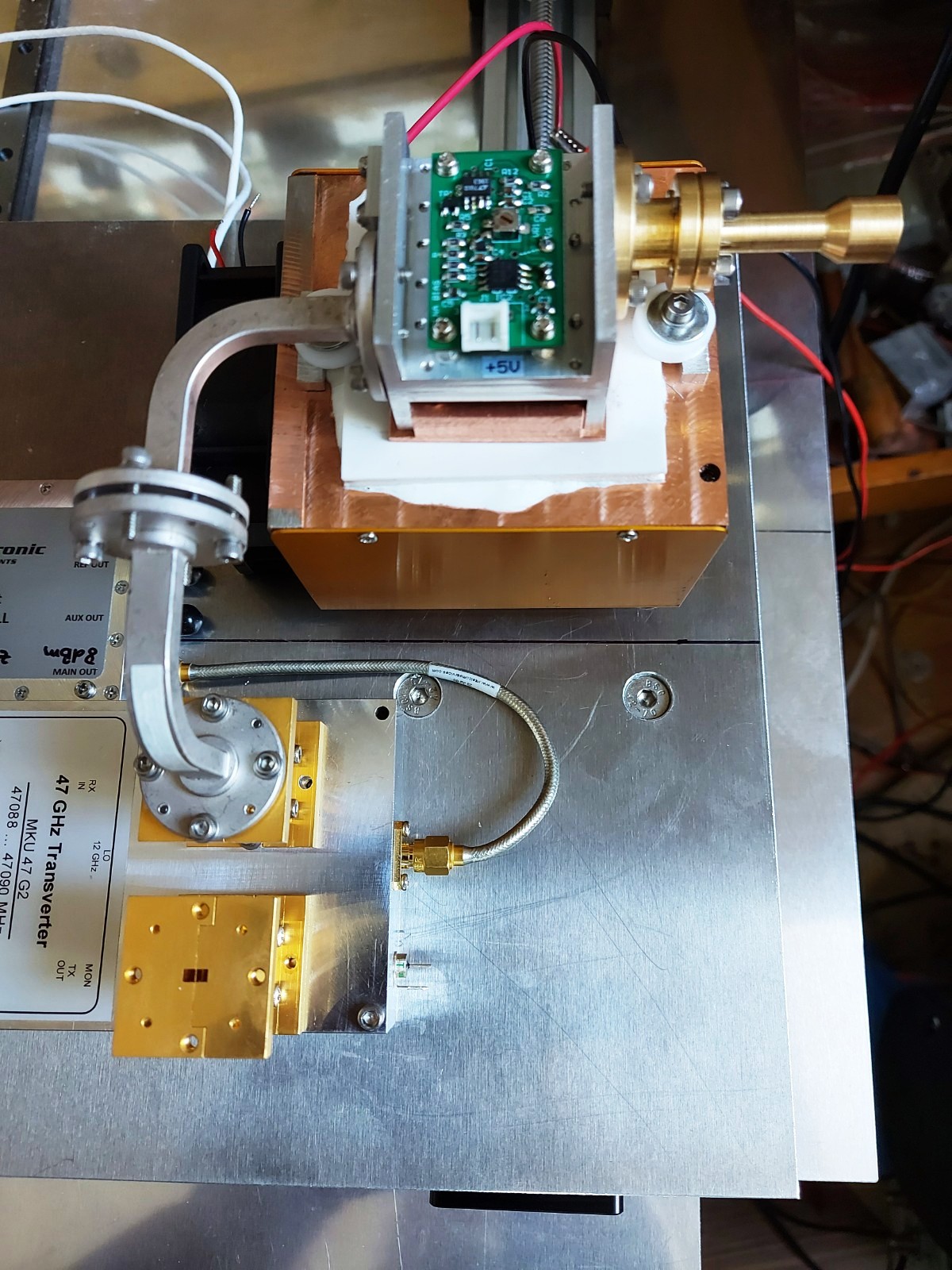

RX way configuration

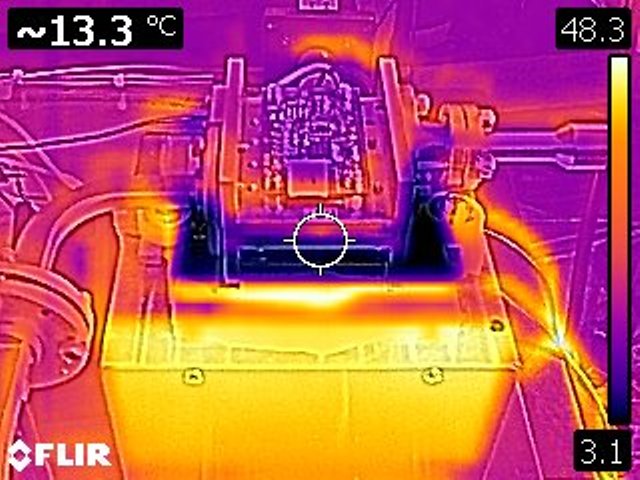

VLNA and peltier cell switched ON

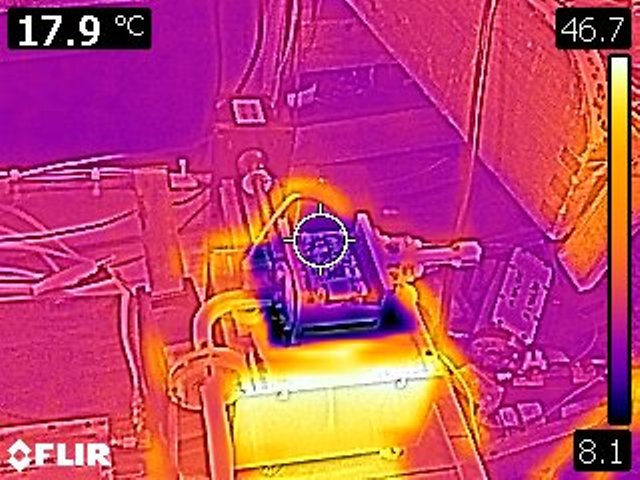

+10 min

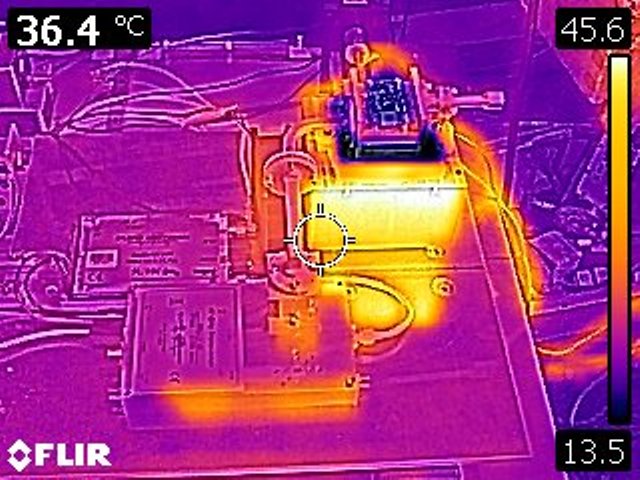

+20 min

Next step is test with cooling on noise figure meter and than with dish for cold sky
