1296 MHz TRV

TRV 1296 MHz 15W out

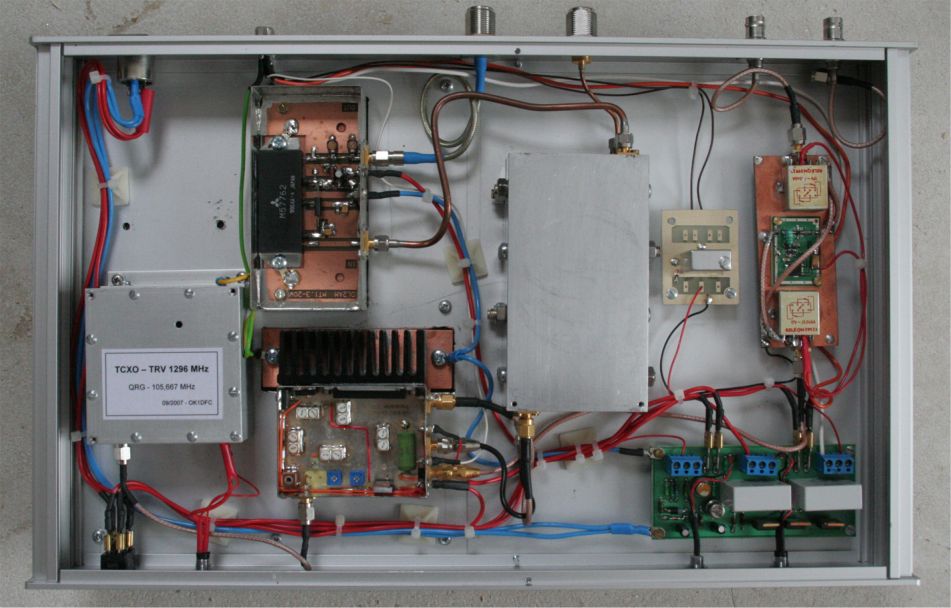

TRV based of rebuild DB6NT TRV. On left side is TCXO 70°C.  Above TRV is 15W hybrid Mitsubishi 15W out. Right from TRV and PA two inter-digital filters RX - TX way. All units connected with coax and SMA connectors. Right below sequencer Right above small MMIC MAR6 amplifier for 28MHz. TRV is possible connect with 28MHz TRV RF out from -20dB like I have with my IC7700.

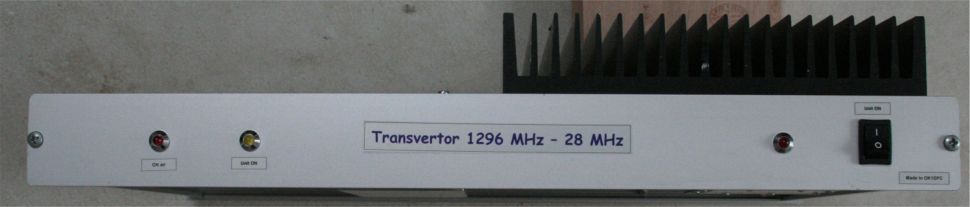

TRV Front

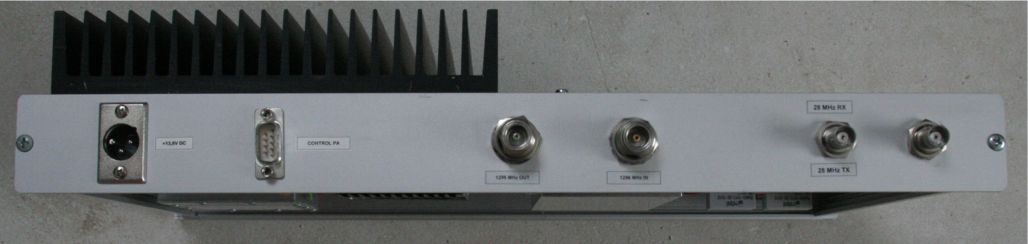

TRV rear - Right BNC is output to SDR14
