Tropo antenna system using now

70 MHz G0KSC LFA 7 el. Yagi

Sliding mast 18m high, including 18el. M2 144 MHz  -  38el. M2 432 MHz  -  7el.G0KSC 70 MHz

all Yagis with full elevation

Switching box on the mast, including relays and LNA for each band







Tropo antenna system used 2001-2004

[Click to enlarge image] [Click to enlarge image] [Click to enlarge image] [Click to enlarge image]

38 el.M2 for 432 MHz

and

18 el.M2 for 144 MHz

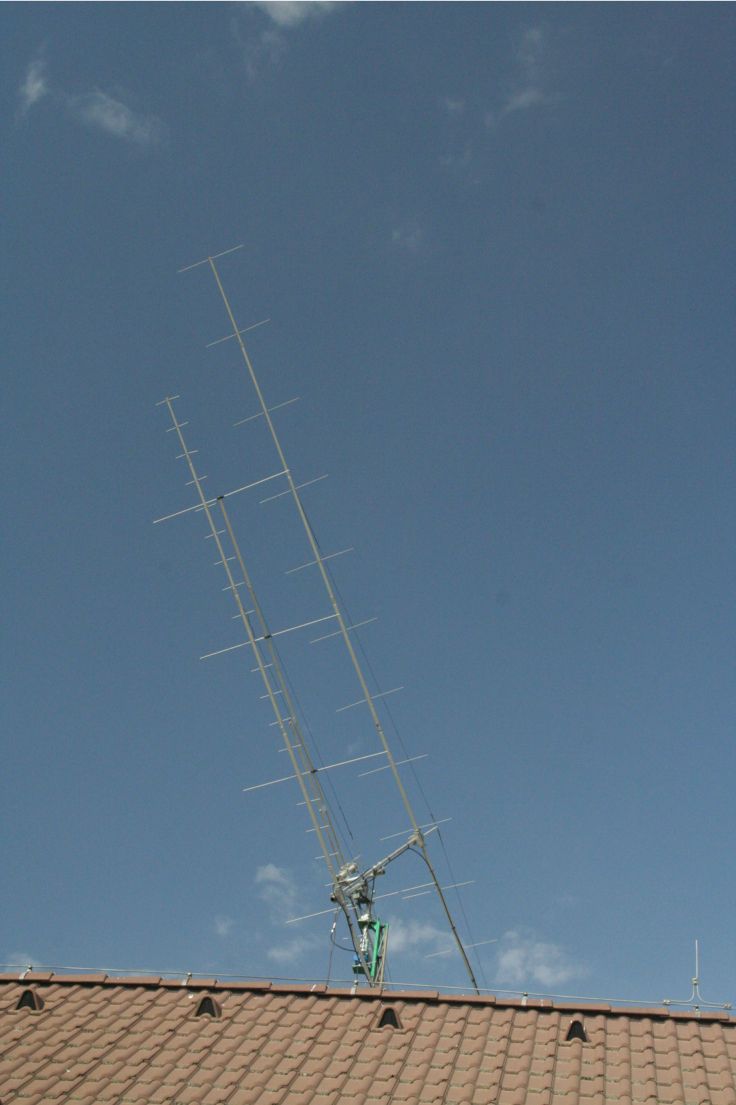

View from south side

Direction East, system

is 1m over the roof.

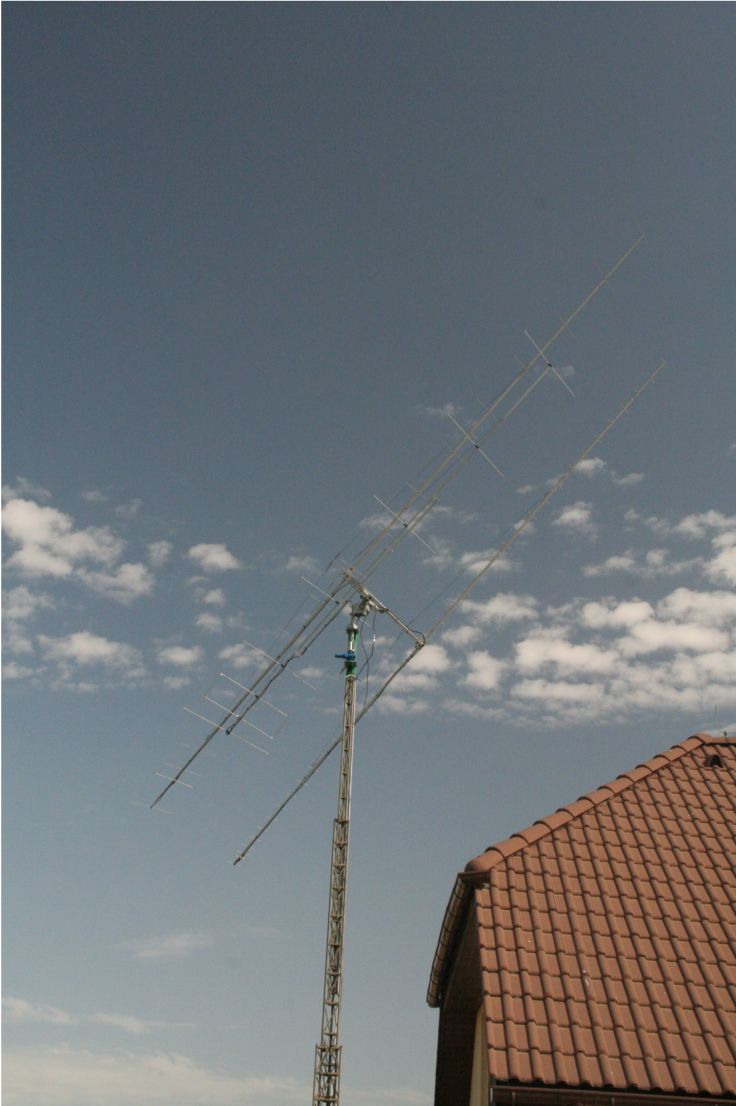

View from South-East
