Feed 1296 MHz
![[Click to enlarge image]](tn_f1.jpg) |
![[Click to enlarge image]](tn_f2.jpg) |
![[Click to enlarge image]](tn_f3.jpg) |
![[Click to enlarge image]](tn_f4.jpg) |
![[Click to enlarge image]](tn_f5.jpg) |
| Feedhorn with septum polariser for 1296MHz, detail of preamplifier with cavity and 0,32dB N/F, 3rd place of NOISE contest in Prague EME Conference 2002 | ||||
Feed 2320 MHz

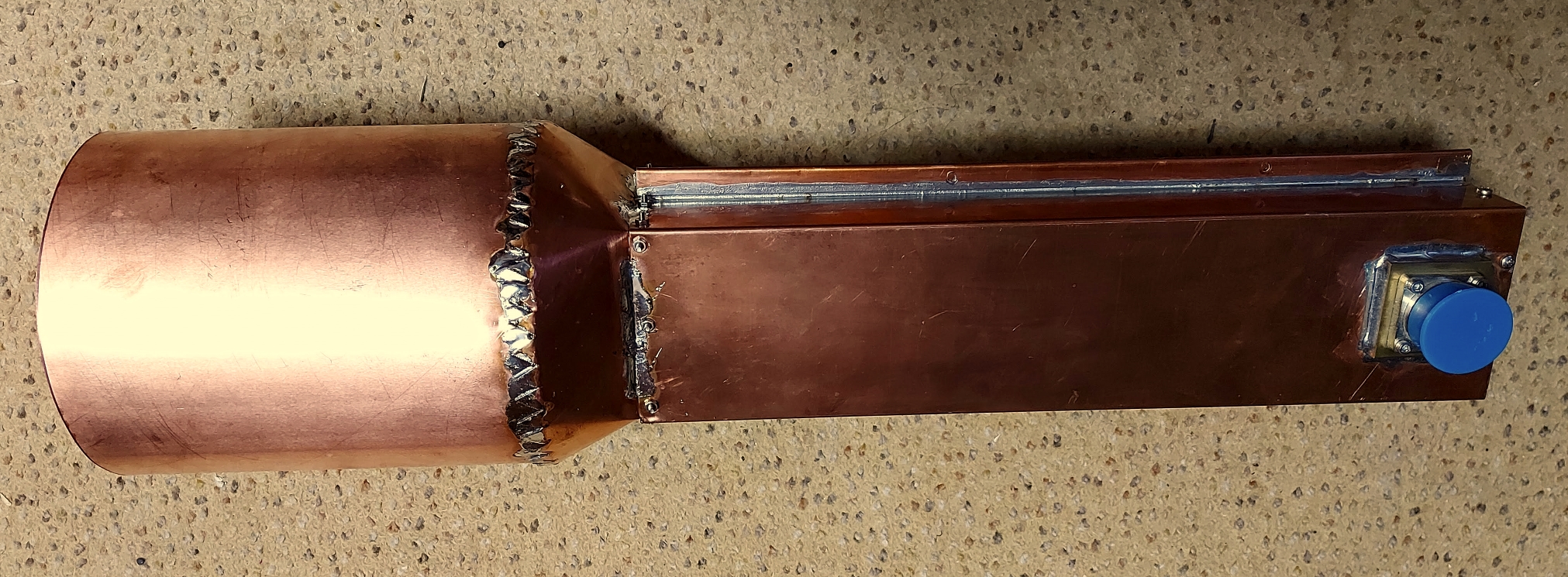

Feedhorn with septum polariser for 2320 MHz, copper sheet 0,6mm thicknes, TX port 7/16" connector

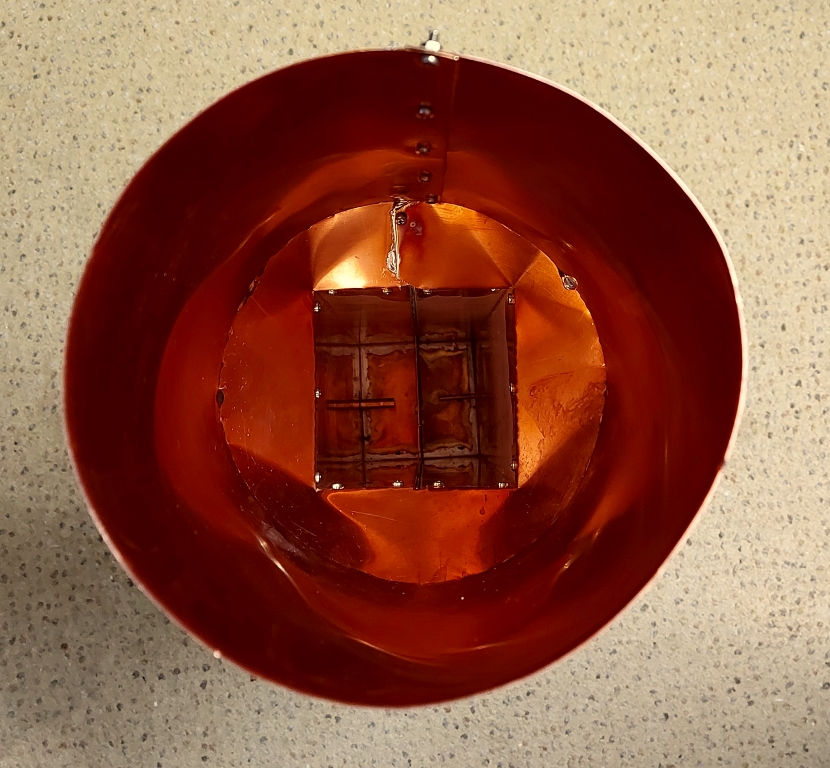

Inside of feed, left TX port 6mm diameter of monopol
