24 GHz - setup
from 03/2019
TRV v3.0 IC9100 GPS locked - DB6NT
- TRV 2,6 W RF + JA8CMY design
SSPA 4xTGA4915CP - 22 W
- VLNA DU3BU 1,1dB N/F
from 09/2020

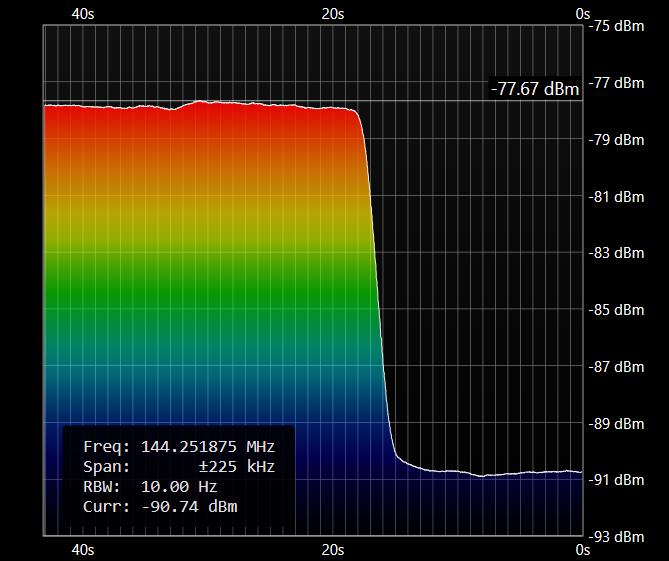

RX performance of home QTH system with
2,6m offset dish - Conical horn
SN/CS = 12,8dB - 67SFU MN/CS = 2,2dB

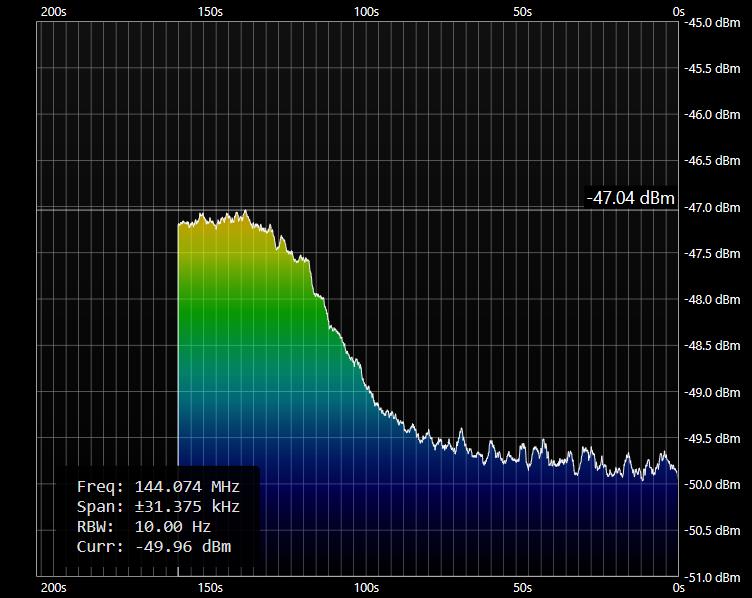

GN/CS = 4,9dB
(clear sky, 1°C and 34°elevation)
TRV v2.0 IC9100 GPS locked - DB6NT
- TRV 2,6 W RF + F5BQP and F6BVA design SSPA 2xTGA4915CP - 15W
- up to 12/2018
TRV v1.0
IC756PROIII + 144 MHz IF TRV + TRV 24048 MHz 1,6dB N/F - 2,6W
up to 12/2017
New
offset dish 2,6m
24 GHz RF detector
Feeds for 24 GHz in
2,6m offset F/D 0,6 dish
Feed F/D 0,8 pattern simulation made by Mirek OK2AQ
Feed F/D 0,6 pattern simulation made by Mirek OK2AQ
Offset dish 2,4m
PRODELIN for 10 & 24 GHz - sold
PDF
presentation about TRV 3rd generation
PDF
presentation of tracking gears
New portable tracking
system for 10 and 24 GHz with high precision gears
New 24 GHz VLNA 1,1dB
N/F
PDF
Presentation - Building 24
GHz portable setup
PE0EHG
RX performance of EME 24 GHz stations

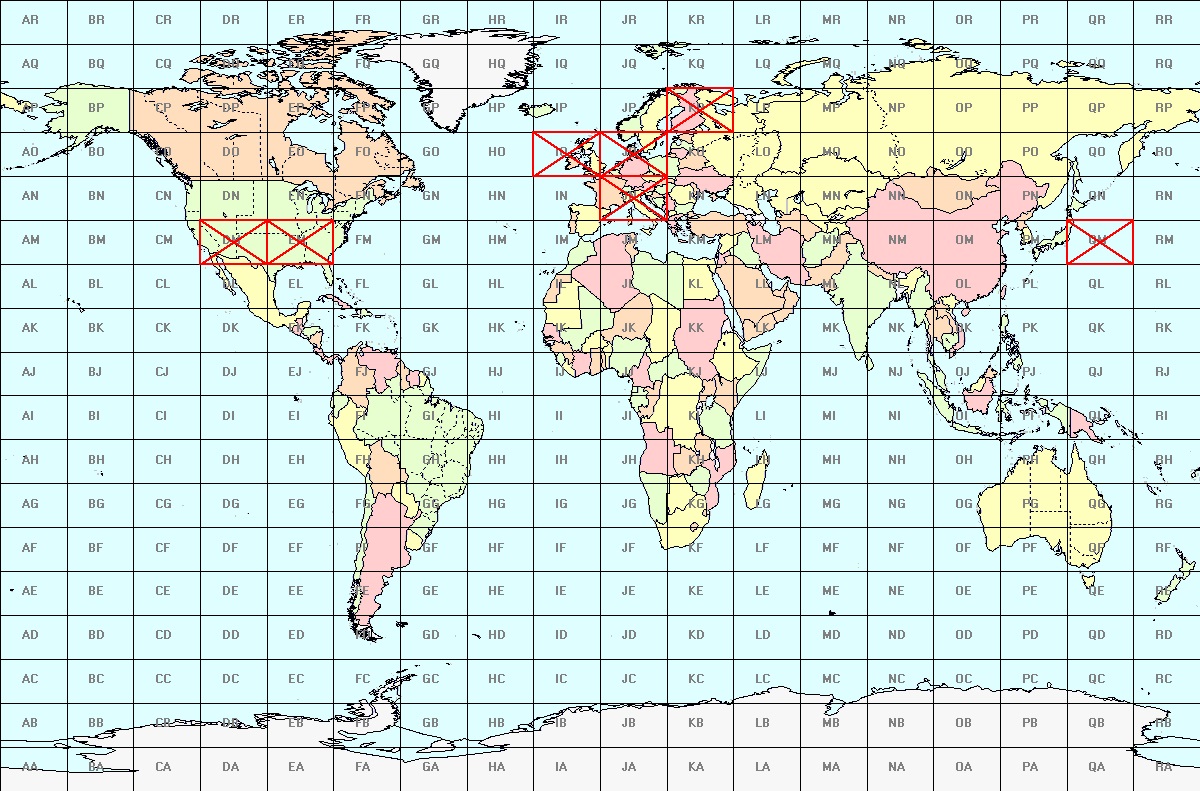

List of
active stations 24 GHz
|

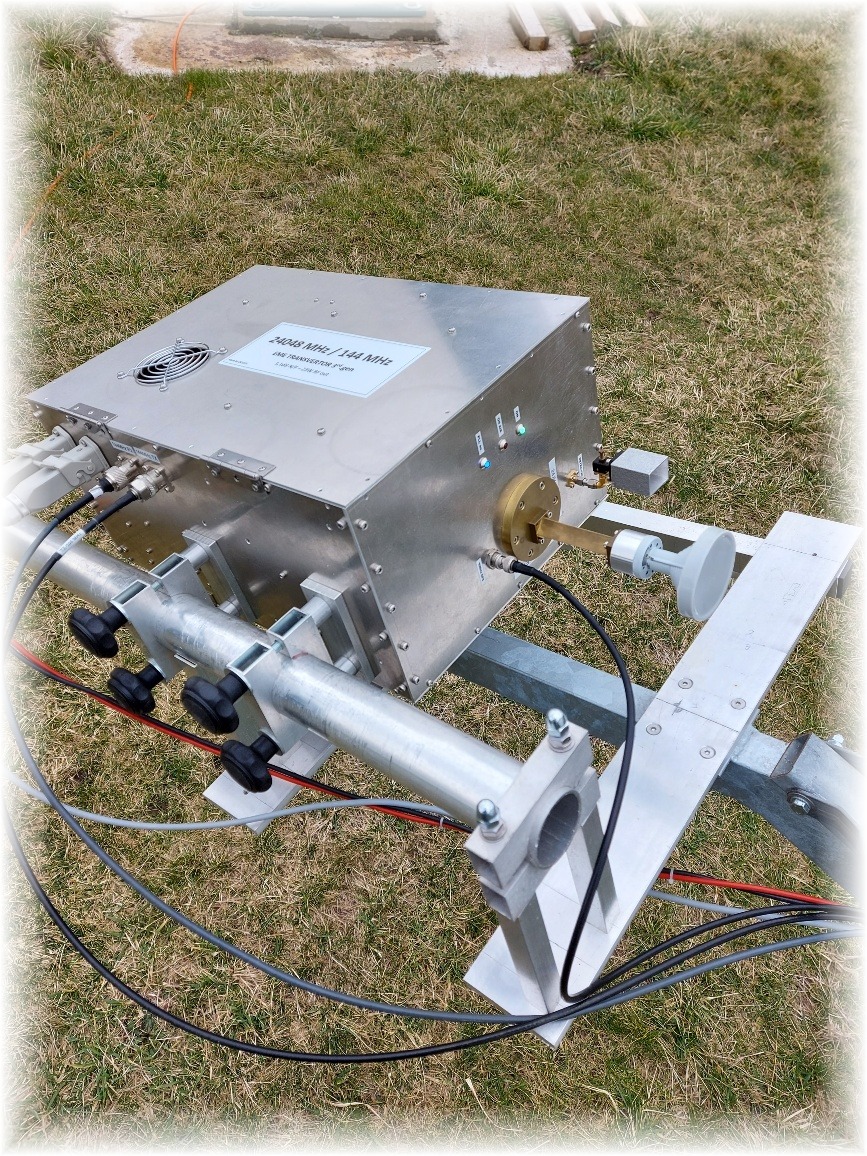

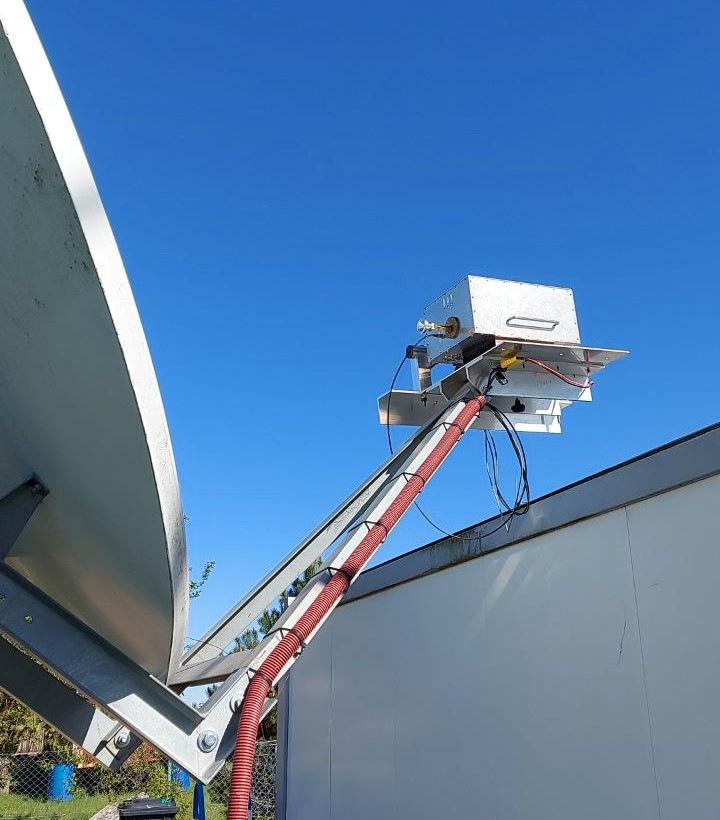

TRV in dish feed point
|
