10 GHz - setup
TRX: -
TRX IC9100 144 MHz IF - TRV 10 GHz DB6NT- 4G
- 220mW 10368 and 10450 MHz
VLNA: - DU3T 0,7dB N/F
SSPA: -
OK2AQ - 52W RF out

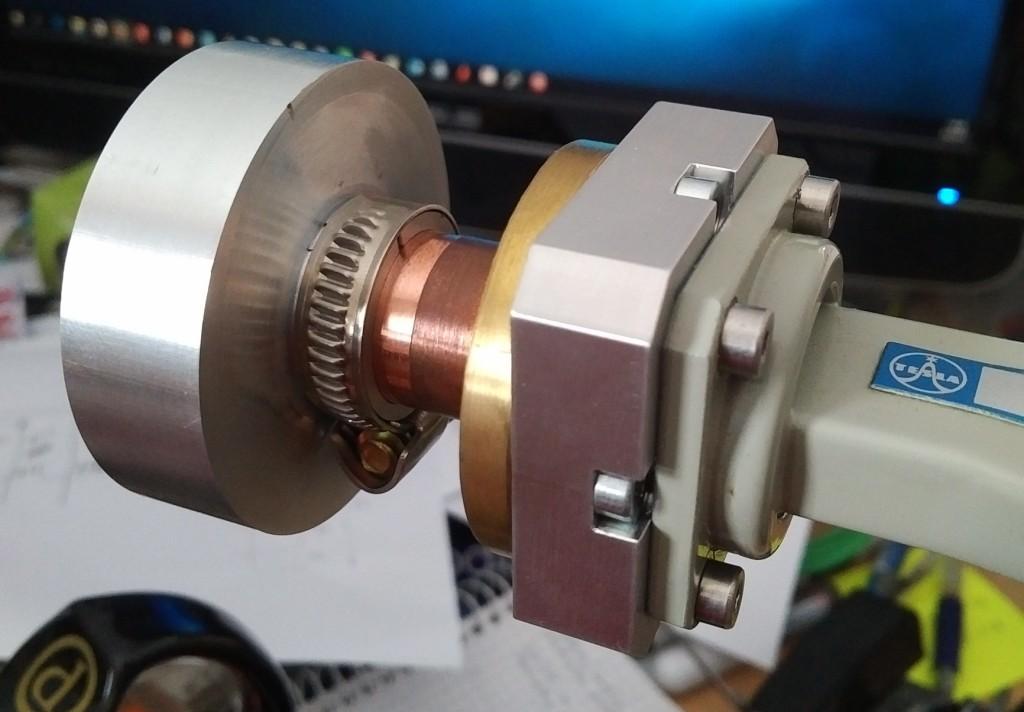

Feed horn:
05/2017 - Kumar ring
180cm PF dish - EME expeditions
09/2019 - Prodelin upgraded feed 240cm offset
F/D 0,8 - Home QTH
09/2020 - Channel Master offset dish F/D 0,6
- 240cm with original feed horn - Home QTH
Antenna:
New
offset dish 2,4m
Offset dish 2,4 m
Prodelin

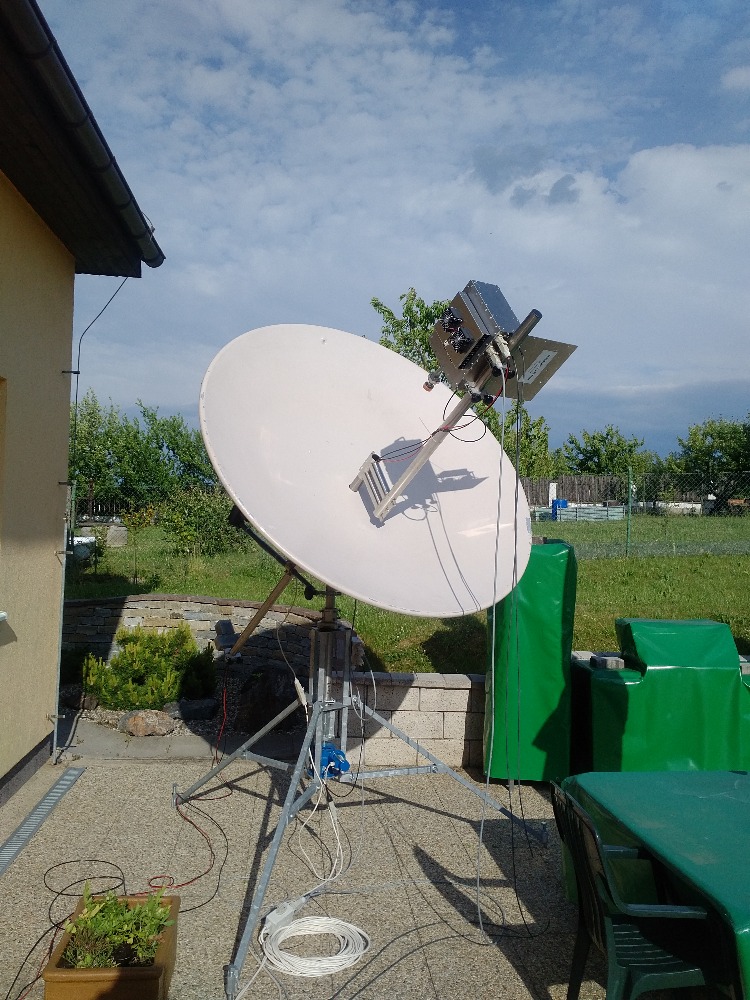

Prime focus 1,8 m
portable setup

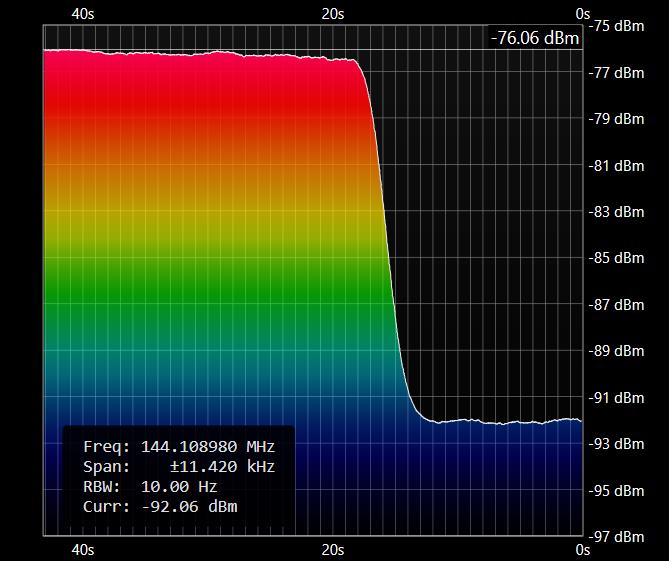

30/04/2024 - RX performance of home QTH system with
2,4m offset dish
SN/CS = 16,66dB by 138-SFU, GN/CS
= 4dB, MN/CS = 2,2dB
(blue sky, 20°C, 43% humidity, IR-29°,
el 46°)
For measurements I use SDRPlay with Console3 SW, which has a nice cntinuum extension. IF is 144 MHz.

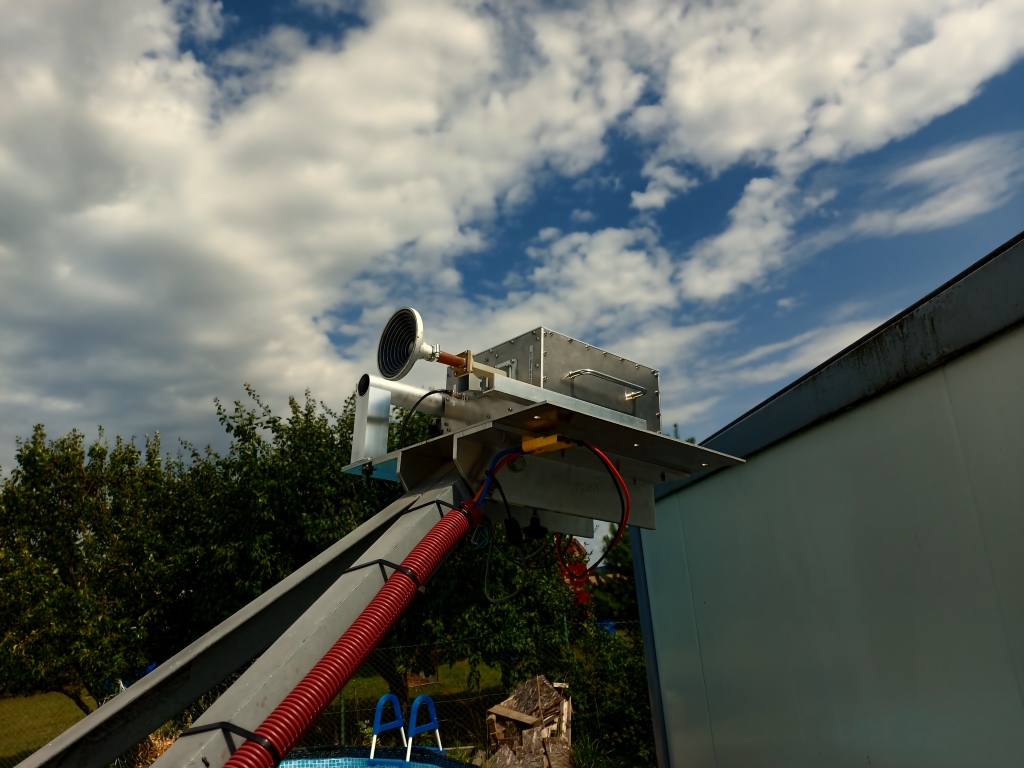

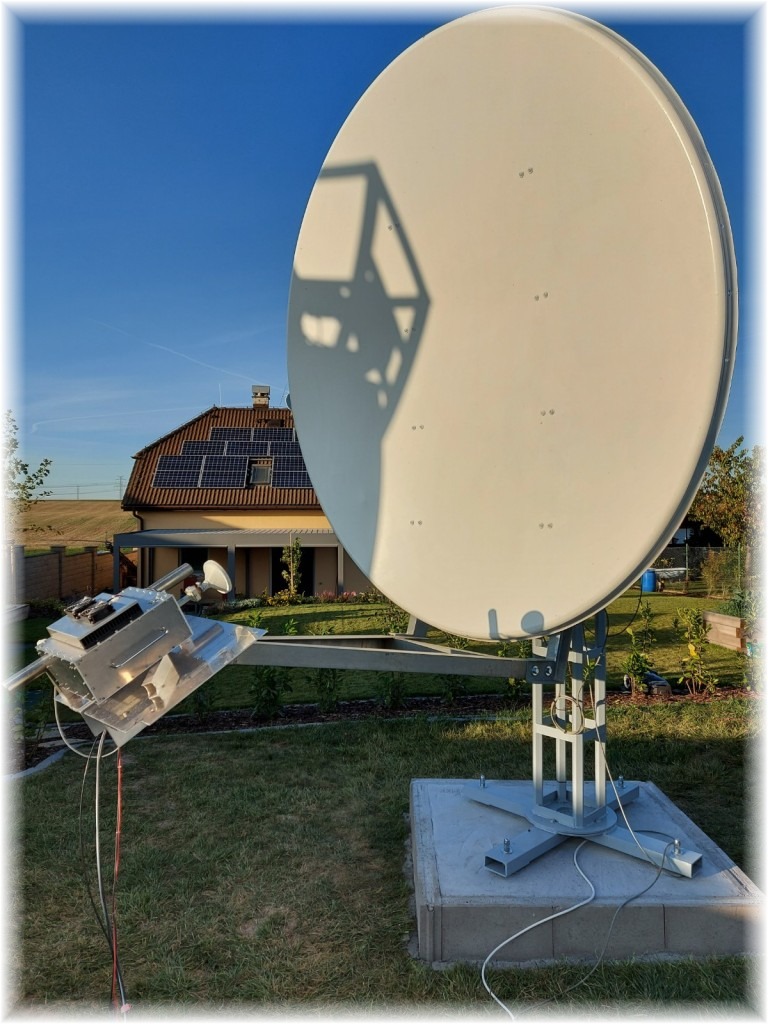

Here is a view of the TRV placed in the focal point of the dish. The original funnel with chokes for F/D 0,6 is used as feed
ARI EME contest - autumn part
ARRL EME
MW part 2019
MW offset dish 2,4m for 10 & 24 GHz
Prime focus 1,8 m
portable setup
First ever activation of Africa on 10 GHz
EME DUBUS 10 GHz -
06/2017
EME DUBUS 10 GHz - 05/2016
ARRL EME MW contest 09/2014
New 10 GHz TRV
NEW 52W SSPA
Presentation of OK2AQ - 52W SSPA 10 GHz

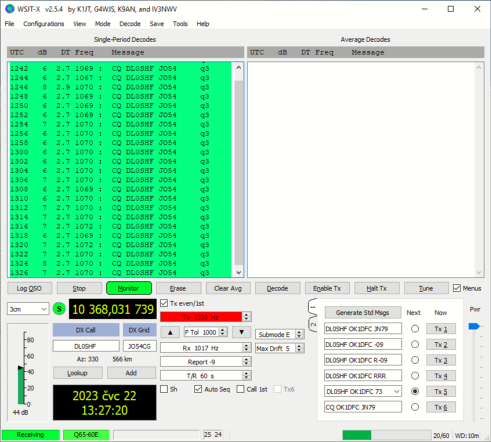

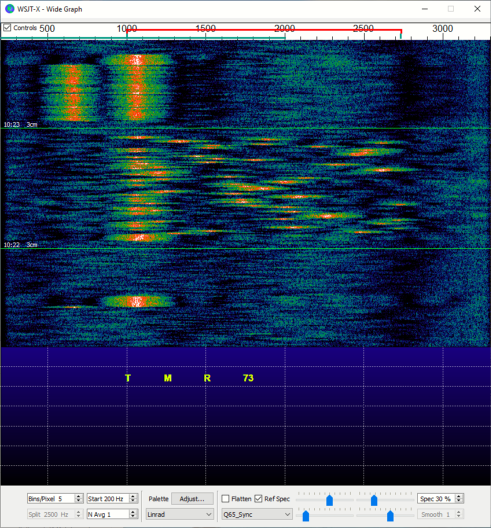

10 GHz EME beacon - DL0SHF
DL0SHF
mp3 - 10 GHz - 240 Hz spread CW
Beacon DL0SHF info
- PA0EHG
|
DXCC: |
| 1 |
OK |
Czech Republic |
|
2 |
UA3 |
European Russia |
|
3 |
OZ |
Denmark |
|
|
4 |
G |
England |
|
5 |
SP |
Poland |
|
6 |
HB9 |
Switzerland |
|
|
7 |
PA |
Netherlands |
|
8 |
YO |
Romania |
|
9 |
DL |
Germany |
|
|
10 |
W |
USA |
|
11 |
VE |
Canada |
|
12 |
JA |
Japan |
|
|
13 |
EA |
Spain |
|
14 |
EA9 |
Ceuta |
|
15 |
UB5 |
Ukraine |
|
|
16 |
VK |
Australia |
|
17 |
S5 |
Slovenia |
|
18 |
EA6 |
Balearic Ins. |
|
|
19 |
HA |
Hungary |
|
20 |
LX |
Luxembourg |
|
21 |
F |
France |
|
|
22 |
ES |
Estonia |
|
23 |
OE |
Austria |
|
24 |
OH |
Finland |
|
|
25 |
4U1 |
ITU Geneva |
|
26 |
ZS |
South Africa |
|
27 |
9A |
Croatia |
|
|
28 |
A21 |
Botswana |
|
29 |
PY |
Brazil |
|
30 |
I |
Italy |
|
|
31 |
CT |
Portugal |
|
32 |
SM |
Sweden |
|
33 |
UN |
Kazakhstan |
|
|
34 |
CX |
Uruguay |
|
35 |
HG |
Hungary |
|
36 |
TK |
Corsica |
|
|
37 |
BD |
China |
|
38 |
ON |
Belgium |
|
39 |
LZ |
Bulgaria |
|
|
40 |
OJ0 |
Market Reef |
|
41 |
GW |
Wales |
|
42 |
KH6 |
Hawaii |
|
|
43 |
GI |
Northern Ireland |
|
44 |
LU |
Argentina |
|
45 |
|
|
|
|
46 |
|
|
|
47 |
|
|
|
48 |
|
|
|
|
49 |
|
|
|
50 |
|
|
|
51 |
|
|
|
|
TOTAL: 44 DXCC entities 23.09.2024
|
|
|
|
|
TOTAL:
29 Fields
23.09.2024
|
|

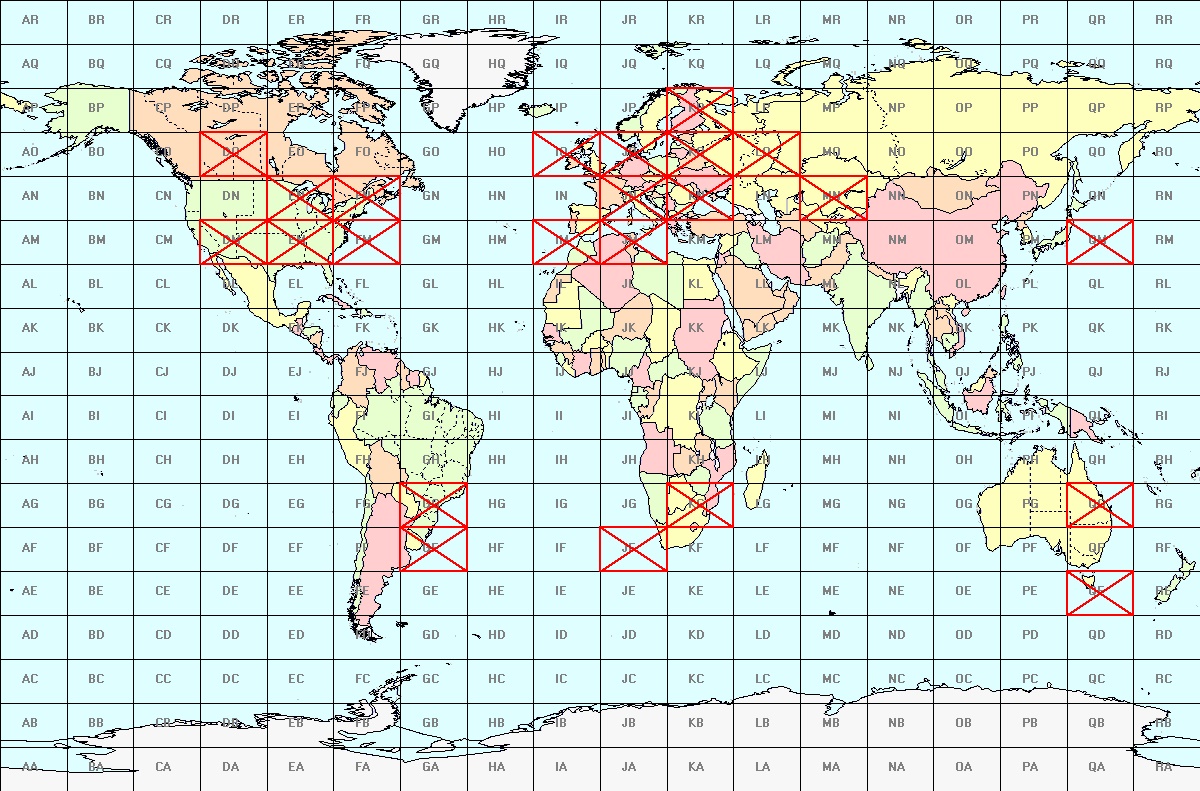

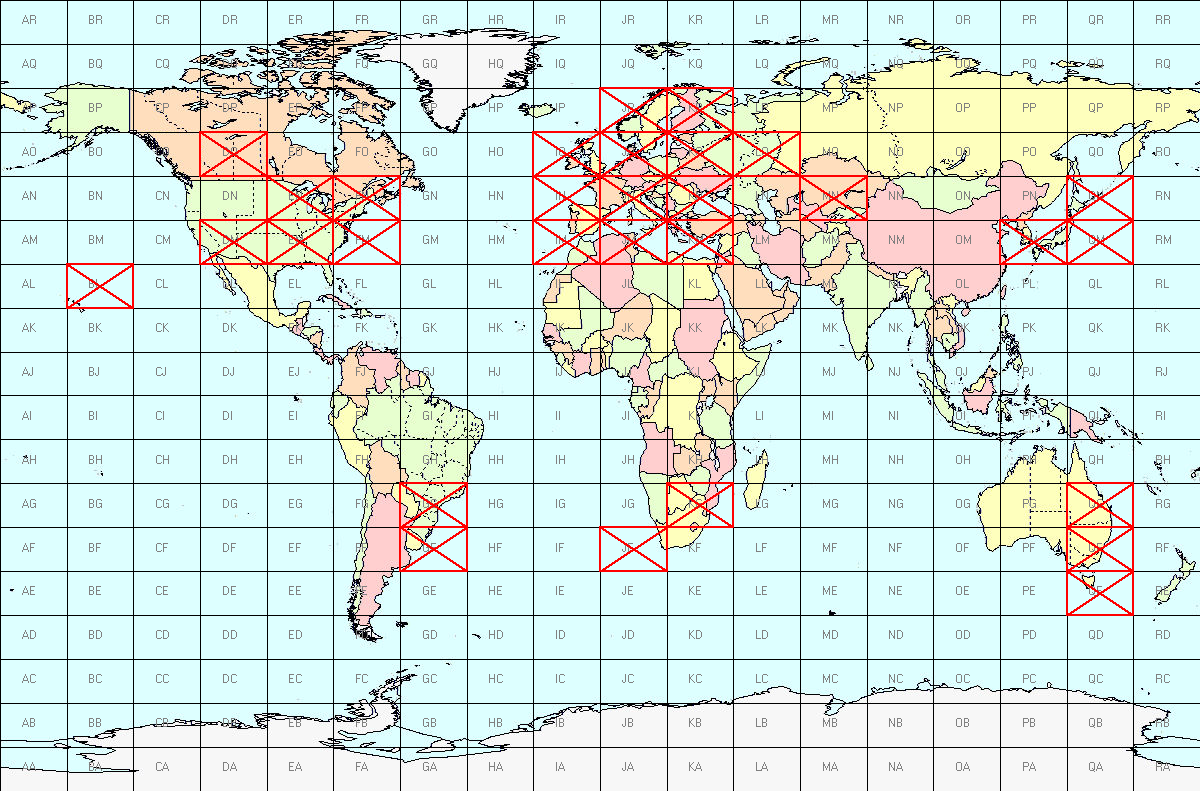

WAC:
CW
mode
References
worked for the WAC 10368 award by OK1DFC on 3 cm.
DATA OF FIRST QSO
| AFRICA |
A21EME |
25/10/2019 |
|
ASIA |
JA1WQF |
29/05/2022 |
|
AUSTRALIA |
VK3NX |
18/04/2021 |
|
EUROPE |
OK1KIR |
13/10/2014 |
|
N. AMERICA |
VE4MA |
25/06/2017 |
|
S. AMERICA |
PY2BS |
25/10/2019 |
|
CW - WAC accomplished at 29/05/2022
|
|
|
WAC:
JT65
mode
References
worked for the WAC 10368 award by OK1DFC on 3 cm.
DATA OF FIRST QSO
| AFRICA |
A21EME |
25/10/2019 |
|
ASIA |
JA1WQF |
25/06/2017 |
|
AUSTRALIA |
VK7MO |
21/05/2018 |
|
EUROPE |
OK1KIR |
13/10/2014 |
|
N. AMERICA |
WA3LBI |
25/06/2017 |
|
S. AMERICA |
PY2BS |
25/10/2019 |
|
JT
- WAC accomplished at 25/10/2019
|
|
| 1 |
AK |
Alaska |
|
|
|
|
| 2 |
AL |
Alabama |
|
|
|
|
| 3 |
AR |
Arkansas |
|
|
|
|
| 4 |
AZ |
Arizona |
N1AV |
22/09/2024 |
06:10 |
QSL |
| 5 |
CA |
California |
WA6PY |
25/06/2017 |
17:19 |
QSL |
| 6 |
CO |
Colorado |
|
|
|
|
| 7 |
CT |
Connecticut |
|
|
|
|
| 8 |
DE |
Delaware |
|
|
|
|
| 9 |
FL |
Florida |
|
|
|
|
| 10 |
GA |
Georgia |
|
|
|
|
| 11 |
HI |
Hawaii |
N1V |
14/03/2024
|
21:30 |
QSL |
| 12 |
IA |
Iowa |
KM0T |
14/03/2024 |
21:50 |
QSL |
| 13 |
ID |
Idaho |
|
|
|
|
| 14 |
IL |
Illinois |
|
|
|
|
| 15 |
IN |
Indiana |
|
|
|
|
| 16 |
KS |
Kansas |
N0OY |
15/03/2024 |
|
QSL |
| 17 |
KY |
Kentucky |
|
|
|
|
| 18 |
LA |
Louisiana |
|
|
|
|
| 19 |
MA |
Massachusetts |
|
|
|
|
| 20 |
MD |
Maryland |
|
|
|
|
| 21 |
ME |
MAINE |
|
|
|
|
| 22 |
MI |
Michigan |
|
|
|
|
| 23 |
MN |
Minnesota |
KN0WS |
22/09/2019 |
07:52 |
QSL |
| 24 |
MO |
Missouri |
|
|
|
|
| 25 |
MS |
Mississippi |
|
|
|
|
| 26 |
MT |
Montana |
|
|
|
|
| 27 |
NC |
North
Carolina |
|
|
|
|
| 28 |
ND |
North
Dakota |
|
|
|
|
| 29 |
NE |
Nebraska |
|
|
|
|
| 30 |
NH |
New
Hampshire |
|
|
|
|
| 31 |
NJ |
New
Jersey |
K2UYH |
05/09/2017 |
02:01 |
QSL |
| 32 |
NM |
New
Mexico |
|
|
|
|
| 33 |
NV |
Nevada |
|
|
|
|
| 34 |
NY |
New
York |
|
|
|
|
| 35 |
OK |
Ohio |
|
|
|
|
| 36 |
OK |
Oklahoma |
|
|
|
|
| 37 |
OR |
Oregon |
|
|
|
|
| 38 |
PA |
Pennsylvania |
WA3LBI |
25/06/2017 |
14:40 |
QSL |
| 39 |
RI |
District
of Columbia |
|
|
|
|
| 40 |
SC |
South
Carolina |
|
|
|
|
| 41 |
SD |
South
Dakota |
|
|
|
|
| 42 |
TN |
Tennessee |
|
|
|
|
| 43 |
TX |
Texas |
W5LUA |
09/10/2017 |
03:43 |
QSL |
| 44 |
UT |
Utah |
|
|
|
|
| 45 |
VA |
Virginia |
|
|
|
|
| 46 |
VT |
Vermont |
|
|
|
|
| 47 |
WA |
Washington |
|
|
|
|
| 48 |
WI |
Wisconsin |
WA9FWD |
22/09/2019 |
09:40 |
QSL |
| 49 |
WV |
West
Virginia |
|
|
|
|
| 50 |
WY |
Wyoming |
|
|
|
|
| Total
worked states #10 |
|
|
Other Awards
|
 |
 |
|
|
|
|
|
ARRL EME 2019 - 1st 10 GHz |
ARI EME 2020-spring - 1st |
ARI EME 2020-autumn - 2nd |
ARI EME 2020 - 1st |
|
|
|
|
|
